Front plate cpl

M2.205.130S/03

- Tên SP:  Cần vẩy

- HDM-Nr: MV.022.609

- Ứng dụng: Máy in Heidelberg SM74

- Vị trí sử dụng:  TKS M2.205.100 -003/02 = 19

- Xuất xứ: Heidelberg - Germany

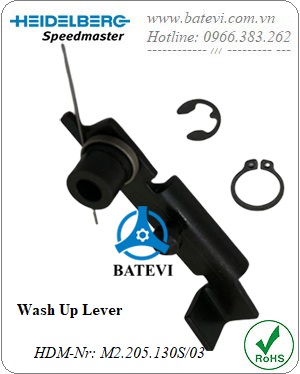

Wash Up Lever M2.205.130S/03
