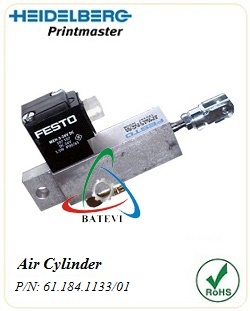

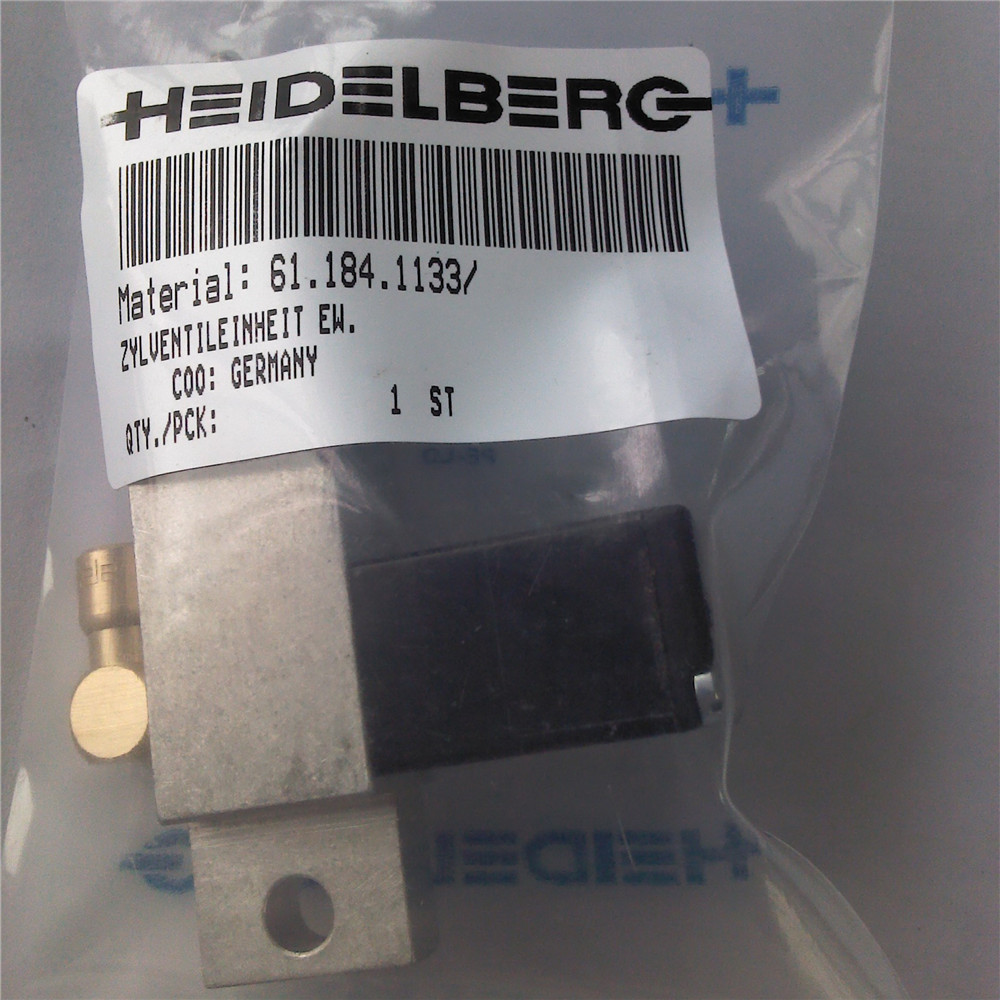

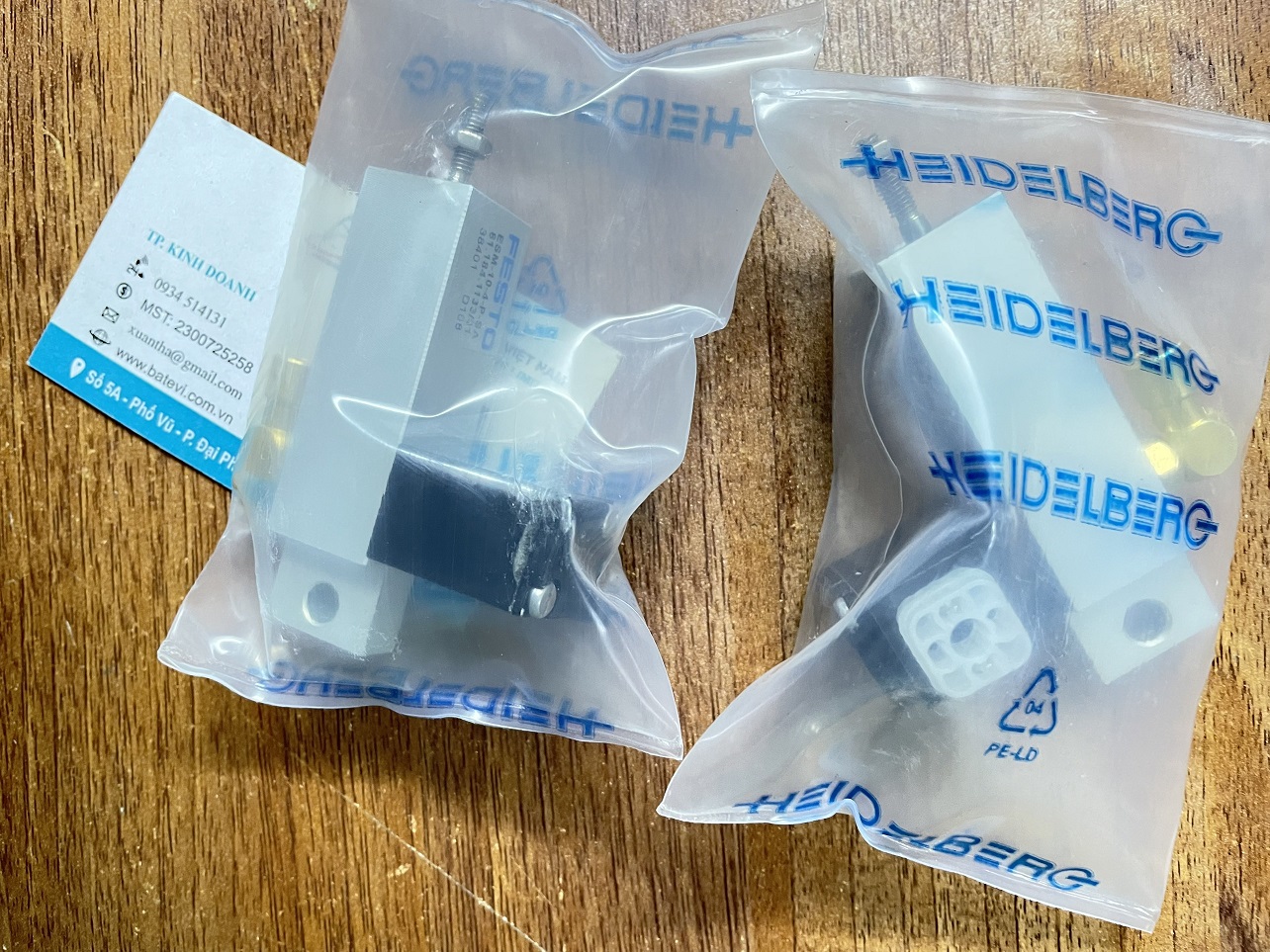

Cylinder valve unit

61.184.1133

- Tên SP: Xy lanh khí

- HDM-Nr: 61.184.1133/01

- Ứng dụng: Máy in Heidelberg SM74

- Vị trí sử dụng: TKS MS.034.000 -017/01  = 1Y10

- Hãng SX: Heidelberg - Germany

00.471.0141 air hose

00.580.4309 coupling

00.580.3991 Hose throttle

M4.334.009 Pneumatic cylinder

00.471.0141 Compressed-air hose

92.184.1012 Gasket

00.471.0141 Compressed-air hose

M4.335.002 Cylinder/valve unit

61.184.1133 Cylinder/valve unit
