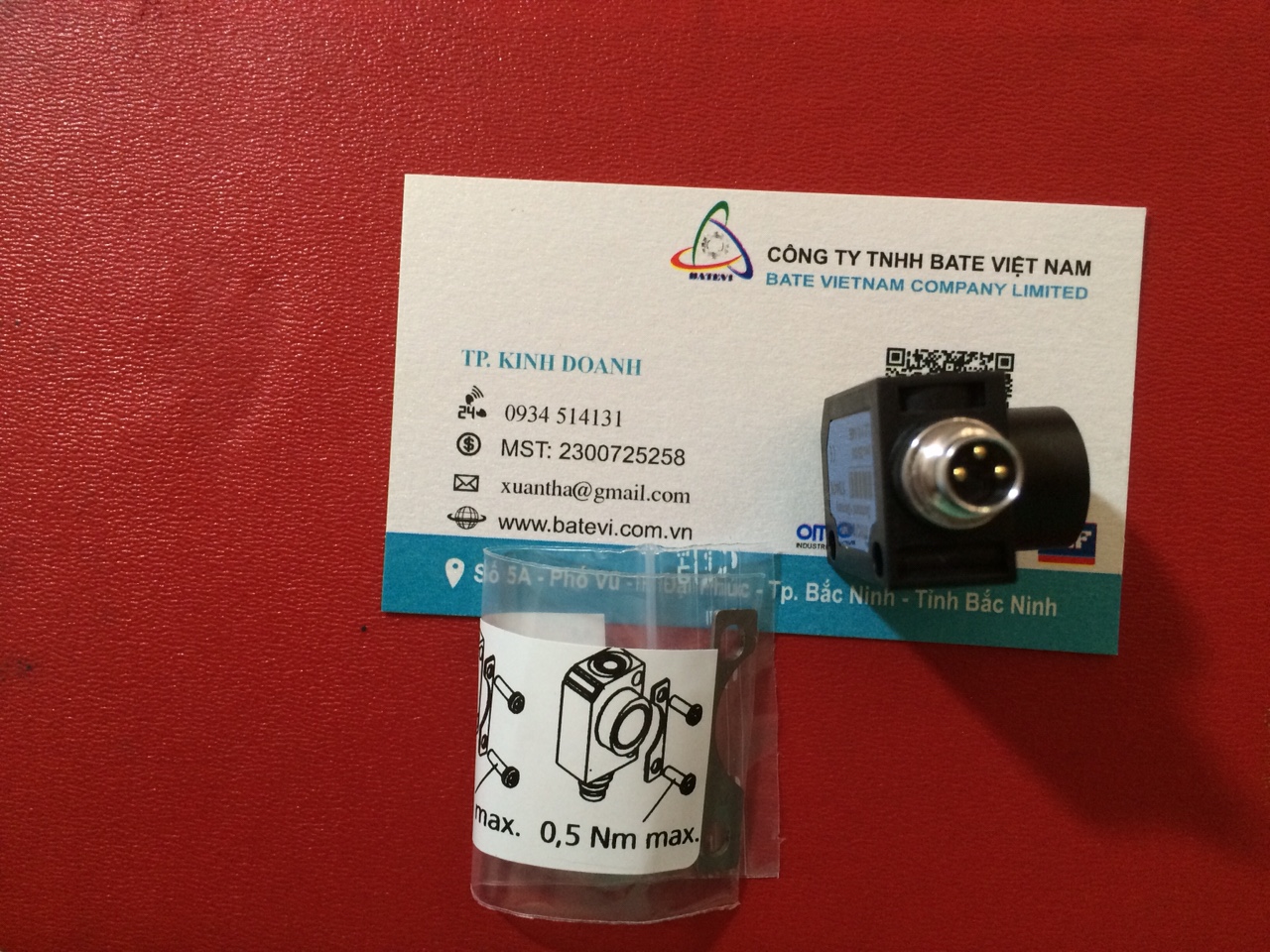

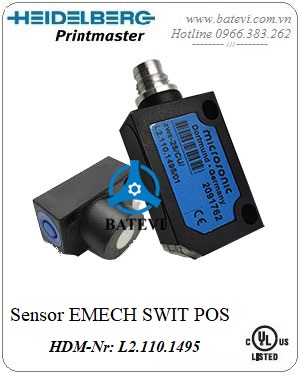

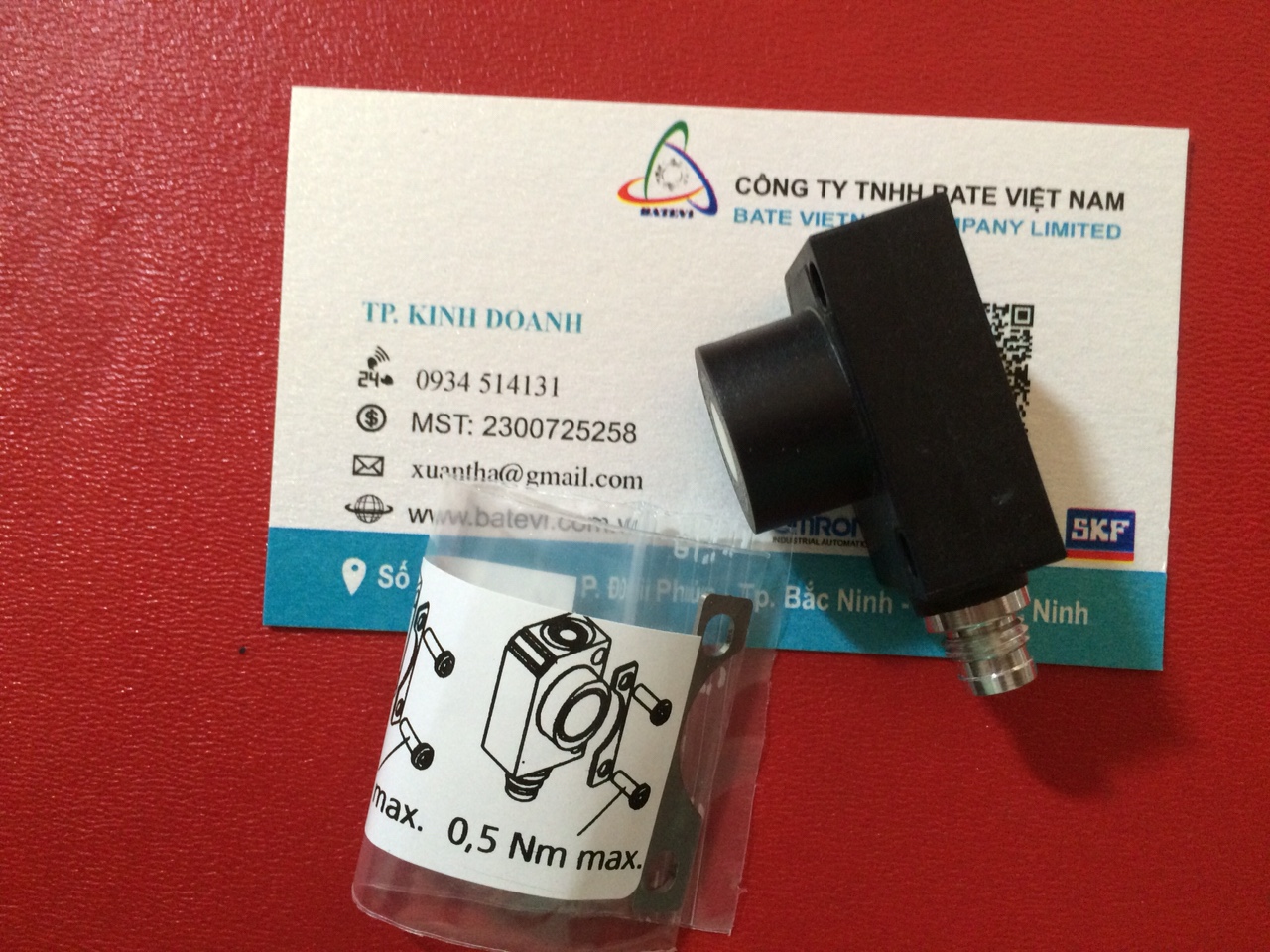

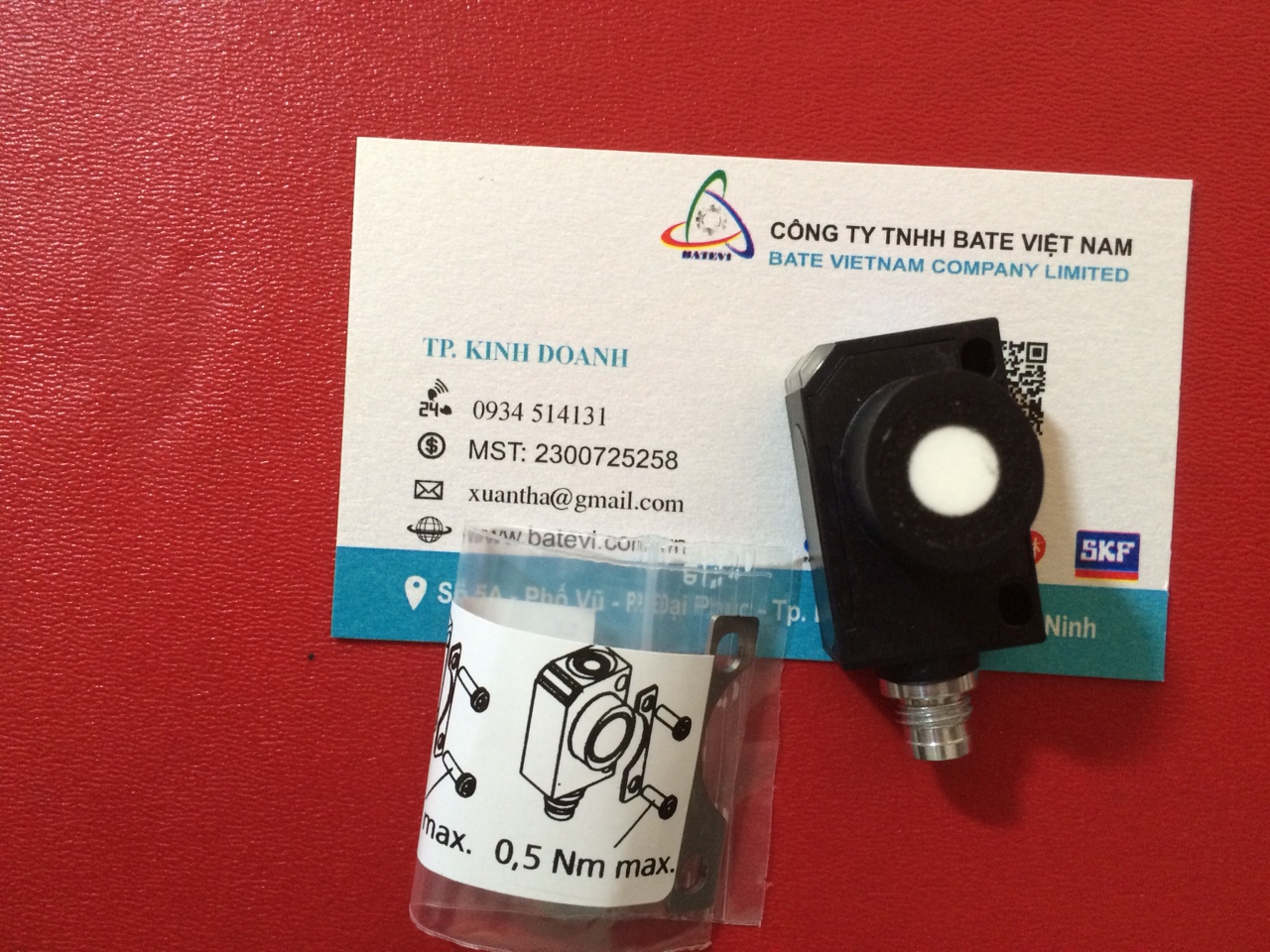

Sensor EMECH SWIT POS L2.110.1495

- Tên SP: Cảm biến

- HDM-Nr: L2.110.1495

- OEM: ZWS-25/CU/

- Kết nối: Giắc cắm M8, 3 pins

- Ứng dụng: Heidelberg SM102, CD102

- Vị trí sử dụng: TKS F4.016.600 -007/06 - 60B12B4/60B12D4

- Xuất xứ: Heidelberg - Germany

Cảm biến L2.110.1495

Sensor L2.110.1495

Cảm biến máy in L2.110.1495

Heidelberg L2.110.1495

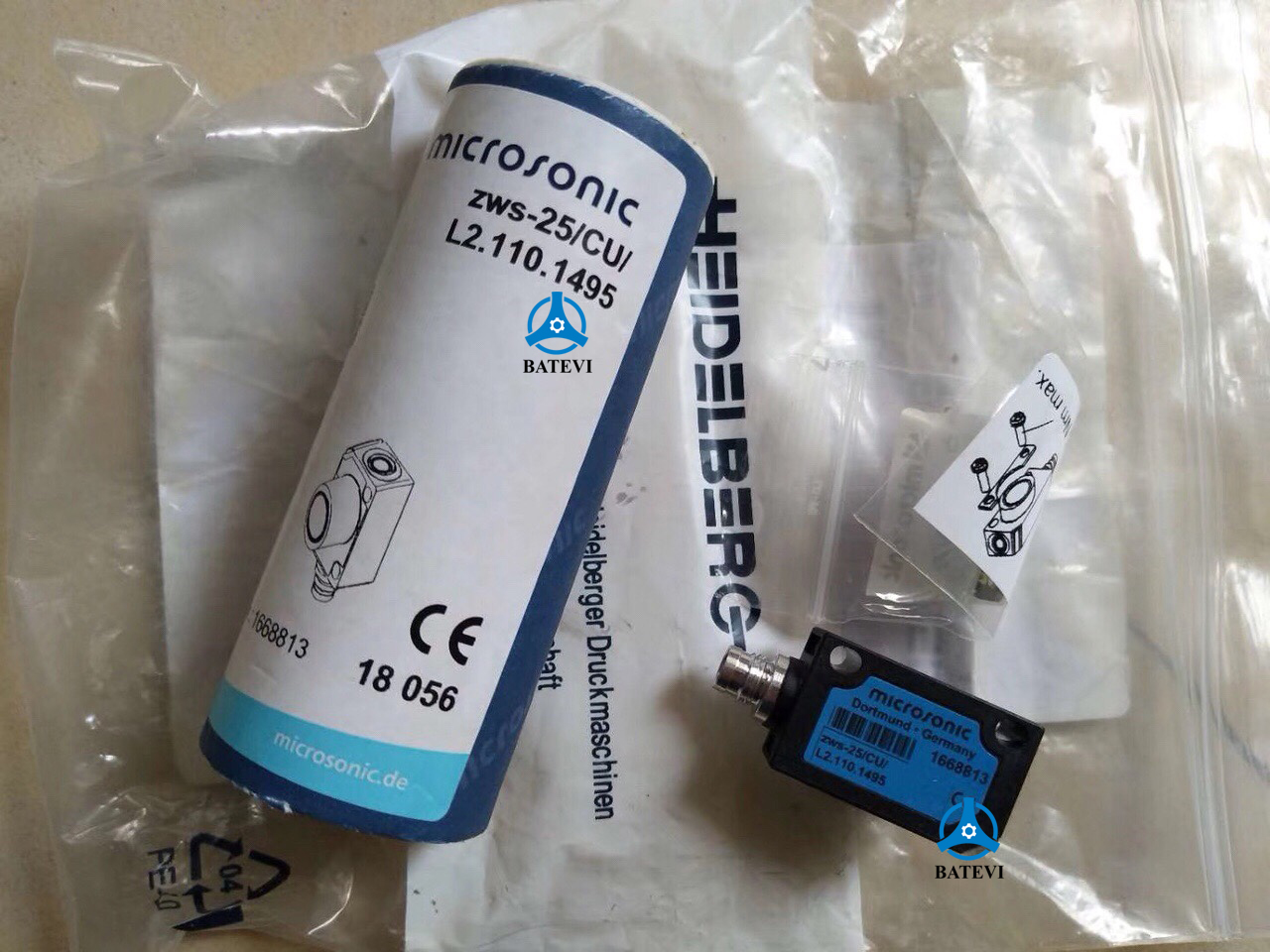

Microsonic: ZWS-25/CU/

Cảm biến heidelberg L2.110.1495, heidelberg cd102, cd102, sm102.
