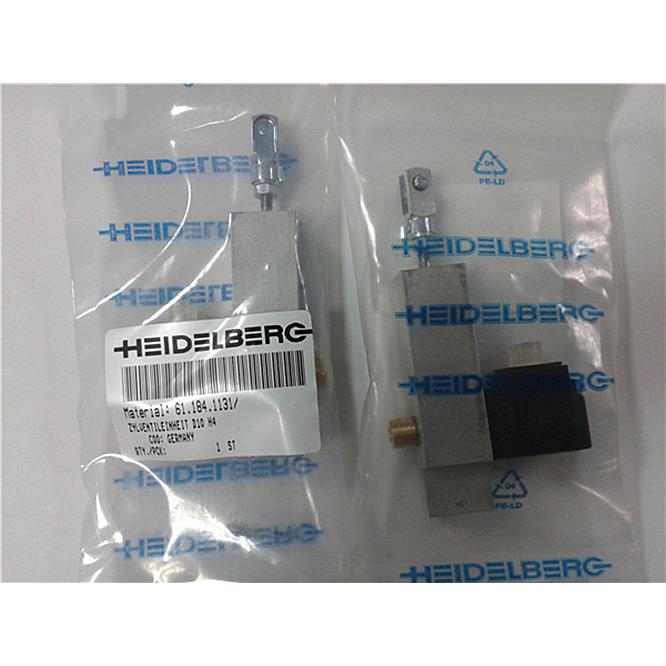

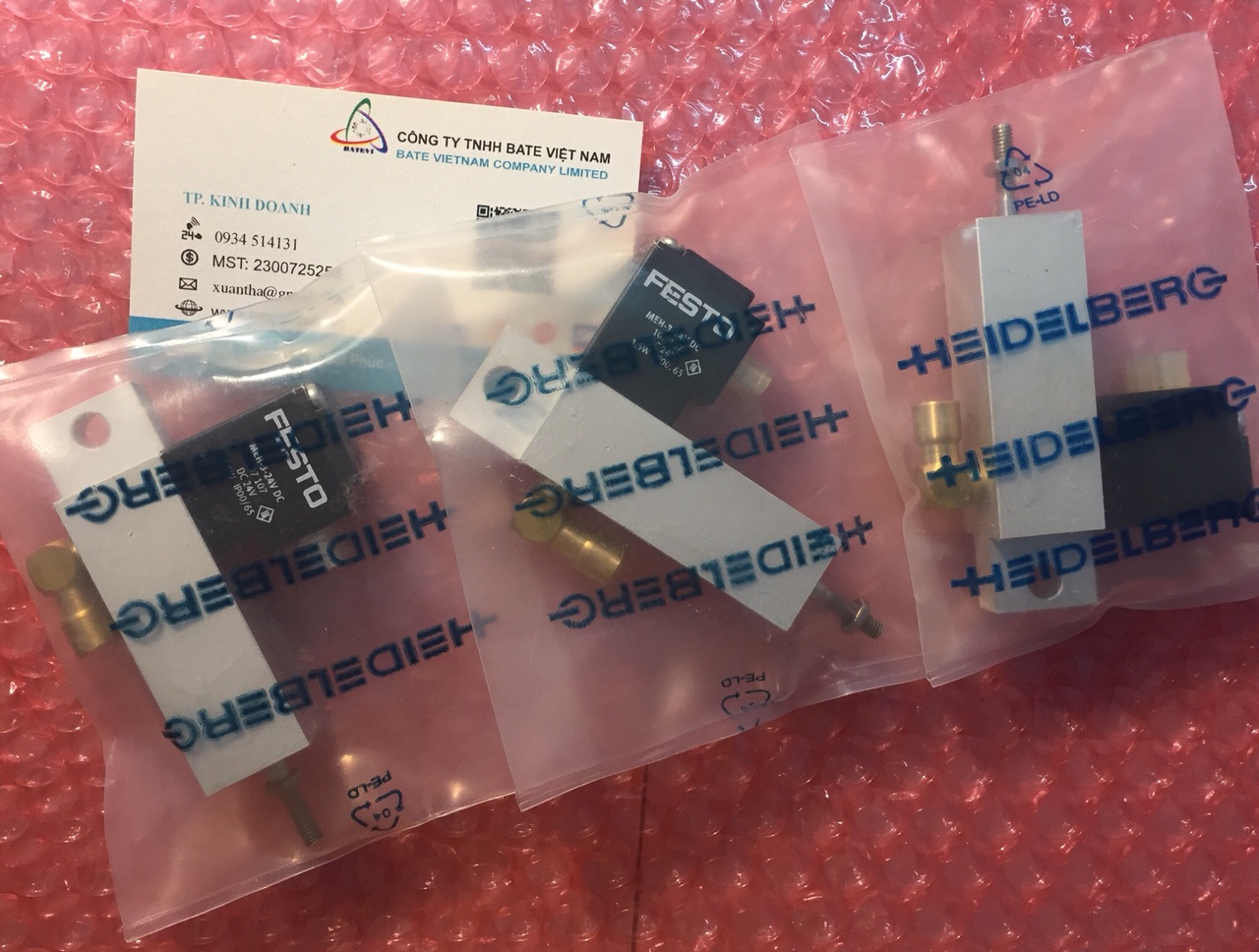

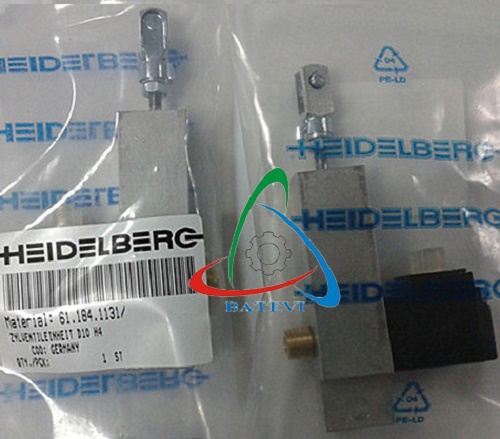

Xy lanh ép in 61.184.1131

Xy lanh khí cho máy in Heidelberg

Tên SP: Xy lanh khí

Mã SP: 61.184.1131/

Mã cuộn hút: MEH-3-24vdc

Nguồn cấp: DC24V

Công suất cuộn hút: 1.5W

Ứng dụng: Heidelberg SM102/CD102

Hãng SX: Festo - Germany

---------------------------------------------------------------------------------------------------------------------------

SẢN PHẨM CÙNG LOẠI

---------------------------------------------------------------------------------------------------------------------------

Cylinder/valve unit D10 H4
