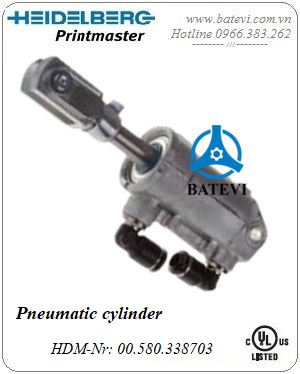

Pneumatic cylinder 00.580.3387

- Tên SP: Xy lanh khí

- HDM-Nr: 00.580.3387/03

- Áp lực: 10 bar

- Ứng dụng: Heidelberg CD102, SM102, PM74, XL105

- Vị trí sử dụng: TKS 71.010.300 -002/14-17

- Xuất xứ: Heidelberg - Germany

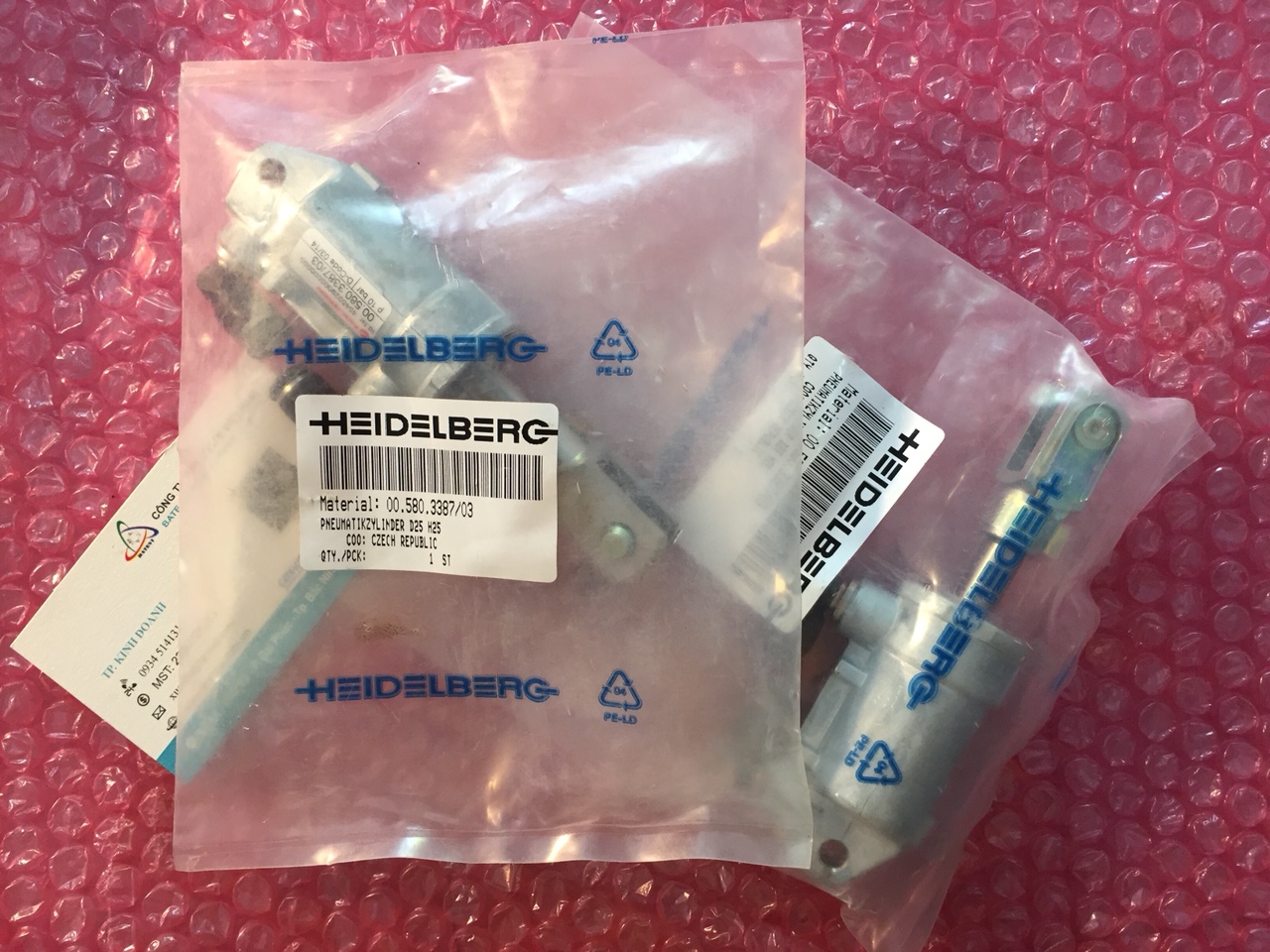

Xy lanh khí Heidelberg: 00.580.3387/03,

Cylinder 00.580.3387/03,

71.010.366 Pin DS

71.010.372 Bearing bolt

00.580.1094 Forkhead cpl

04.012.088 Compression spring

91.010.360F Sleeve cpl

71.010.369F Spring rod cpl

71.010.369 Spring rod
