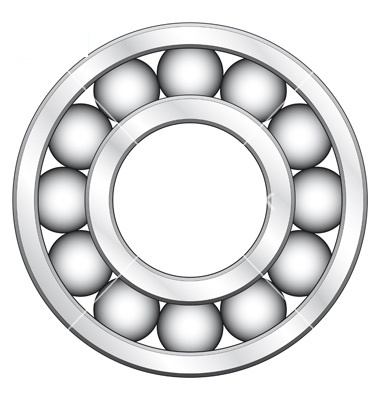

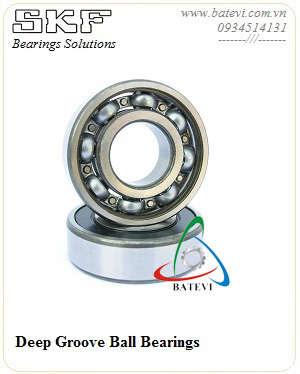

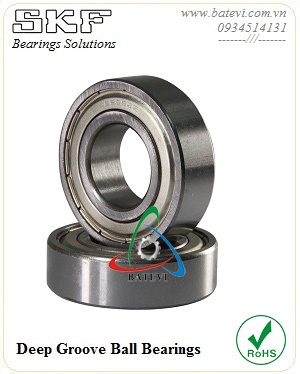

VÒNG BI CẦU MỘT DÃY Deep groove ball bearings, single row 单列深沟球轴承 |
||||||||
Kích thước vòng bi Principal dimensions (mm) |
Tải trọng cơ bản Basic load ratings (kN) |
Tốc độ vòng bi Speed ratings (r/min) |
Mã số vòng bi Designation (Bearings Numbers) |
Đơn giá Unit Prices (VND) |
||||
Động dynamic |
Tĩnh static |
Tham khảo Reference speed |
Tới hạn Limiting speed |
|||||
d | D | B | C | C0 | * SKF Explorer bearing |
3 | 10 | 4 | 0.54 | 0.18 | 130000 | 80000 | 623 | |
3 | 10 | 4 | 0.54 | 0.18 | 130000 | 80000 | 623-Z | |
3 | 10 | 4 | 0.54 | 0.18 | 130000 | 63000 | 623-2Z | |
3 | 10 | 4 | 0.54 | 0.18 | - | 40000 | 623-RS1 | |
3 | 10 | 4 | 0.54 | 0.18 | - | 40000 | 623-2RS1 | |
4 | 9 | 2.5 | 0.54 | 0.18 | 140000 | 85000 | 618/4 | |
4 | 9 | 3.5 | 0.54 | 0.18 | 140000 | 70000 | 628/4-2Z | |
4 | 9 | 4 | 0.54 | 0.18 | 140000 | 70000 | 638/4-2Z | |
4 | 11 | 4 | 0.715 | 0.232 | 130000 | 63000 | 619/4-2Z | |
4 | 11 | 4 | 0.715 | 0.232 | 130000 | 80000 | 619/4 | |
4 | 12 | 4 | 0.806 | 0.28 | 120000 | 75000 | 604 | |
4 | 12 | 4 | 0.806 | 0.28 | 120000 | 60000 | 604-Z | |
4 | 12 | 4 | 0.806 | 0.28 | 120000 | 60000 | 604-2Z | |
4 | 13 | 5 | 0.936 | 0.29 | 110000 | 53000 | 624-2Z | |
4 | 13 | 5 | 0.936 | 0.29 | 110000 | 67000 | 624-Z | |
4 | 13 | 5 | 0.936 | 0.29 | 110000 | 67000 | 624 | |
4 | 16 | 5 | 1.11 | 0.38 | 95000 | 60000 | 634 | |
4 | 16 | 5 | 1.11 | 0.38 | 95000 | 60000 | 634-Z | |
4 | 16 | 5 | 1.11 | 0.38 | 95000 | 48000 | 634-2Z | |
4 | 16 | 5 | 1.11 | 0.38 | - | 28000 | 634-RS1 | |
4 | 16 | 5 | 1.11 | 0.38 | - | 28000 | 634-2RS1 | |
4 | 16 | 5 | 1.11 | 0.38 | 95000 | 60000 | 634-RZ | |
4 | 16 | 5 | 1.11 | 0.38 | 95000 | 48000 | 634-2RZ |
5 | 11 | 3 | 0.637 | 0.255 | 120000 | 75000 | 618/5 | |
5 | 11 | 4 | 0.637 | 0.255 | 120000 | 60000 | 628/5-2Z | |
5 | 11 | 5 | 0.637 | 0.255 | 120000 | 60000 | 638/5-2Z | |
5 | 13 | 4 | 0.884 | 0.34 | 110000 | 53000 | 619/5-2Z | |
5 | 13 | 4 | 0.884 | 0.34 | 110000 | 67000 | 619/5 | |
5 | 16 | 5 | 1.14 | 0.38 | 95000 | 60000 | 625 * | |
5 | 16 | 5 | 1.14 | 0.38 | 95000 | 60000 | 625-Z * | |
5 | 16 | 5 | 1.14 | 0.38 | 95000 | 48000 | 625-2Z * | |
5 | 19 | 6 | 2.34 | 0.95 | 80000 | 50000 | 635-Z * | |
5 | 19 | 6 | 2.34 | 0.95 | 80000 | 40000 | 635-2Z * | |
5 | 19 | 6 | 2.34 | 0.95 | 80000 | 50000 | 635-RZ * | |
5 | 19 | 6 | 2.34 | 0.95 | 80000 | 40000 | 635-2RZ * | |
5 | 19 | 6 | 2.34 | 0.95 | - | 24000 | 635-RS1 * | |
5 | 19 | 6 | 2.34 | 0.95 | - | 24000 | 635-2RS1 * | |
5 | 19 | 6 | 2.34 | 0.95 | 80000 | 50000 | 635 * | |
6 | 13 | 3.5 | 0.884 | 0.345 | 110000 | 67000 | 618/6 | |
6 | 13 | 5 | 0.884 | 0.345 | 110000 | 53000 | 628/6-2Z | |
6 | 15 | 5 | 1.24 | 0.475 | 100000 | 50000 | 619/6-2Z | |
6 | 15 | 5 | 1.24 | 0.475 | 100000 | 63000 | 619/6 | |
6 | 19 | 6 | 2.34 | 0.95 | 80000 | 50000 | 626 * | |
6 | 19 | 6 | 2.34 | 0.95 | - | 24000 | 626-2RSH * | |
6 | 19 | 6 | 2.34 | 0.95 | - | 24000 | 626-RSH * | |
6 | 19 | 6 | 2.34 | 0.95 | 80000 | 40000 | 626-2RSL * | |
6 | 19 | 6 | 2.34 | 0.95 | 80000 | 50000 | 626-RSL * | |
6 | 19 | 6 | 2.34 | 0.95 | 80000 | 50000 | 626-Z * | |
6 | 19 | 6 | 2.34 | 0.95 | 80000 | 40000 | 626-2Z * |
7 | 14 | 3.5 | 0.956 | 0.4 | 100000 | 63000 | 618/7 | |
7 | 14 | 5 | 0.956 | 0.4 | 100000 | 50000 | 628/7-2Z | |
7 | 17 | 5 | 1.48 | 0.56 | 90000 | 45000 | 619/7-2Z | |
7 | 17 | 5 | 1.48 | 0.56 | 90000 | 56000 | 619/7 | |
7 | 19 | 6 | 2.34 | 0.95 | 85000 | 53000 | 607 * | |
7 | 19 | 6 | 2.34 | 0.95 | 85000 | 43000 | 607-2Z * | |
7 | 19 | 6 | 2.34 | 0.95 | 85000 | 53000 | 607-Z * | |
7 | 19 | 6 | 2.34 | 0.95 | 85000 | 53000 | 607-RSL * | |
7 | 19 | 6 | 2.34 | 0.95 | 85000 | 43000 | 607-2RSL * | |
7 | 19 | 6 | 2.34 | 0.95 | - | 24000 | 607-RSH * | |
7 | 19 | 6 | 2.34 | 0.95 | - | 24000 | 607-2RSH * | |
7 | 22 | 7 | 3.45 | 1.37 | - | 22000 | 627-RSH * | |
7 | 22 | 7 | 3.45 | 1.37 | - | 22000 | 627-2RSH * | |
7 | 22 | 7 | 3.45 | 1.37 | 70000 | 36000 | 627-2RSL * | |
7 | 22 | 7 | 3.45 | 1.37 | 70000 | 45000 | 627-RSL * | |
7 | 22 | 7 | 3.45 | 1.37 | 70000 | 45000 | 627-Z * | |
7 | 22 | 7 | 3.45 | 1.37 | 70000 | 36000 | 627-2Z * | |
7 | 22 | 7 | 3.45 | 1.37 | 70000 | 45000 | 627 * | |
8 | 16 | 4 | 1.33 | 0.57 | 90000 | 56000 | 618/8 | |
8 | 16 | 5 | 1.33 | 0.57 | 90000 | 45000 | 628/8-2Z | |
8 | 16 | 5 | 1.33 | 0.57 | - | 26000 | 628/8-2RS1 | |
8 | 16 | 6 | 1.33 | 0.57 | 90000 | 45000 | 638/8-2Z | |
8 | 19 | 6 | 1.9 | 0.735 | 80000 | 40000 | 619/8-2Z | |
8 | 19 | 6 | 1.9 | 0.735 | 80000 | 50000 | 619/8 | |
8 | 19 | 6 | 1.9 | 0.735 | - | 24000 | 619/8-2RS1 | |
8 | 19 | 6 | 2.34 | 0.95 | 85000 | 43000 | 607/8-2Z * | |
8 | 19 | 6 | 2.34 | 0.95 | 85000 | 53000 | 607/8-Z * | |
8 | 22 | 7 | 3.45 | 1.37 | 75000 | 48000 | 608-Z * | |
8 | 22 | 7 | 3.45 | 1.37 | 75000 | 38000 | 608-2Z * | |
8 | 22 | 7 | 3.45 | 1.37 | 75000 | 38000 | 608-2Z/C3WT * | |
8 | 22 | 7 | 3.45 | 1.37 | 75000 | 48000 | 608-RSL * | |
8 | 22 | 7 | 3.45 | 1.37 | 75000 | 38000 | 608-2RSL * | |
8 | 22 | 7 | 3.45 | 1.37 | - | 22000 | 608-RSH * | |
8 | 22 | 7 | 3.45 | 1.37 | - | 22000 | 608-2RSH * | |
8 | 22 | 7 | 3.45 | 1.37 | 75000 | 48000 | 608 * | |
8 | 22 | 11 | 3.45 | 1.37 | - | 22000 | 630/8-2RS1 | |
8 | 24 | 8 | 3.9 | 1.66 | 63000 | 40000 | 628 * | |
8 | 24 | 8 | 3.9 | 1.66 | - | 19000 | 628-RS1 * | |
8 | 24 | 8 | 3.9 | 1.66 | - | 19000 | 628-2RS1 * | |
8 | 24 | 8 | 3.9 | 1.66 | 63000 | 40000 | 628-RZ * | |
8 | 24 | 8 | 3.9 | 1.66 | 63000 | 32000 | 628-2RZ * | |
8 | 24 | 8 | 3.9 | 1.66 | 63000 | 32000 | 628-2Z * | |
8 | 24 | 8 | 3.9 | 1.66 | 63000 | 40000 | 628-Z * | |
8 | 28 | 9 | 4.62 | 1.96 | 60000 | 30000 | 638-2RZ | |
8 | 28 | 9 | 4.62 | 1.96 | 60000 | 38000 | 638-RZ | |
9 | 17 | 4 | 1.43 | 0.64 | 85000 | 53000 | 618/9 | |
9 | 17 | 5 | 1.43 | 0.64 | 85000 | 53000 | 628/9-Z | |
9 | 17 | 5 | 1.43 | 0.64 | 85000 | 43000 | 628/9-2Z | |
9 | 17 | 5 | 1.43 | 0.64 | - | 24000 | 628/9-2RS1 | |
9 | 20 | 6 | 2.08 | 0.865 | 80000 | 38000 | 619/9-2Z | |
9 | 20 | 6 | 2.08 | 0.865 | 80000 | 48000 | 619/9 | |
9 | 24 | 7 | 3.9 | 1.66 | 70000 | 43000 | 609 * | |
9 | 24 | 7 | 3.9 | 1.66 | 70000 | 43000 | 609-Z * | |
9 | 24 | 7 | 3.9 | 1.66 | 70000 | 34000 | 609-2Z * | |
9 | 24 | 7 | 3.9 | 1.66 | 70000 | 43000 | 609-RSL * | |
9 | 24 | 7 | 3.9 | 1.66 | 70000 | 34000 | 609-2RSL * | |
9 | 24 | 7 | 3.9 | 1.66 | - | 19000 | 609-2RSH * | |
9 | 24 | 7 | 3.9 | 1.66 | - | 19000 | 609-RSH * | |
9 | 26 | 8 | 4.75 | 1.96 | - | 19000 | 629-RSH * | |
9 | 26 | 8 | 4.75 | 1.96 | - | 19000 | 629-2RSH * | |
9 | 26 | 8 | 4.75 | 1.96 | 60000 | 30000 | 629-2RSL * | |
9 | 26 | 8 | 4.75 | 1.96 | 60000 | 38000 | 629-RSL * | |
9 | 26 | 8 | 4.75 | 1.96 | 60000 | 30000 | 629-2Z * | |
9 | 26 | 8 | 4.75 | 1.96 | 60000 | 38000 | 629-Z * | |
9 | 26 | 8 | 4.75 | 1.96 | 60000 | 38000 | 629 * | |
10 | 19 | 5 | 1.38 | 0.585 | - | 22000 | 61800-2RS1 | |
10 | 19 | 5 | 1.38 | 0.585 | 80000 | 48000 | 61800 | |
7 | 19 | 6 | 2.34 | 0.95 | - | 24000 | 607-RSH * | |
7 | 19 | 6 | 2.34 | 0.95 | - | 24000 | 607-2RSH * | |
7 | 22 | 7 | 3.45 | 1.37 | - | 22000 | 627-RSH * | |
7 | 22 | 7 | 3.45 | 1.37 | - | 22000 | 627-2RSH * | |
7 | 22 | 7 | 3.45 | 1.37 | 70000 | 36000 | 627-2RSL * | |
7 | 22 | 7 | 3.45 | 1.37 | 70000 | 45000 | 627-RSL * | |
7 | 22 | 7 | 3.45 | 1.37 | 70000 | 45000 | 627-Z * | |
7 | 22 | 7 | 3.45 | 1.37 | 70000 | 36000 | 627-2Z * | |
7 | 22 | 7 | 3.45 | 1.37 | 70000 | 45000 | 627 * | |
8 | 16 | 4 | 1.33 | 0.57 | 90000 | 56000 | 618/8 | |
8 | 16 | 5 | 1.33 | 0.57 | 90000 | 45000 | 628/8-2Z | |
8 | 16 | 5 | 1.33 | 0.57 | - | 26000 | 628/8-2RS1 | |
8 | 16 | 6 | 1.33 | 0.57 | 90000 | 45000 | 638/8-2Z | |
8 | 19 | 6 | 1.9 | 0.735 | 80000 | 40000 | 619/8-2Z | |
8 | 19 | 6 | 1.9 | 0.735 | 80000 | 50000 | 619/8 | |
8 | 19 | 6 | 1.9 | 0.735 | - | 24000 | 619/8-2RS1 | |
8 | 19 | 6 | 2.34 | 0.95 | 85000 | 43000 | 607/8-2Z * | |
8 | 19 | 6 | 2.34 | 0.95 | 85000 | 53000 | 607/8-Z * | |
8 | 22 | 7 | 3.45 | 1.37 | 75000 | 48000 | 608-Z * | |
8 | 22 | 7 | 3.45 | 1.37 | 75000 | 38000 | 608-2Z * | |
8 | 22 | 7 | 3.45 | 1.37 | 75000 | 38000 | 608-2Z/C3WT * | |
8 | 22 | 7 | 3.45 | 1.37 | 75000 | 48000 | 608-RSL * | |
8 | 22 | 7 | 3.45 | 1.37 | 75000 | 38000 | 608-2RSL * | |
8 | 22 | 7 | 3.45 | 1.37 | - | 22000 | 608-RSH * | |
8 | 22 | 7 | 3.45 | 1.37 | - | 22000 | 608-2RSH * | |
8 | 22 | 7 | 3.45 | 1.37 | 75000 | 48000 | 608 * | |
8 | 22 | 11 | 3.45 | 1.37 | - | 22000 | 630/8-2RS1 | |
8 | 24 | 8 | 3.9 | 1.66 | 63000 | 40000 | 628 * | |
8 | 24 | 8 | 3.9 | 1.66 | - | 19000 | 628-RS1 * | |
8 | 24 | 8 | 3.9 | 1.66 | - | 19000 | 628-2RS1 * | |
8 | 24 | 8 | 3.9 | 1.66 | 63000 | 40000 | 628-RZ * | |
8 | 24 | 8 | 3.9 | 1.66 | 63000 | 32000 | 628-2RZ * | |
8 | 24 | 8 | 3.9 | 1.66 | 63000 | 32000 | 628-2Z * | |
8 | 24 | 8 | 3.9 | 1.66 | 63000 | 40000 | 628-Z * | |
8 | 28 | 9 | 4.62 | 1.96 | 60000 | 30000 | 638-2RZ | |
8 | 28 | 9 | 4.62 | 1.96 | 60000 | 38000 | 638-RZ |
9 | 17 | 4 | 1.43 | 0.64 | 85000 | 53000 | 618/9 | |
9 | 17 | 5 | 1.43 | 0.64 | 85000 | 53000 | 628/9-Z | |
9 | 17 | 5 | 1.43 | 0.64 | 85000 | 43000 | 628/9-2Z | |
9 | 17 | 5 | 1.43 | 0.64 | - | 24000 | 628/9-2RS1 | |
9 | 20 | 6 | 2.08 | 0.865 | 80000 | 38000 | 619/9-2Z | |
9 | 20 | 6 | 2.08 | 0.865 | 80000 | 48000 | 619/9 | |
9 | 24 | 7 | 3.9 | 1.66 | 70000 | 43000 | 609 * | |
9 | 24 | 7 | 3.9 | 1.66 | 70000 | 43000 | 609-Z * | |
9 | 24 | 7 | 3.9 | 1.66 | 70000 | 34000 | 609-2Z * | |
9 | 24 | 7 | 3.9 | 1.66 | 70000 | 43000 | 609-RSL * | |
9 | 24 | 7 | 3.9 | 1.66 | 70000 | 34000 | 609-2RSL * | |
9 | 24 | 7 | 3.9 | 1.66 | - | 19000 | 609-2RSH * | |
9 | 24 | 7 | 3.9 | 1.66 | - | 19000 | 609-RSH * | |
9 | 26 | 8 | 4.75 | 1.96 | - | 19000 | 629-RSH * | |
9 | 26 | 8 | 4.75 | 1.96 | - | 19000 | 629-2RSH * | |
9 | 26 | 8 | 4.75 | 1.96 | 60000 | 30000 | 629-2RSL * | |
9 | 26 | 8 | 4.75 | 1.96 | 60000 | 38000 | 629-RSL * | |
9 | 26 | 8 | 4.75 | 1.96 | 60000 | 30000 | 629-2Z * | |
9 | 26 | 8 | 4.75 | 1.96 | 60000 | 38000 | 629-Z * | |
9 | 26 | 8 | 4.75 | 1.96 | 60000 | 38000 | 629 * |
10 | 19 | 5 | 1.38 | 0.585 | - | 22000 | 61800-2RS1 | |
10 | 19 | 5 | 1.38 | 0.585 | 80000 | 48000 | 61800 | |
10 | 19 | 5 | 1.38 | 0.585 | 80000 | 38000 | 61800-2Z | |
10 | 22 | 6 | 2.08 | 0.85 | 75000 | 36000 | 61900-2Z | |
10 | 22 | 6 | 2.08 | 0.85 | 75000 | 45000 | 61900 | |
10 | 22 | 6 | 2.08 | 0.85 | - | 20000 | 61900-2RS1 | |
10 | 26 | 8 | 4.75 | 1.96 | 67000 | 40000 | 6000-Z * | |
10 | 26 | 8 | 4.75 | 1.96 | 67000 | 40000 | 6000 * | |
10 | 26 | 8 | 4.75 | 1.96 | 67000 | 40000 | 6000-RSL * | |
10 | 26 | 8 | 4.75 | 1.96 | 67000 | 34000 | 6000-2Z * | |
10 | 26 | 8 | 4.75 | 1.96 | - | 19000 | 6000-RSH * | |
10 | 26 | 8 | 4.75 | 1.96 | 67000 | 34000 | 6000-2RSL * | |
10 | 26 | 8 | 4.75 | 1.96 | - | 19000 | 6000-2RSH * | |
10 | 26 | 12 | 4.62 | 1.96 | - | 19000 | 63000-2RS1 | |
10 | 28 | 8 | 4.62 | 1.96 | 63000 | 40000 | 16100 | |
10 | 28 | 8 | 4.62 | 1.96 | 63000 | 32000 | 16100-2Z | |
10 | 30 | 9 | 5.4 | 2.36 | 56000 | 34000 | 6200 * | |
10 | 30 | 9 | 5.4 | 2.36 | 56000 | 34000 | 6200-Z * | |
10 | 30 | 9 | 5.4 | 2.36 | 56000 | 28000 | 6200-2RSL * | |
10 | 30 | 9 | 5.4 | 2.36 | - | 17000 | 6200-RSH * | |
10 | 30 | 9 | 5.4 | 2.36 | - | 17000 | 6200-2RSH * | |
10 | 30 | 9 | 5.4 | 2.36 | 56000 | 28000 | 6200-2Z * | |
10 | 30 | 9 | 5.4 | 2.36 | 56000 | 34000 | 6200-RSL * | |
10 | 30 | 14 | 5.07 | 2.36 | - | 17000 | 62200-2RS1 | |
10 | 35 | 11 | 8.52 | 3.4 | 50000 | 32000 | 6300 * | |
10 | 35 | 11 | 8.52 | 3.4 | 50000 | 26000 | 6300-2Z * | |
10 | 35 | 11 | 8.52 | 3.4 | 50000 | 32000 | 6300-Z * | |
10 | 35 | 11 | 8.52 | 3.4 | 50000 | 26000 | 6300-2RSL * | |
10 | 35 | 11 | 8.52 | 3.4 | 50000 | 32000 | 6300-RSL * | |
10 | 35 | 11 | 8.52 | 3.4 | - | 15000 | 6300-RSH * | |
10 | 35 | 11 | 8.52 | 3.4 | - | 15000 | 6300-2RSH * | |
10 | 35 | 17 | 8.06 | 3.4 | - | 15000 | 62300-2RS1 |
12 | 21 | 5 | 1.43 | 0.67 | - | 20000 | 61801-2RS1 | |
12 | 21 | 5 | 1.43 | 0.67 | 70000 | 43000 | 61801 | |
12 | 21 | 5 | 1.43 | 0.67 | 70000 | 36000 | 61801-2Z | |
12 | 24 | 6 | 2.25 | 0.98 | 67000 | 32000 | 61901-2Z | |
12 | 24 | 6 | 2.25 | 0.98 | 67000 | 40000 | 61901 | |
12 | 24 | 6 | 2.25 | 0.98 | - | 19000 | 61901-2RS1 | |
12 | 28 | 8 | 5.4 | 2.36 | 60000 | 38000 | 6001 * | |
12 | 28 | 8 | 5.4 | 2.36 | 60000 | 38000 | 6001-Z * | |
12 | 28 | 8 | 5.4 | 2.36 | - | 17000 | 6001-2RSH * | |
12 | 28 | 8 | 5.4 | 2.36 | 60000 | 30000 | 6001-2RSL * | |
12 | 28 | 8 | 5.4 | 2.36 | - | 17000 | 6001-RSH * | |
12 | 28 | 8 | 5.4 | 2.36 | 60000 | 30000 | 6001-2Z * | |
12 | 28 | 8 | 5.4 | 2.36 | 60000 | 38000 | 6001-RSL * | |
12 | 28 | 12 | 5.07 | 2.36 | - | 17000 | 63001-2RS1 | |
12 | 30 | 8 | 5.07 | 2.36 | - | 16000 | 16101-2RS1 | |
12 | 30 | 8 | 5.07 | 2.36 | 56000 | 34000 | 16101 | |
12 | 30 | 8 | 5.07 | 2.36 | 56000 | 28000 | 16101-2Z | |
12 | 32 | 10 | 7.28 | 3.1 | 50000 | 32000 | 6201 * | |
12 | 32 | 10 | 7.28 | 3.1 | 50000 | 32000 | 6201-Z * | |
12 | 32 | 10 | 7.28 | 3.1 | 50000 | 32000 | 6201-RSL * | |
12 | 32 | 10 | 7.28 | 3.1 | 50000 | 26000 | 6201-2Z * | |
12 | 32 | 10 | 7.28 | 3.1 | - | 15000 | 6201-RSH * | |
12 | 32 | 10 | 7.28 | 3.1 | 50000 | 26000 | 6201-2RSL * | |
12 | 32 | 10 | 7.28 | 3.1 | - | 15000 | 6201-2RSH * | |
12 | 32 | 14 | 6.89 | 3.1 | - | 15000 | 62201-2RS1 | |
12 | 37 | 12 | 10.1 | 4.15 | 45000 | 28000 | 6301 * | |
12 | 37 | 12 | 10.1 | 4.15 | 45000 | 22000 | 6301-2Z | |
12 | 37 | 12 | 10.1 | 4.15 | 45000 | 28000 | 6301-Z | |
12 | 37 | 12 | 10.1 | 4.15 | 45000 | 22000 | 6301-2RSL * | |
12 | 37 | 12 | 10.1 | 4.15 | 45000 | 28000 | 6301-RSL * | |
12 | 37 | 12 | 10.1 | 4.15 | - | 14000 | 6301-RSH * | |
12 | 37 | 12 | 10.1 | 4.15 | - | 14000 | 6301-2RSH * | |
12 | 37 | 17 | 9.75 | 4.15 | - | 14000 | 62301-2RS1 |
15 | 24 | 5 | 1.56 | 0.8 | - | 17000 | 61802-2RS1 | |
15 | 24 | 5 | 1.56 | 0.8 | 60000 | 38000 | 61802 | |
15 | 24 | 5 | 1.56 | 0.8 | 60000 | 30000 | 61802-2Z | |
15 | 28 | 7 | 4.36 | 2.24 | 56000 | 28000 | 61902-2Z | |
15 | 28 | 7 | 4.36 | 2.24 | 56000 | 34000 | 61902 | |
15 | 28 | 7 | 4.36 | 2.24 | - | 16000 | 61902-2RS1 | |
15 | 28 | 7 | 4.36 | 2.24 | 56000 | 28000 | 61902-2RZ | |
15 | 32 | 8 | 5.85 | 2.85 | 50000 | 32000 | 16002 * | |
15 | 32 | 8 | 5.85 | 2.85 | 50000 | 32000 | 16002-Z | |
15 | 32 | 8 | 5.85 | 2.85 | 50000 | 26000 | 16002-2Z | |
15 | 32 | 9 | 5.85 | 2.85 | 50000 | 32000 | 6002-Z * | |
15 | 32 | 9 | 5.85 | 2.85 | 50000 | 32000 | 6002 * | |
15 | 32 | 9 | 5.85 | 2.85 | - | 14000 | 6002-2RSH * | |
15 | 32 | 9 | 5.85 | 2.85 | 50000 | 26000 | 6002-2RSL * | |
15 | 32 | 9 | 5.85 | 2.85 | - | 14000 | 6002-RSH * | |
15 | 32 | 9 | 5.85 | 2.85 | 50000 | 26000 | 6002-2Z * | |
15 | 32 | 9 | 5.85 | 2.85 | 50000 | 32000 | 6002-RSL * | |
15 | 32 | 13 | 5.59 | 2.85 | - | 14000 | 63002-2RS1 | |
15 | 35 | 11 | 8.06 | 3.75 | 43000 | 28000 | 6202 * | |
15 | 35 | 11 | 8.06 | 3.75 | 43000 | 28000 | 6202-Z * | |
15 | 35 | 11 | 8.06 | 3.75 | 43000 | 28000 | 6202-RSL * | |
15 | 35 | 11 | 8.06 | 3.75 | 43000 | 22000 | 6202-2Z * | |
15 | 35 | 11 | 8.06 | 3.75 | - | 13000 | 6202-RSH * | |
15 | 35 | 11 | 8.06 | 3.75 | 43000 | 22000 | 6202-2RSL * | |
15 | 35 | 11 | 8.06 | 3.75 | - | 13000 | 6202-2RSH * | |
15 | 35 | 14 | 7.8 | 3.75 | - | 13000 | 62202-2RS1 | |
15 | 42 | 13 | 11.9 | 5.4 | 38000 | 24000 | 6302 * | |
15 | 42 | 13 | 11.9 | 5.4 | 38000 | 19000 | 6302-2RSL * | |
15 | 42 | 13 | 11.9 | 5.4 | 38000 | 24000 | 6302-RSL * | |
15 | 42 | 13 | 11.9 | 5.4 | - | 12000 | 6302-RSH * | |
15 | 42 | 13 | 11.9 | 5.4 | - | 12000 | 6302-2RSH * | |
15 | 42 | 13 | 11.9 | 5.4 | 38000 | 19000 | 6302-2Z * | |
15 | 42 | 13 | 11.9 | 5.4 | 38000 | 24000 | 6302-Z * | |
15 | 42 | 17 | 11.4 | 5.4 | - | 12000 | 62302-2RS1 |
17 | 26 | 5 | 1.68 | 0.93 | - | 16000 | 61803-2RS1 | |
17 | 26 | 5 | 1.68 | 0.93 | 56000 | 28000 | 61803-2RZ | |
17 | 26 | 5 | 1.68 | 0.93 | 56000 | 34000 | 61803 | |
17 | 26 | 5 | 1.68 | 0.93 | 56000 | 28000 | 61803-2Z | |
17 | 30 | 7 | 4.62 | 2.55 | 50000 | 26000 | 61903-2Z | |
17 | 30 | 7 | 4.62 | 2.55 | 50000 | 32000 | 61903 | |
17 | 30 | 7 | 4.62 | 2.55 | 50000 | 26000 | 61903-2RZ | |
17 | 30 | 7 | 4.62 | 2.55 | - | 14000 | 61903-2RS1 | |
17 | 35 | 8 | 6.37 | 3.25 | 45000 | 28000 | 16003 * | |
17 | 35 | 8 | 6.37 | 3.25 | 45000 | 22000 | 16003-2Z | |
17 | 35 | 10 | 6.37 | 3.25 | 45000 | 28000 | 6003-Z * | |
17 | 35 | 10 | 6.37 | 3.25 | 45000 | 28000 | 6003 * | |
17 | 35 | 10 | 6.37 | 3.25 | 45000 | 22000 | 6003-2Z * | |
17 | 35 | 10 | 6.37 | 3.25 | 45000 | 28000 | 6003-RSL * | |
17 | 35 | 10 | 6.37 | 3.25 | - | 13000 | 6003-2RSH * | |
17 | 35 | 10 | 6.37 | 3.25 | 45000 | 22000 | 6003-2RSL * | |
17 | 35 | 10 | 6.37 | 3.25 | - | 13000 | 6003-RSH * | |
17 | 35 | 14 | 6.05 | 3.25 | - | 13000 | 63003-2RS1 | |
17 | 40 | 9 | 9.56 | 4.75 | 38000 | 24000 | 98203 | |
17 | 40 | 12 | 11.4 | 5.4 | 38000 | 24000 | 6203 ETN9 | |
17 | 40 | 12 | 9.95 | 4.75 | 38000 | 24000 | 6203 * | |
17 | 40 | 12 | 9.95 | 4.75 | 38000 | 24000 | 6203-Z * | |
17 | 40 | 12 | 9.95 | 4.75 | - | 12000 | 6203-RSH * | |
17 | 40 | 12 | 9.95 | 4.75 | 38000 | 19000 | 6203-2RSL * | |
17 | 40 | 12 | 9.95 | 4.75 | - | 12000 | 6203-2RSH * | |
17 | 40 | 12 | 9.95 | 4.75 | 38000 | 24000 | 6203-RSL * | |
17 | 40 | 12 | 9.95 | 4.75 | 38000 | 19000 | 6203-2Z * | |
17 | 40 | 16 | 9.56 | 4.75 | - | 12000 | 62203-2RS1 | |
17 | 47 | 14 | 14.3 | 6.55 | 34000 | 22000 | 6303 * | |
17 | 47 | 14 | 14.3 | 6.55 | 34000 | 17000 | 6303-2Z * | |
17 | 47 | 14 | 14.3 | 6.55 | 34000 | 22000 | 6303-Z * | |
17 | 47 | 14 | 14.3 | 6.55 | 34000 | 17000 | 6303-2RSL * | |
17 | 47 | 14 | 14.3 | 6.55 | 34000 | 22000 | 6303-RSL * | |
17 | 47 | 14 | 14.3 | 6.55 | - | 11000 | 6303-RSH * | |
17 | 47 | 14 | 14.3 | 6.55 | - | 11000 | 6303-2RSH * | |
17 | 47 | 19 | 13.5 | 6.55 | - | 11000 | 62303-2RS1 | |
17 | 62 | 17 | 22.9 | 10.8 | 28000 | 18000 | 6403 |
