Vòng bi cầu
Vòng bi cầu bằng thép không gỉ

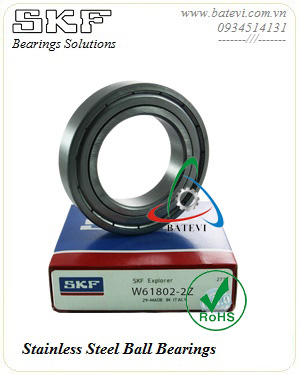

Vòng bi cầu bằng thép không gỉ

- Tên sp: Vòng bi cầu

- Chủng loại: Vòng bi cầu bằng thép không gỉ

- Kích thước: Tùy chọn

- Nắp chắn: Tùy chọn

- Hãng sx: SKF - Thụy Điển

Catalogue Ổ lăn ( Tiếng Việt)

Liên hệ

Thương hiệu: SKF - Thụy Điển

Tags: W61802-2Z

VÒNG BI CẦU MỘT DÃY CỦA SKF

Catalogue Ổ lăn ( Tiếng Việt) Catalogue Ổ lăn ( Tiếng Anh)

-------------------------------------------------------------------------------------------------------------------------------------------------

VÒNG BI CẦU MỘT DÃY BẰNG THÉP KHÔNG GỈ Deep groove ball bearings, single row, stainless steel 不锈钢深沟球轴承

Principal dimensions (mm)			Basic load ratings (kN)		Speed ratings (r/min)		Designation (Bearings Numbers)	Unit Prices (VND)
Principal dimensions (mm)			dynamic	static	Reference speed	Limiting speed	Designation (Bearings Numbers)	Unit Prices (VND)
d	D	B	C	C₀			* SKF Explorer bearing

1	3	1	0.056	0.017	240000	150000	W618/1
1.5	4	2	0.114	0.034	220000	110000	W638/1.5-2Z
1.5	5	2.6	0.151	0.043	200000	100000	W639/1.5-2Z
2	5	1.5	0.156	0.048	190000	120000	W618/2
2	5	2.3	0.156	0.048	190000	95000	W638/2-2Z
2	6	2.3	0.238	0.075	180000	90000	W619/2-2Z
2	6	3	0.238	0.075	180000	90000	W639/2-2Z
2.5	7	2.5	0.216	0.083	160000	80000	W619/2.5-2Z
2.5	8	2.8	0.27	0.102	150000	95000	W60/2.5
2.5	8	2.8	0.27	0.102	150000	75000	W60/2.5-2Z
3	6	3	0.216	0.085	160000	100000	W637/3
3	6	3	0.216	0.085	160000	80000	W637/3-2Z
3	7	3	0.216	0.085	160000	80000	W638/3-2Z
3	8	3	0.39	0.129	150000	75000	W619/3-2Z
3	8	4	0.39	0.129	150000	75000	W639/3-2Z
3	10	4	0.39	0.129	130000	80000	W623
3	10	4	0.39	0.129	130000	63000	W623-2Z
3.175	7.937	2.779	0.39	0.129	150000	95000	WEEX 002
3.175	7.937	3.571	0.39	0.129	150000	75000	WEEXB 002-2Z
4	9	2.5	0.449	0.173	140000	85000	W618/4
4	9	3.5	0.449	0.173	140000	70000	W628/4-2Z
4	9	4	0.449	0.173	140000	70000	W638/4-2Z
4	11	4	0.605	0.224	130000	80000	W619/4
4	11	4	0.605	0.224	130000	63000	W619/4-2Z
4	12	4	0.676	0.27	120000	60000	W604-2Z
4	12	4	0.676	0.27	120000	75000	W604
4	13	5	0.793	0.28	110000	67000	W624
4	13	5	0.793	0.28	-	32000	W624-2RS1
4	13	5	0.793	0.28	110000	53000	W624-2Z
4	16	5	0.923	0.365	95000	48000	W634-2Z
4.762	9.525	3.175	0.54	0.245	120000	60000	WEEX 003-2Z
4.762	12.7	3.967	0.793	0.28	110000	67000	WEEY 003
4.762	12.7	4.978	0.793	0.28	110000	53000	WEEYB 003-2Z
5	8	2.5	0.14	0.057	140000	70000	W627/5-2Z
5	11	3	0.54	0.245	120000	75000	W618/5
5	11	4	0.54	0.245	120000	60000	W628/5-2Z
5	11	5	0.54	0.245	120000	60000	W638/5-2Z
5	13	4	0.741	0.325	110000	53000	W619/5-2Z
5	13	4	0.741	0.325	110000	67000	W619/5
5	16	5	0.923	0.365	95000	60000	W625
5	16	5	0.923	0.365	-	28000	W625-2RS1
5	16	5	0.923	0.365	95000	48000	W625-2Z
5	19	6	1.86	0.915	80000	40000	W635-2Z
5	19	6	1.86	0.915	80000	50000	W635
6	10	3	0.319	0.137	120000	60000	W627/6-2Z
6	13	3.5	0.741	0.335	110000	67000	W618/6
6	13	5	0.741	0.335	110000	53000	W628/6-2Z
6	15	5	1.04	0.455	100000	50000	W619/6-2Z
6	15	5	1.04	0.455	100000	63000	W619/6
6	19	6	1.86	0.915	80000	50000	W626
6	19	6	1.86	0.915	-	24000	W626-2RS1
6	19	6	1.86	0.915	80000	40000	W626-2Z
6.35	15.875	4.978	1.04	0.455	100000	50000	WEEY 004-2Z
6.35	15.875	4.978	1.04	0.455	100000	63000	WEEY 004
7	11	3	0.291	0.127	110000	56000	W627/7-2Z
7	14	3.5	0.806	0.39	100000	63000	W618/7
7	14	5	0.806	0.39	100000	50000	W628/7-2Z
7	17	5	1.24	0.54	90000	45000	W619/7-2Z

7	17	5	1.24	0.54	90000	56000	W619/7
7	19	6	1.86	0.915	85000	53000	W607
7	19	6	1.86	0.915	-	24000	W607-2RS1
7	19	6	1.86	0.915	85000	43000	W607-2Z
7	22	7	2.76	1.32	70000	36000	W627-2Z
7	22	7	2.76	1.32	70000	45000	W627
8	16	4	1.12	0.55	90000	56000	W618/8
8	16	5	1.12	0.55	90000	45000	W628/8-2Z
8	16	6	1.12	0.55	90000	45000	W638/8-2Z
8	19	6	1.59	0.71	80000	40000	W619/8-2Z
8	19	6	1.59	0.71	80000	50000	W619/8
8	22	7	2.76	1.32	75000	48000	W608
8	22	7	2.76	1.32	-	22000	W608-2RS1
8	22	7	2.76	1.32	75000	38000	W608-2Z
9	17	4	1.19	0.62	85000	53000	W618/9
9	17	5	1.19	0.62	85000	43000	W628/9-2Z
9	20	6	1.74	0.83	80000	48000	W619/9
9	20	6	1.74	0.83	80000	38000	W619/9-2Z
9	24	7	3.12	1.6	70000	43000	W609
9	24	7	3.12	1.6	70000	34000	W609-2Z
9	26	8	3.9	1.9	60000	30000	W629-2Z
9	26	8	3.9	1.9	60000	38000	W629
9.525	22.225	7.142	2.81	1.37	70000	45000	WEEMB 3
9.525	22.225	7.142	2.81	1.37	70000	36000	WEEMB 3-2Z

10	15	3	0.715	0.425	85000	56000	W61700
10	19	5	1.14	0.57	80000	48000	W61800
10	19	5	1.14	0.57	80000	38000	W61800-2Z
10	19	5	1.14	0.57	-	22000	W61800-2RS1
10	19	7	1.14	0.57	80000	38000	W63800-2Z
10	22	6	1.74	0.815	75000	36000	W61900-2Z
10	22	6	1.74	0.815	75000	45000	W61900
10	26	8	3.9	1.9	67000	40000	W6000
10	26	8	3.9	1.9	-	19000	W6000-2RS1
10	26	8	3.9	1.9	67000	34000	W6000-2Z
10	30	9	4.23	2.28	-	17000	W6200-2RS1
10	30	9	4.23	2.28	56000	34000	W6200
10	30	9	4.23	2.28	56000	28000	W6200-2Z
10	35	11	6.76	3.25	50000	32000	W6300
10	35	11	6.76	3.25	-	15000	W6300-2RS1
10	35	11	6.76	3.25	50000	26000	W6300-2Z
12	21	5	1.21	0.64	70000	36000	W61801-2Z
12	21	5	1.21	0.64	70000	43000	W61801
12	24	6	1.9	0.95	67000	40000	W61901
12	24	6	1.9	0.95	67000	32000	W61901-2Z
12	28	8	4.23	2.28	60000	30000	W6001-2Z
12	28	8	4.23	2.28	60000	38000	W6001
12	28	8	4.23	2.28	-	17000	W6001-2RS1
12	32	10	5.85	3	50000	32000	W6201
12	32	10	5.85	3	-	15000	W6201-2RS1
12	32	10	5.85	3	50000	26000	W6201-2Z
12	37	12	8.19	4.05	45000	22000	W6301-2Z
12	37	12	8.19	4.05	-	14000	W6301-2RS1
12	37	12	8.19	4.05	45000	28000	W6301
12.7	28.575	7.939	4.23	2.28	-	17000	WR 8-2RS1
12.7	28.575	7.939	4.23	2.28	60000	30000	WR 8-2Z

15	24	5	1.3	0.78	60000	30000	W61802-2Z
15	24	5	1.3	0.78	60000	38000	W61802
15	28	7	3.64	2.16	56000	34000	W61902
15	28	7	3.64	2.16	56000	28000	W61902-2Z
15	28	7	3.64	2.16	-	16000	W61902-2RS1
15	32	9	4.68	2.75	50000	26000	W6002-2Z
15	32	9	4.68	2.75	50000	32000	W6002
15	32	9	4.68	2.75	-	14000	W6002-2RS1
15	35	11	6.5	3.65	43000	28000	W6202
15	35	11	6.5	3.65	-	13000	W6202-2RS1
15	35	11	6.5	3.65	43000	22000	W6202-2Z
15	42	13	9.56	5.2	38000	19000	W6302-2Z
15	42	13	9.56	5.2	-	12000	W6302-2RS1
15	42	13	9.56	5.2	38000	24000	W6302
17	26	5	1.4	0.9	56000	34000	W61803-2Z
17	30	7	3.9	2.45	56000	28000	W61903
17	30	7	3.9	2.45	-	14000	W61903-2RS1
17	30	7	3.9	2.45	50000	32000	W61903-2Z
17	35	10	5.07	3.15	45000	22000	W6003-2Z
17	35	10	5.07	3.15	-	13000	W6003-2RS1
17	35	10	5.07	3.15	45000	28000	W6003
17	40	12	8.06	4.65	38000	24000	W6203
17	40	12	8.06	4.65	-	12000	W6203-2RS1
17	40	12	8.06	4.65	38000	19000	W6203-2Z
17	47	14	11.4	6.3	34000	17000	W6303-2Z
17	47	14	11.4	6.3	-	11000	W6303-2RS1
17	47	14	11.4	6.3	34000	22000	W6303

20	32	7	3.38	2.24	45000	28000	W61804
20	32	7	3.38	2.24	-	13000	W61804-2RS1
20	37	9	5.4	3.55	-	12000	W61904-2RS1
20	42	12	7.93	4.9	38000	19000	W6004-2Z
20	42	12	7.93	4.9	38000	24000	W6004
20	42	12	7.93	4.9	-	11000	W6004-2RS1
20	47	14	10.8	6.4	32000	20000	W6204
20	47	14	10.8	6.4	-	10000	W6204-2RS1
20	47	14	10.8	6.4	32000	17000	W6204-2Z
20	52	15	13.5	7.65	30000	15000	W6304-2Z
20	52	15	13.5	7.65	-	9500	W6304-2RS1
20	52	15	13.5	7.65	30000	19000	W6304

Vòng bi cầu bằng thép không gỉ
