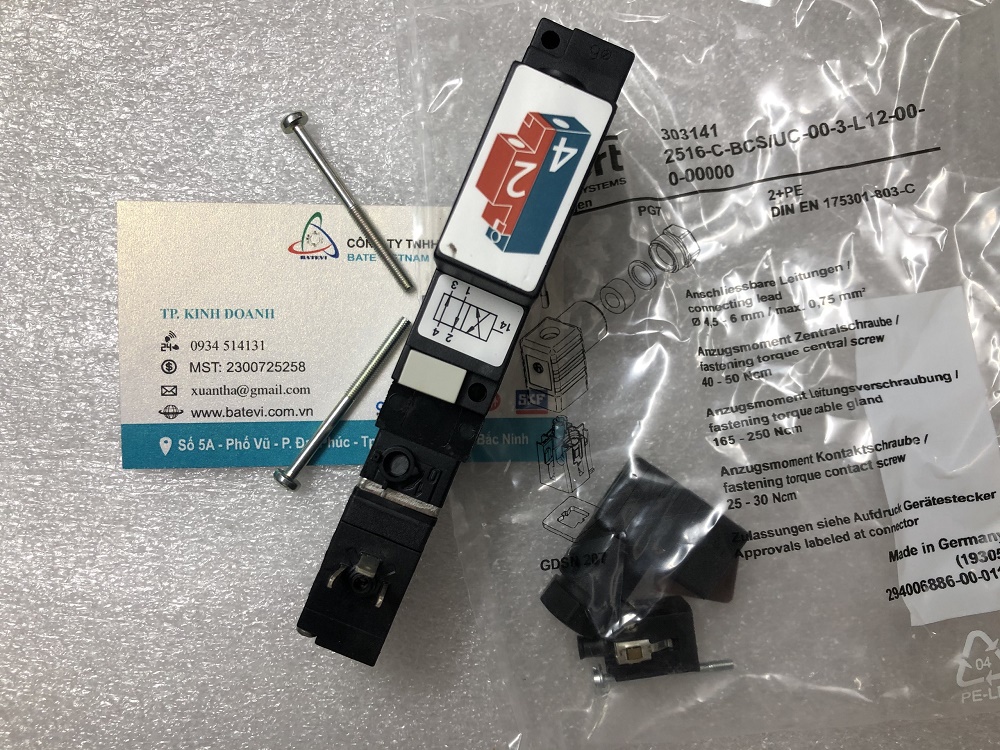

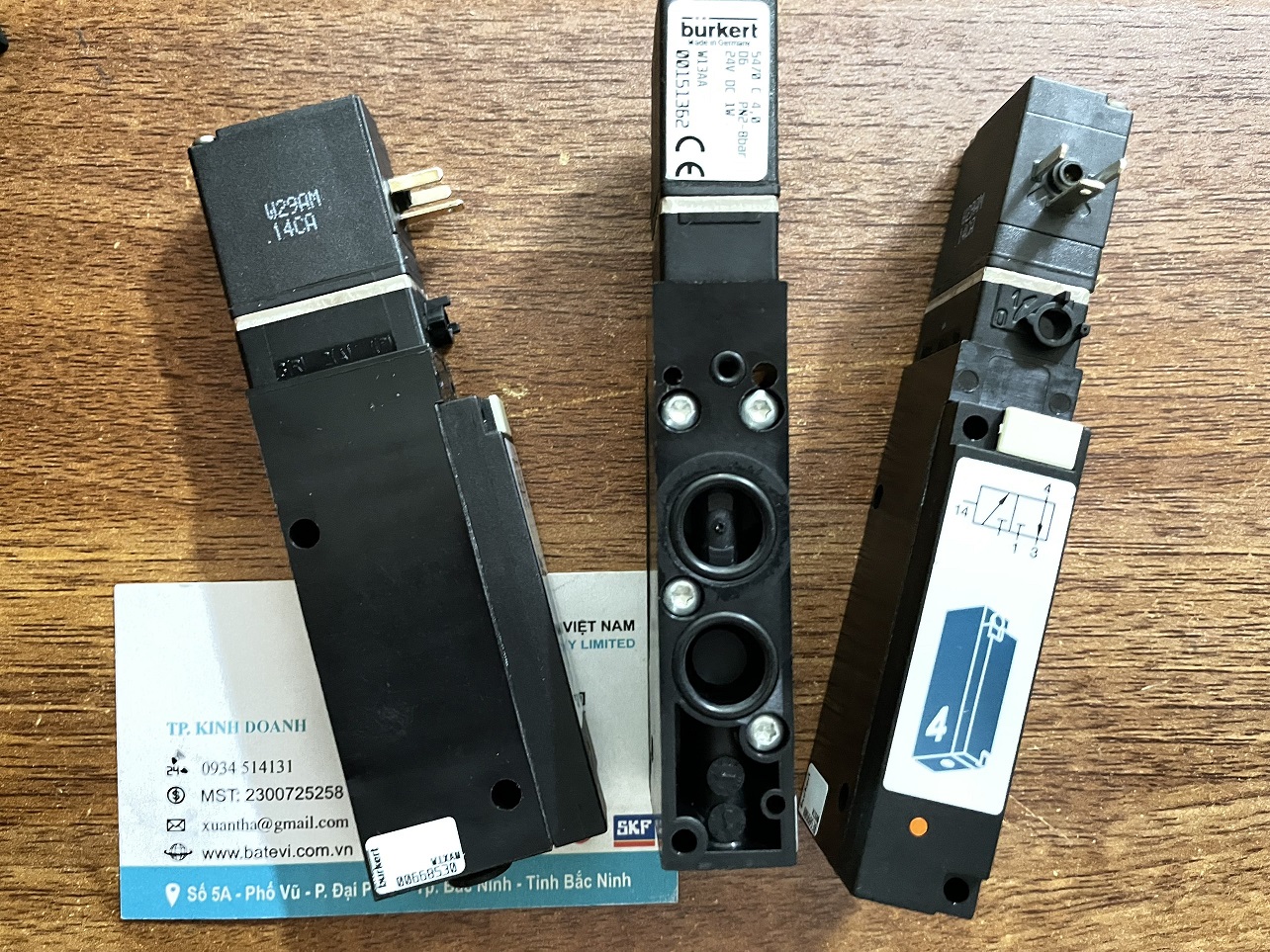

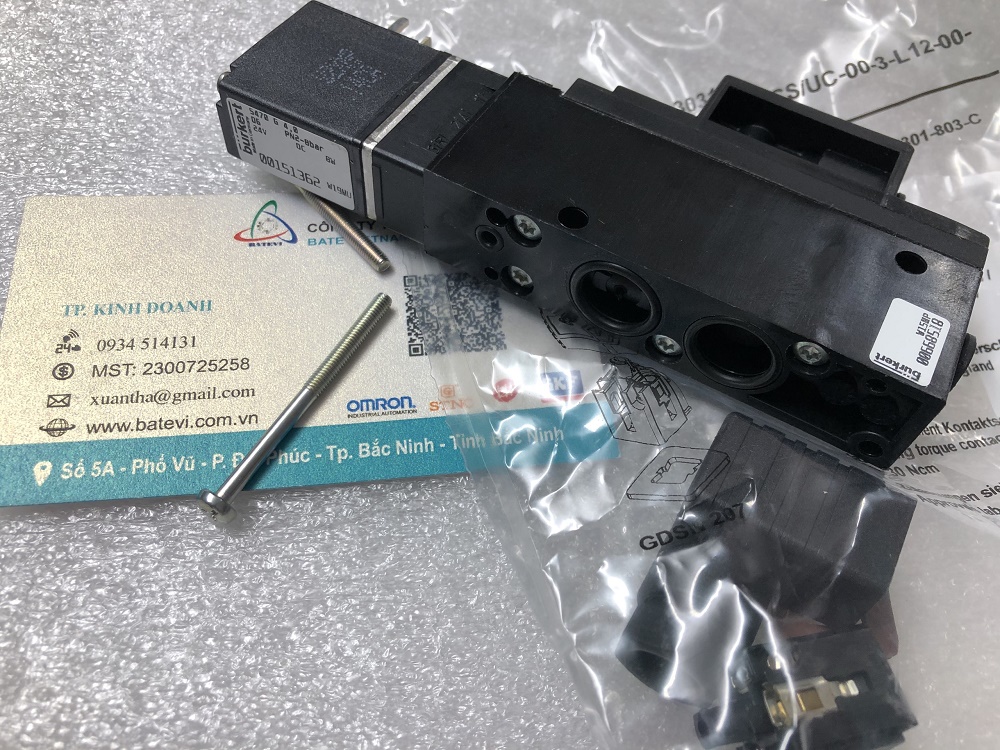

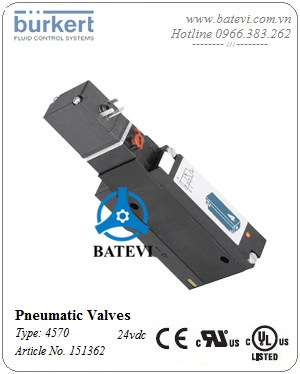

Van điện từ Burkert 151362
Van điện từ Burkert 151362
Van điện từ Burkert 151362
Van điện từ Burkert 151362
Van điện từ Burkert 151362
Van điện từ Burkert 151362

Van điện từ Burkert 151362

- Mã SP: 151362

- Chủng loại: type 4570, 3/2 and 4/2-way valve

- Điện áp: 24vdc

- Xuất xứ: Burkert - Germany

Liên hệ

Van điện từ Burkert 151362

Product description

Valves of type 5470 consist of a type 6106 pilot rocker solenoid valve and a pneumatic valve. An armature with a tilting bearing, similar o a rocker, tilts within the body of the pilot valve, and switches the valve. The minimal tilting movement of the rocker is non-wearing, and basic lubrication is unnecessary. The type 5470 R is available as a 3/2 and 4/2-way valve. The valves can be mounted together individually using the module flange. In various applications, they can be used advantageously as valve blocks. Different variants are available for service ports 2 and 4.


Commodity Codes
84812090
Country
DE


Technical attributes

Name

Value

Unit

Type 5470
Product sub-group Pneumatic valves
Valve function C - normally closed - inlet port 1 (P/NC), outlet port 2 (A/OUT) conectedwith exhaust port 3 (R/NO)
Fluidic port connection number 3
Valve function number of switching positions 2
Valve function manual actuation No
Valve function manual actuation type Nonexistent
Valve function manual actuation material No manual actuation available
Valve function manual actuation stop No manual actuation available
Valve function manual actuation screw slot No manual actuation available
Pneumatic pilot valve 1 6106
Valve piloting type Electric
Return type Pneumatic spring + mechanical spring
Pilot control orifice (mm) 0,9 mm
Pilot control material medium-contacting PA (Polyamide)
Pilot control material environment-contacting PA (Polyamide)
Pilot control seal material FKM (Fluor rubber)
Main valve operating principle Globe valve
Main valve orifice 1 (P) (mm) 4 mm
Main valve wetted material PA (Polyamide)
Main valve material environment-contacting PA (Polyamide)
Main valve seal material NBR (Nitrile rubber)
Supply connection type Flanged
Flange FM07
Working connection type Hose plug-in connection
Working connection diameter (mm) 6 mm
Working connection position Valve bottom
Working connection material Brass
Electrical power consumption min 1 W
Electircal power consumption max. 1 W
Coil wiring LED No
Coil wiring overvoltage protection without
Coil wiring rectifier No
Coil wiring polarity protection No
Coil wiring polarity recovery diode No
Coil wiring polarity recovery diode redundant No
Power reduction integrated No
Electrical connection sort Plug pattern form C according to DIN EN 175301-803
Cable plug in delivery not included
Electrical connection position Working side
Voltage / rated voltage 24 V
Voltage / rated voltage 24 V
Protection type (IP max. with suitable connector) IP65
AC voltage No
DC voltage Yes
Battery voltage Yes
Nominal pressure min 2 bar
Nominal pressure max 8 bar
Temperature environment min -10 °C
Temperature environment max 55 °C
Temperature medium min -10 °C
Temperature medium max 50 °C
Switch time open max. 25 ms
Switch time close max. 20 ms
Add-on dimension 1 19 mm
QNn value (gas) 300 l/min
Nominal operation/Duty cycle 100 %
Weight 0,109 kg
