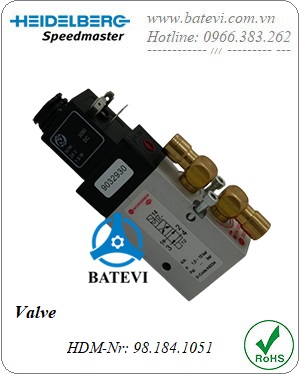

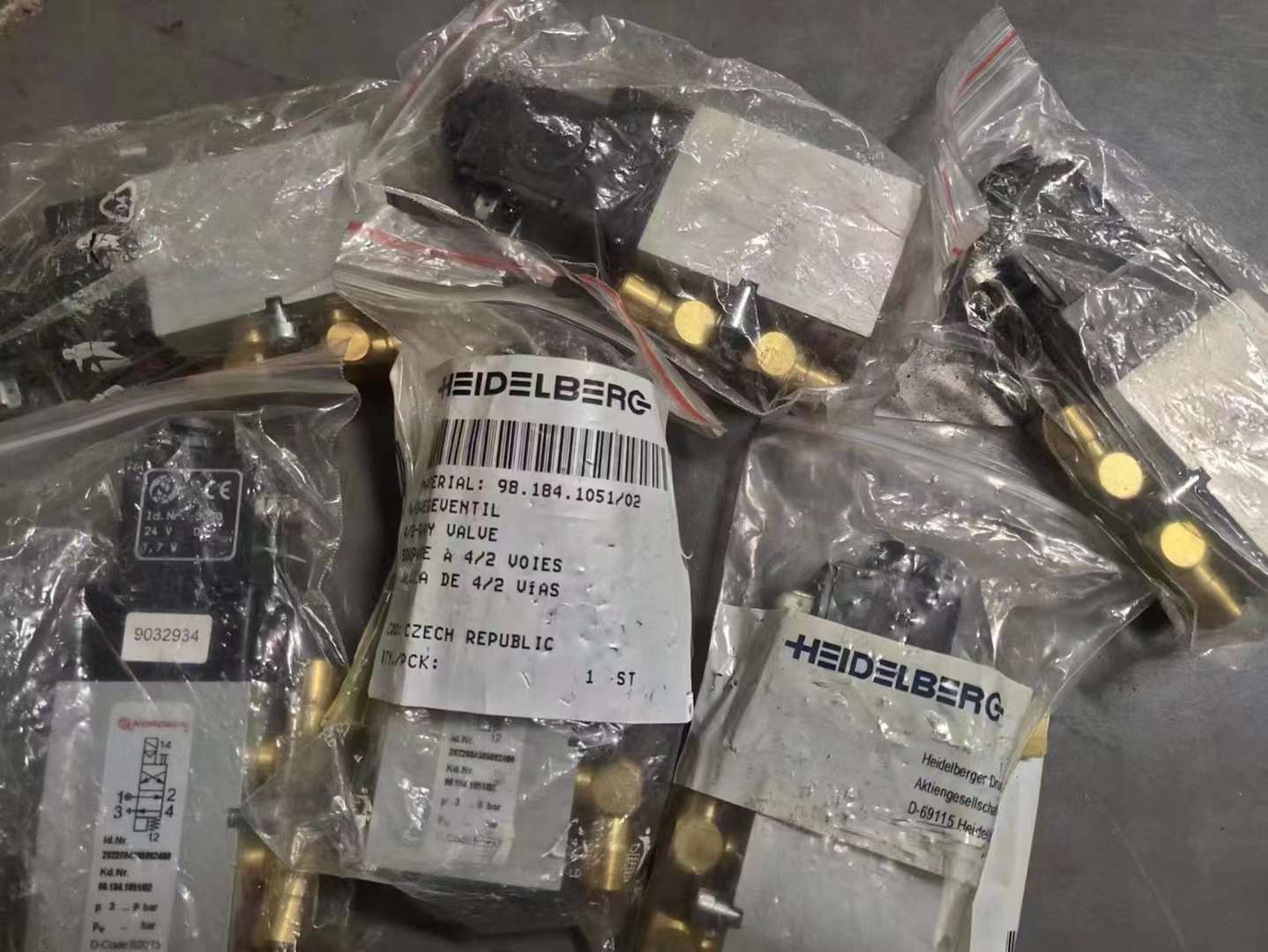

Valve 98.184.1051

- Tên SP:  Van điện từ

- HDM-Nr: 98.184.1051

Mã mới: 61.184.1051

Mã cũ: S9.184.1051

- Ống khí: 6mm, chủng loại van 4/2

- Ứng dụng: Máy in Heidelberg CD102, SM102, SM74

- Vị trí sử dụng: TKS C6.034.100 -003/06 = 60Y315

- Xuất xứ: Heidelberg - Germany
