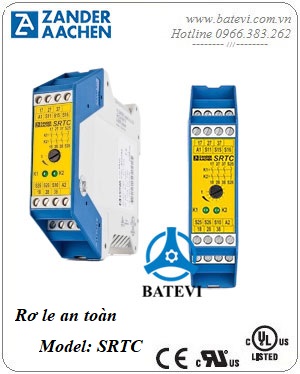

Time-delayed Safety Module SRTC

- Tên SP: Rơ la an toàn

- Mã SP: SRTC

- Độ trễ thời gian: 1 - 30 s

- Nguồn cấp: AC/DC 24 V / AC 115 V / AC 230 V

- Số tiếp điểm an toàn: 3 tiếp điểm (3NO/1NC)

- Chế độ hoạt động: 6 A / 250 VAC resistive load

- Chức năng an toàn: In combination wit SR-basic relay: emergency stop monitoring, safety guard monitoring, light grids monitoring

- Xuất xứ: Zander - Germany

Liên hệ

Thương hiệu: Zander - Germany

Tags: relay SREC sk3d SR4C SREC SRTC

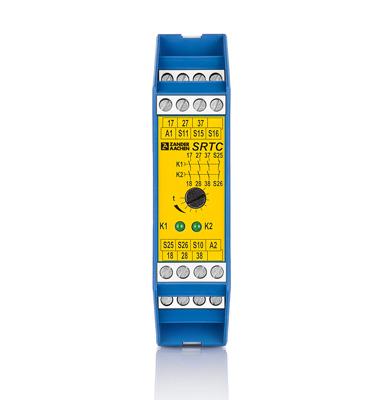

SRTC - Time-delayed Safety Extension Module

Feature	Value
SRTC
Safety function	In combination wit SR-basic relay: emergency stop monitoring, safety guard monitoring, light grids monitoring
Certified according to	EN 60204-1; EN ISO 13849-1 ; EN 62061
Approvals	CE, TUV, UL
Supply voltage	AC/DC 24 V / AC 115 V / AC 230 V
Number of safe relay contacts	3
Max. switching capability of safe relay contacts	6 A / 250 VAC resistive load
Number of auxiliary relay contacts	1 (Feedback Loop - Basic Modul)
Number of non time-delayed contacts	-
Number of time-delayed contacts	3
Adjustable time delay	1 - 30 s
Starting behavior	Switches on and of with basic relay
PL; Cat.; SILCL (EN ISO 13849-1; EN/IEC 62061)	PL d; Kat. 3; SILCL 2
Width	22.5 mm
Order No. fixed screw terminals	472192 (24 V) / 472191 (115 V) / 472190 (230 V)
Order No. plug-in screw terminals	474192 (24 V) / 474191 (115 V) / 474190 (230 V)
Order No. push-in twin spring connector	475192 (24 V) / 475191 (115 V) / 475190 (230 V)
Order No. EKLS4, set of plug-in screw terminals	472592
Order No. EKLT4; set of push-in twin spring connector	472595
