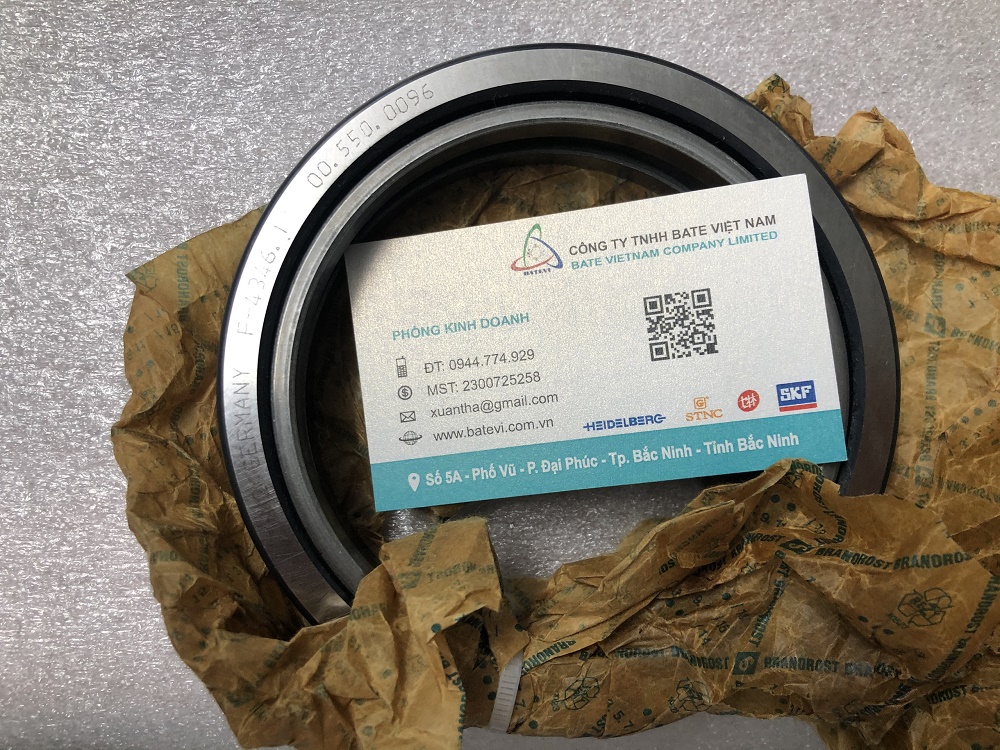

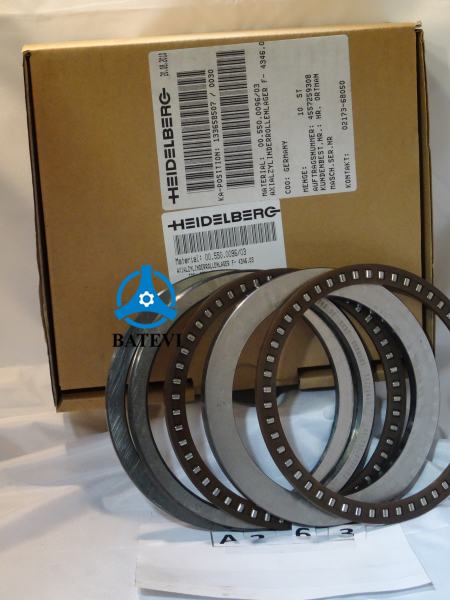

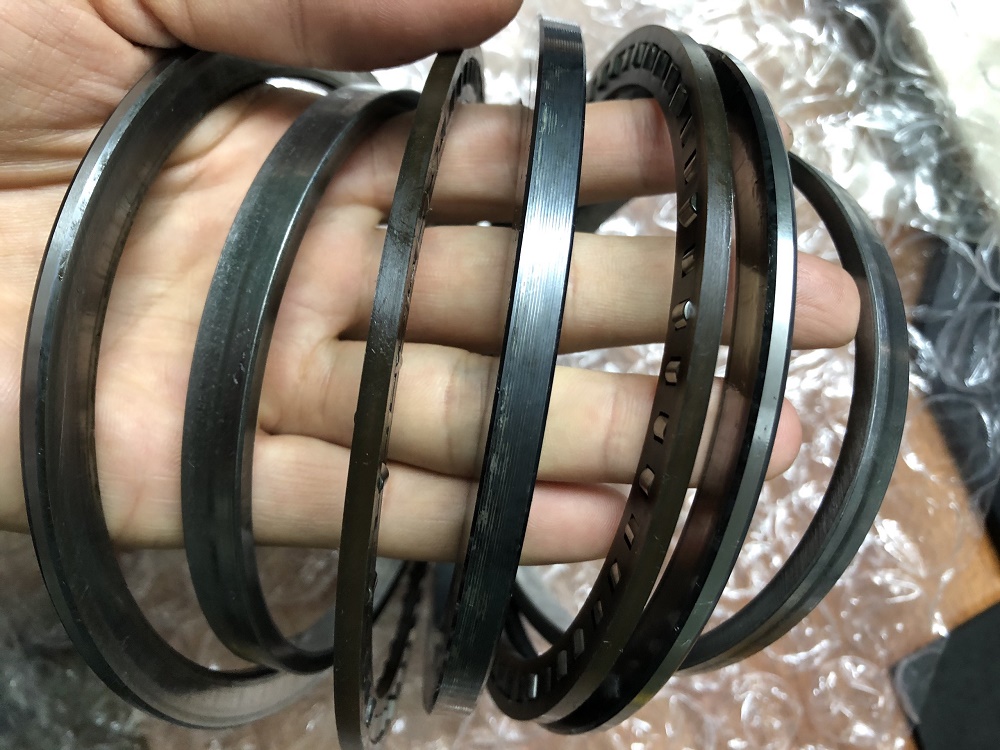

Thrust Bearing 00.550.0096

- Tên SP: Vòng bi tỳ

- HDM-Nr: 00.550.0096

- OEM: F-4346.1

- Kích thước: 110x130x25(mm)

- Ứng dụng: Máy in Heidelberg CD102, SM102

Vị trí sử dụng: TKS 87.005.400 -004/05 = 15

- Xuất Xứ: INA - Germany

Thrust Bearing Axial INA F-4346.1

Thrust Bearing 00.550.0096

Thrust Bearing 00.550.0096/03

Bearing 00.550.0096/03

平面推力滚子轴承00.550.0096

平面推力滚子轴承F-4346.1
