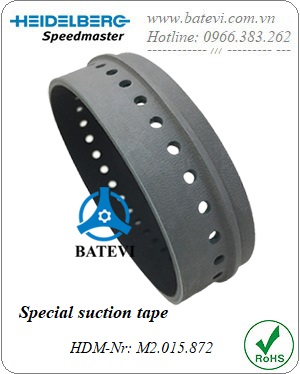

Suction tape

M2.015.872

- Tên SP: Đây dai tải

- HDM-Nr: M2.015.872

- Ứng dụng: Heidelberg SM74

- Vị trí sử dụng:  TKS M4.015.500 -007/11 = 42

- Xuất xứ: Heidelberg - Germany
