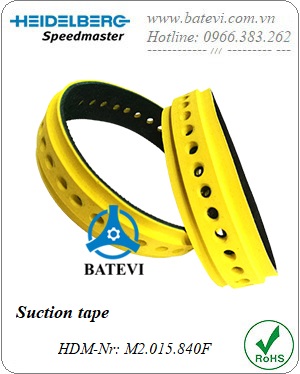

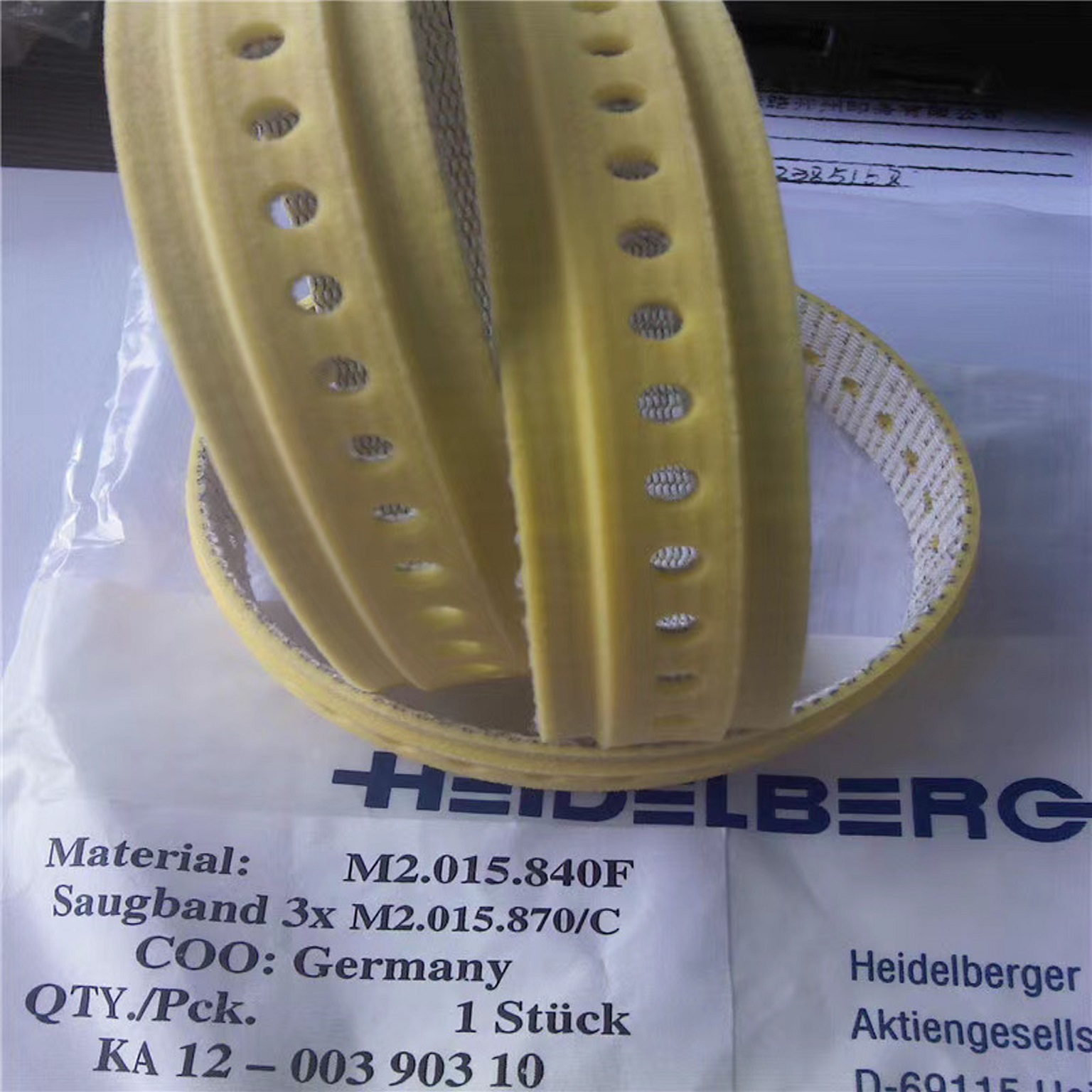

Suction tape

M2.015.840F

- Tên SP: Đây dai tải

- HDM-Nr: M2.015.840F

- Ứng dụng: Heidelberg SM74

- Vị trí sử dụng:  TKS M4.015.500 -007/11 = 39

- Xuất xứ: Heidelberg - Germany

Suction tape M2.015.840F
