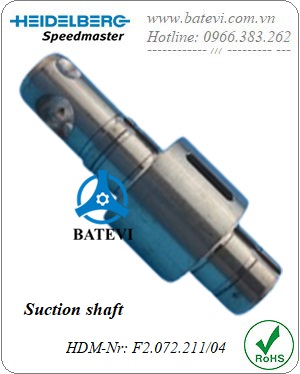

Suction shaft

F2.072.211/04

- Tên SP: Trục truyền động

- HDM-Nr: F2.072.211

- Ứng dụng: Máy in Heidelberg  CD102, SM102

- Vị trí sử dụng:  TKS F3.072.200 -004/02 - 9

- Xuất xứ:  Heidelberg - Germany

Suction shaft F2.072.211/04
