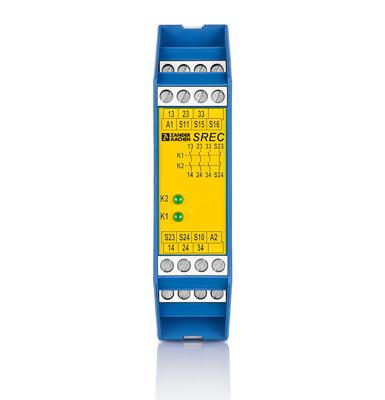

Safety Relay SREC

- Tên SP: Rơ la an toàn

- Mã SP: SREC

- Độ trễ thời gian:

- Nguồn cấp: AC/DC 24 V / AC 115 V / AC 230 V

- Số tiếp điểm an toàn: 3NO/ 1NC (03 tiếp điểm thường mở, 1 tiếp điểm thường đóng)

- Chế độ hoạt động: Switches on and of with basic relay

- Chức năng an toàn: In combination wit SR-basic relay: emergency stop monitoring, safety guard monitoring, light grids monitoring

- Xuất xứ: Zander - Germany

Liên hệ

Thương hiệu: Zander - Germany

Tags: relay SREC SR4C SREC

SREC - Safety Extension Module

SREC
Safety function	In combination wit SR-basic relay: emergency stop monitoring, safety guard monitoring, light grids monitoring
Certified according to	EN 60204-1; EN ISO 13849-1 ; EN 62061
Approvals	CE, TUV, UL
Supply voltage	AC/DC 24 V / AC 115 V / AC 230 V
Number of safe relay contacts	3
Max. switching capability of safe relay contacts	6 A / 250 VAC resistive load
Number of auxiliary relay contacts	1 (feedback loop - basic relay)
Number of non time-delayed contacts	3
Number of time-delayed contacts	-
Adjustable time delay	-
Starting behavior	Switches on and of with basic relay
PL; Cat.; SILCL (EN ISO 13849-1; EN/IEC 62061)	PL e; Cat. 4; SILCL 3
Width	22.5 mm
Order No. fixed screw terminals	472182 (24 V) / 472181 (115 V) / 472180 (230 V)
Order No. plug-in screw terminals	474182 (24 V) / 474181 (115 V) / 474180 (230 V)
Order No. push-in twin spring connector	475182 (24 V) / 475181 (115 V) / 475180 (230 V)
Order No. EKLS4, set of plug-in screw terminals	472592
Order No. EKLT4; set of push-in twin spring connector	472595
