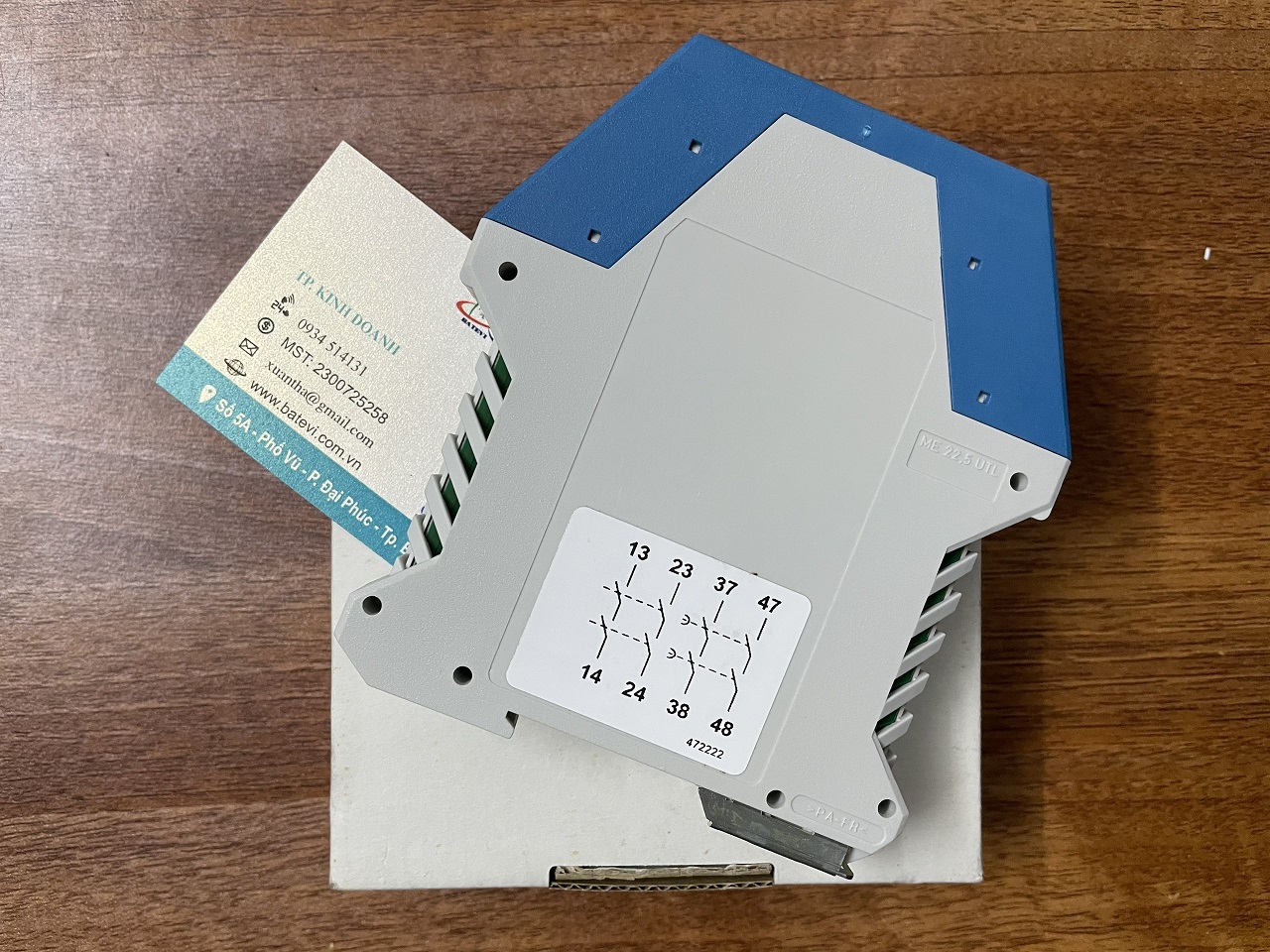

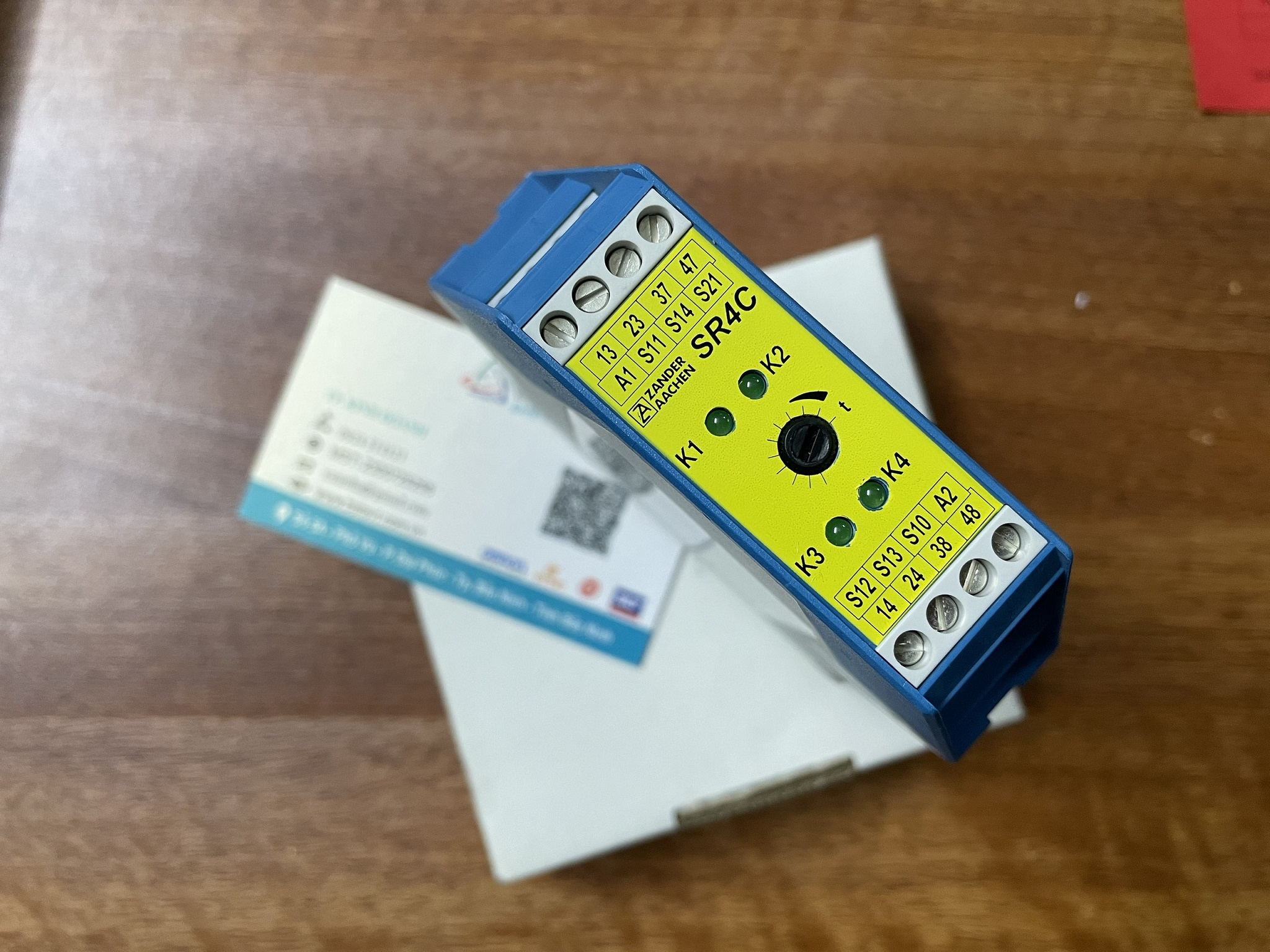

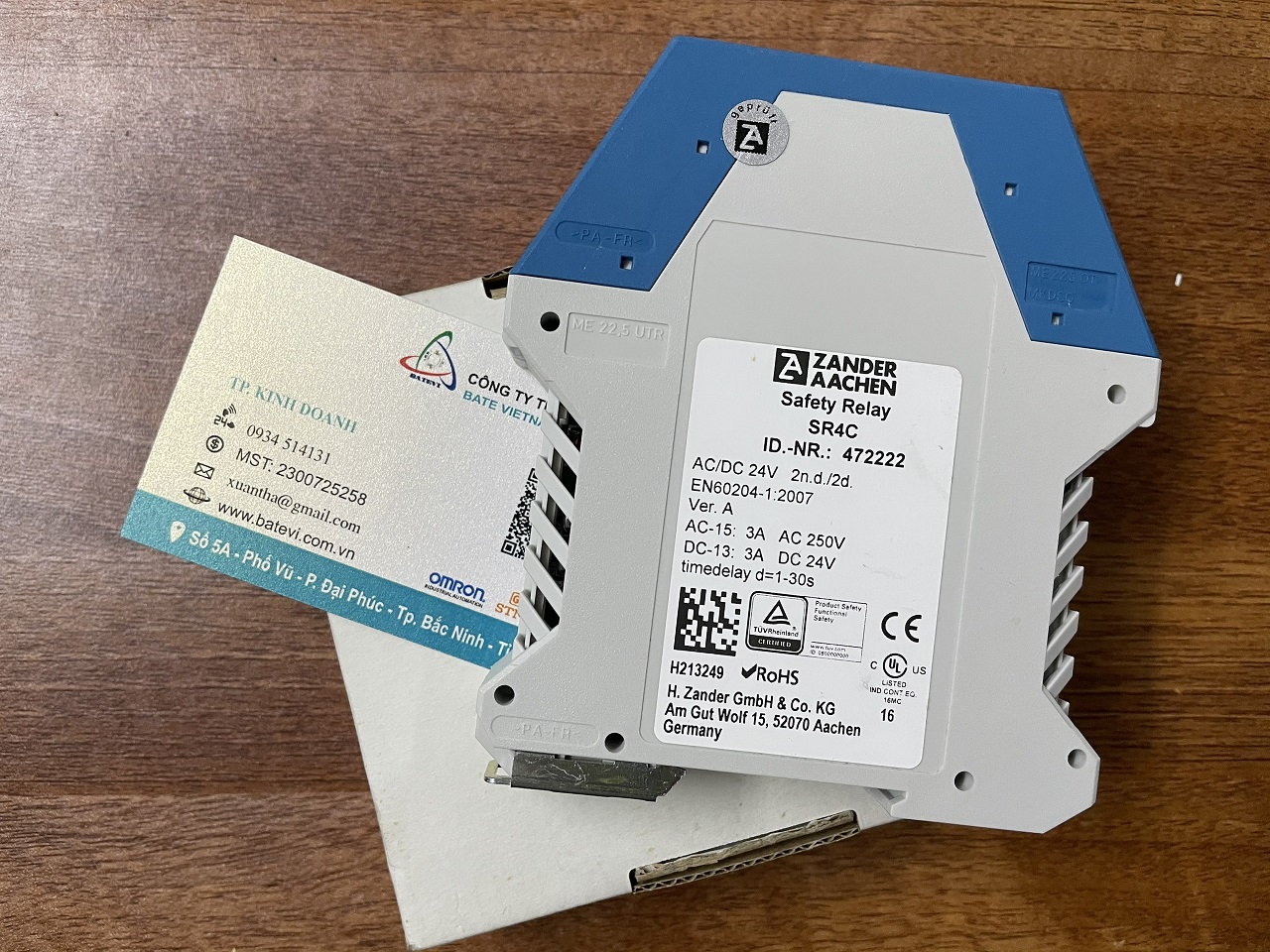

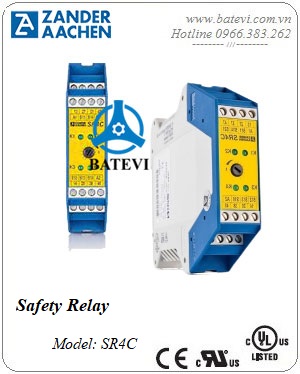

Safety Relay SR4C

Time-delayed Safety Relay SR4C

Rơ le an toàn SR4C

relay SR4C

Zander SR4C

SREC - Safety Extension Module

SRTC - Time-delayed Safety Extension Module

SK3D SRTC

---------------------------------------------------------------------------------------------------------

SR4C - Time-delayed Safety Relay

Safety function Emergency stop monitoring,

safety guard monitoring, light grids monitoring,

stop category 0/1

Certified according to     EN 60204-1; EN ISO 13849-1 ; EN 62061

Approvals          CE, TUV, UL

Supply voltage   AC/DC 24 V

Number of safe relay contacts    4

Max. switching capability of safe relay contacts  8 A / 250 VAC resistive load

Number of auxiliary relay contacts           -

Number of non time-delayed contacts    1 / 2 / 3

Number of time-delayed contacts            3 / 2 / 1

Adjustable time delay    1 - 30 s

Starting behavior            Automatic start or manual, monitored start

PL; Cat.; SILCL (EN ISO 13849-1; EN 62061)           PL e; Cat. 4; SILCL 3 - non-delayed contacts PL e; Cat. 3; SILCL 2 - delayed contactsWidth   22.5 mm

Order No. fixed screw terminals 472232 (3 del.) / 472222 (2 del.) / 472212 (1 del.)

Order No. plug-in screw terminals           474232 (3 del.) / 474222 (2 del.) / 474212 (1 del.)

Order No. push-in twin spring connector              475232 (3 del.) / 475222 (2 del.) / 475212 (1 del.)

Order No. EKLS4; set of plug-in screw terminals  472592

Order No. EKLT4; set of push-in twin spring connector    472595

Order No. Spacer for a defined minimum distance between two safety relays (see derating)       472596
