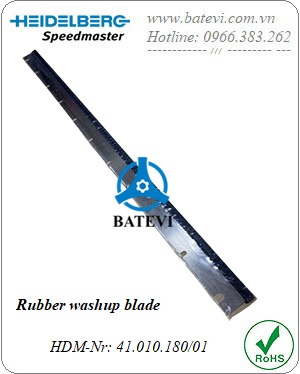

Rubber washup blade

41.010.180/01

- Tên SP:  Dao gạt mực

- HDM-Nr: 41.010.180/01

- Kích thước: 1090mm, 11 lỗ, độ rộng 57mm hoặc 60mm

- Ứng dụng: Máy in Heidelberg CD102, SM102

- Vị trí sử dụng: TKS C3.010.100 -002/23 = 1.2

- Xuất xứ: Heidelberg - Germany
