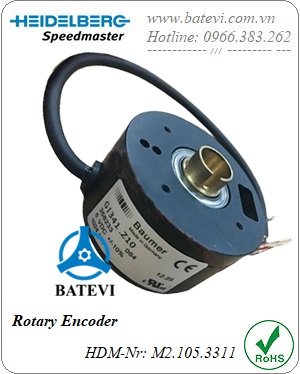

Rotary Encoder

M2.105.3311

- Tên SP: Bộ mã hóa vòng quay

- HDM-Nr: M2.105.3311

OEM: GI341.Z10 hoặc GI341.Z17

- Ứng dụng: Máy in Heidelberg CD102, SM102, SM74

- Vị trí sử dụng:  TKS C6.215.100 -001/04 - 70M1

- Xuất xứ: Heidelberg - Germany

Rotary Encoder M2.105.3311
