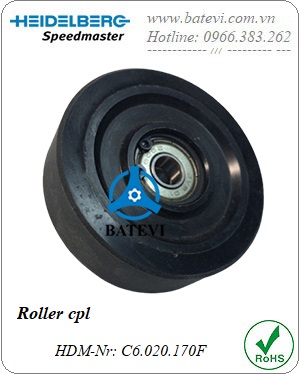

Roller cpl C6.020.170F

- Tên SP:  Con lăn

- HDM-Nr: C6.020.170F

- Ứng dụng: Máy in Heidelberg  CD102, SM102

- Vị trí sử dụng:   TKS C5.016.200 -006/03 = 10

- Xuất xứ: Heidelberg - Germany

Roller cpl C6.020.170F
