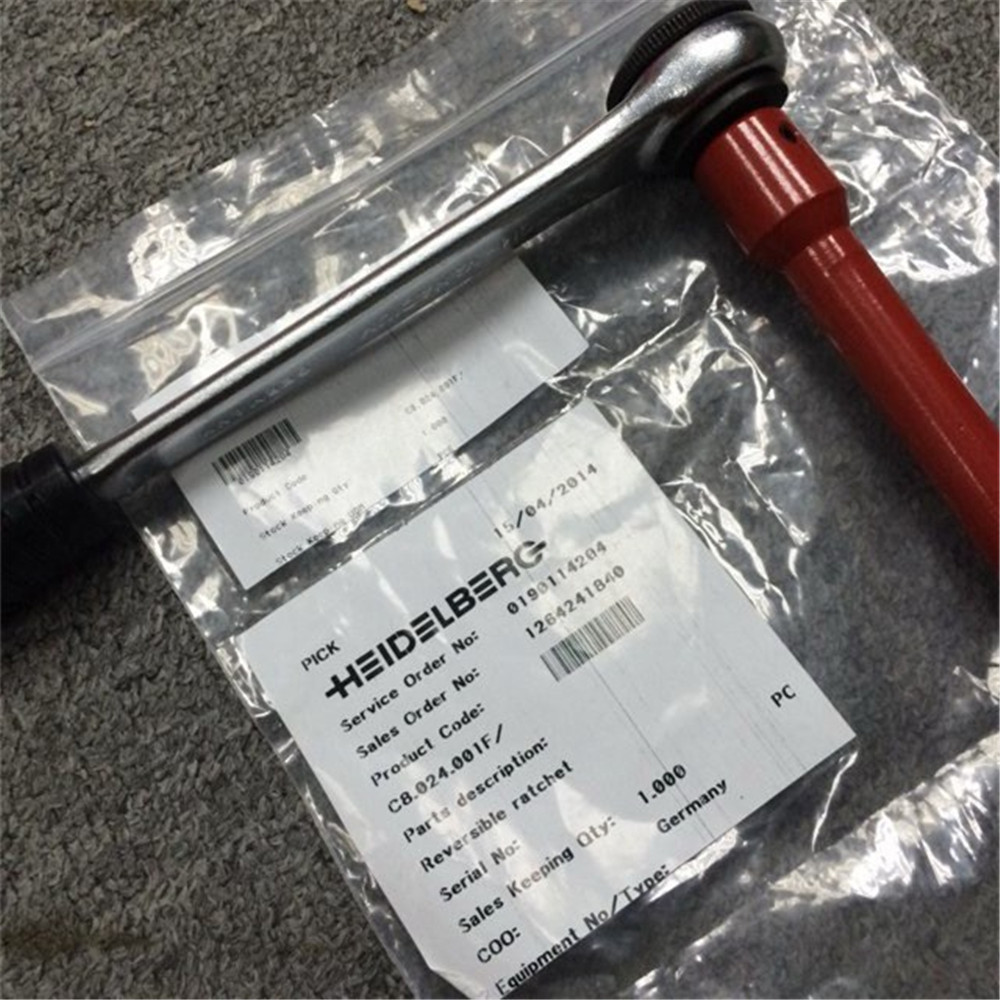

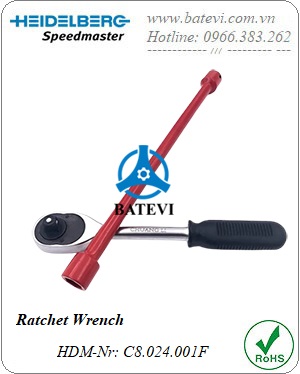

Ratchet Wrench C8.024.001F

- Tên SP: Cần xiết lực

- HDM-Nr: C8.024.001F

C8.024.001F = C8.024.001 + C8.024.002

- Ứng dụng: Máy in Heidelberg CD102, SM102, SM74

- Vị trí sử dụng:

- Xuất xứ:  Heidelberg - Germany

Ratchet Wrench C8.024.001F

Wrench C8.024.001

Wrench C8.024.002
