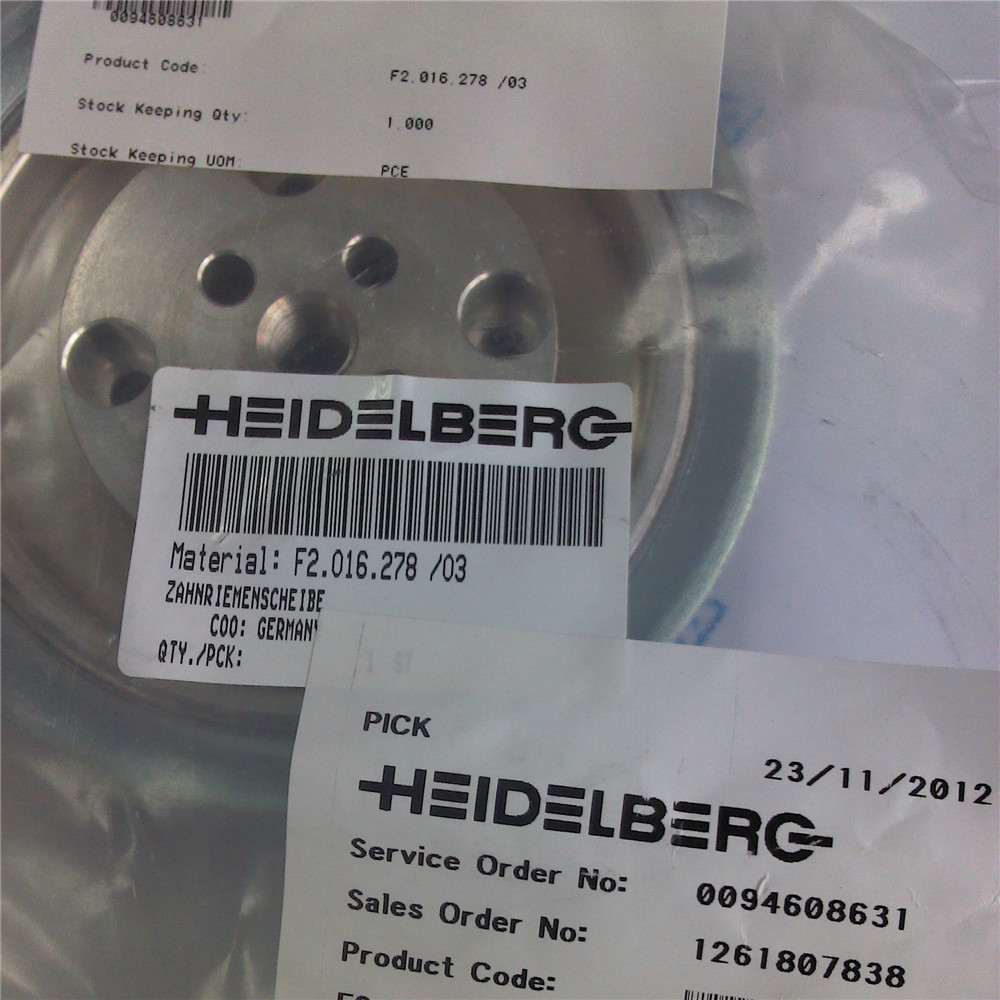

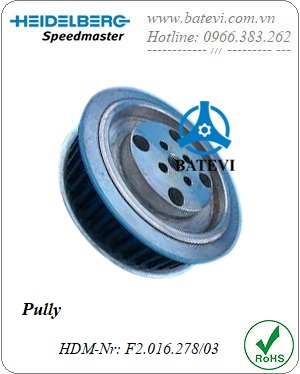

Pully F2.016.278/03

- Tên SP: Pully đai tải

- HDM-Nr: F2.016.278/03

- Ứng dụng: Heidelberg  CD102, SM102

- Vị trí sử dụng:  TKS F3.016.200 -008/00 = 2

- Xuất xứ: Heidelberg - Germany
