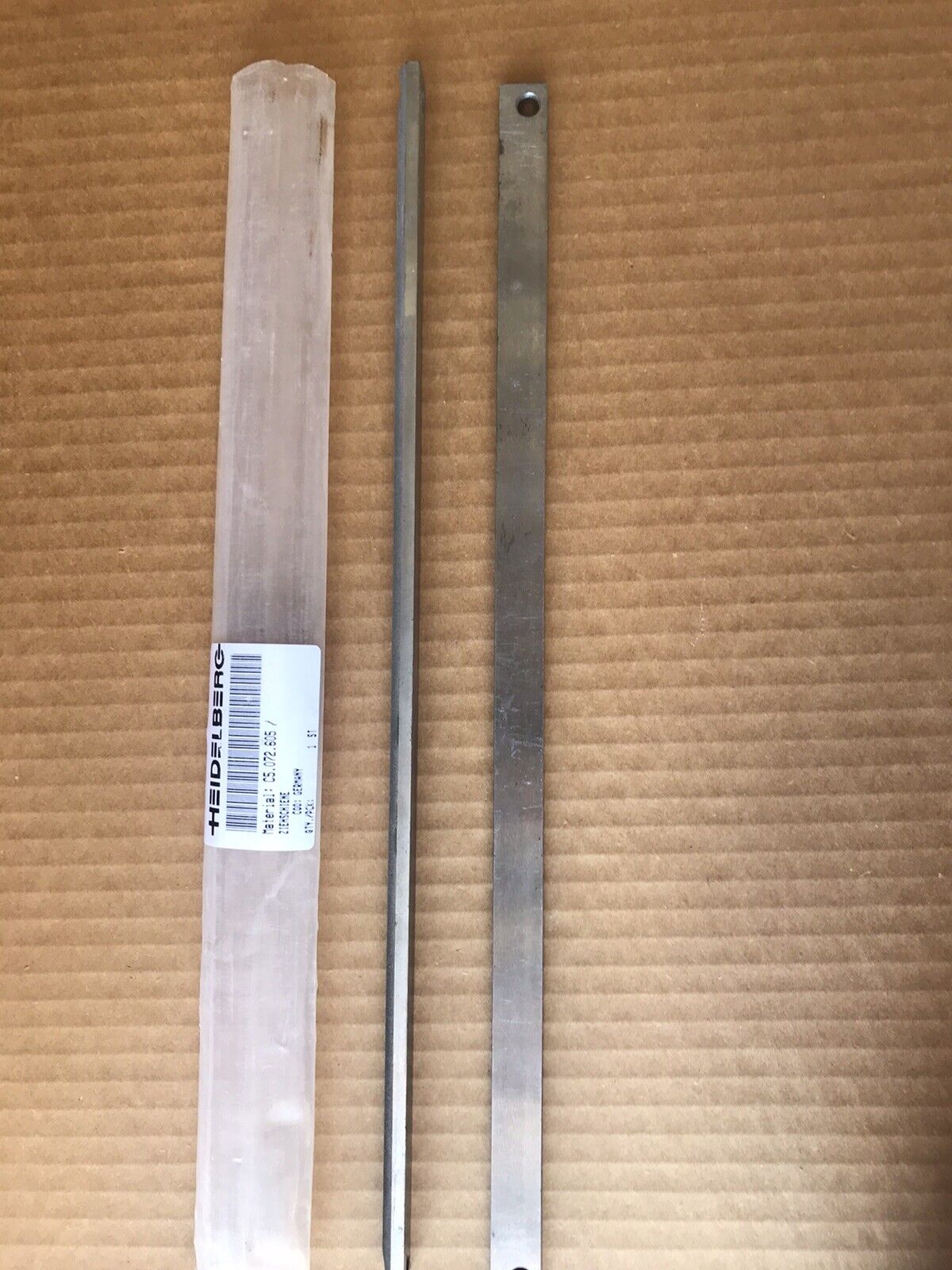

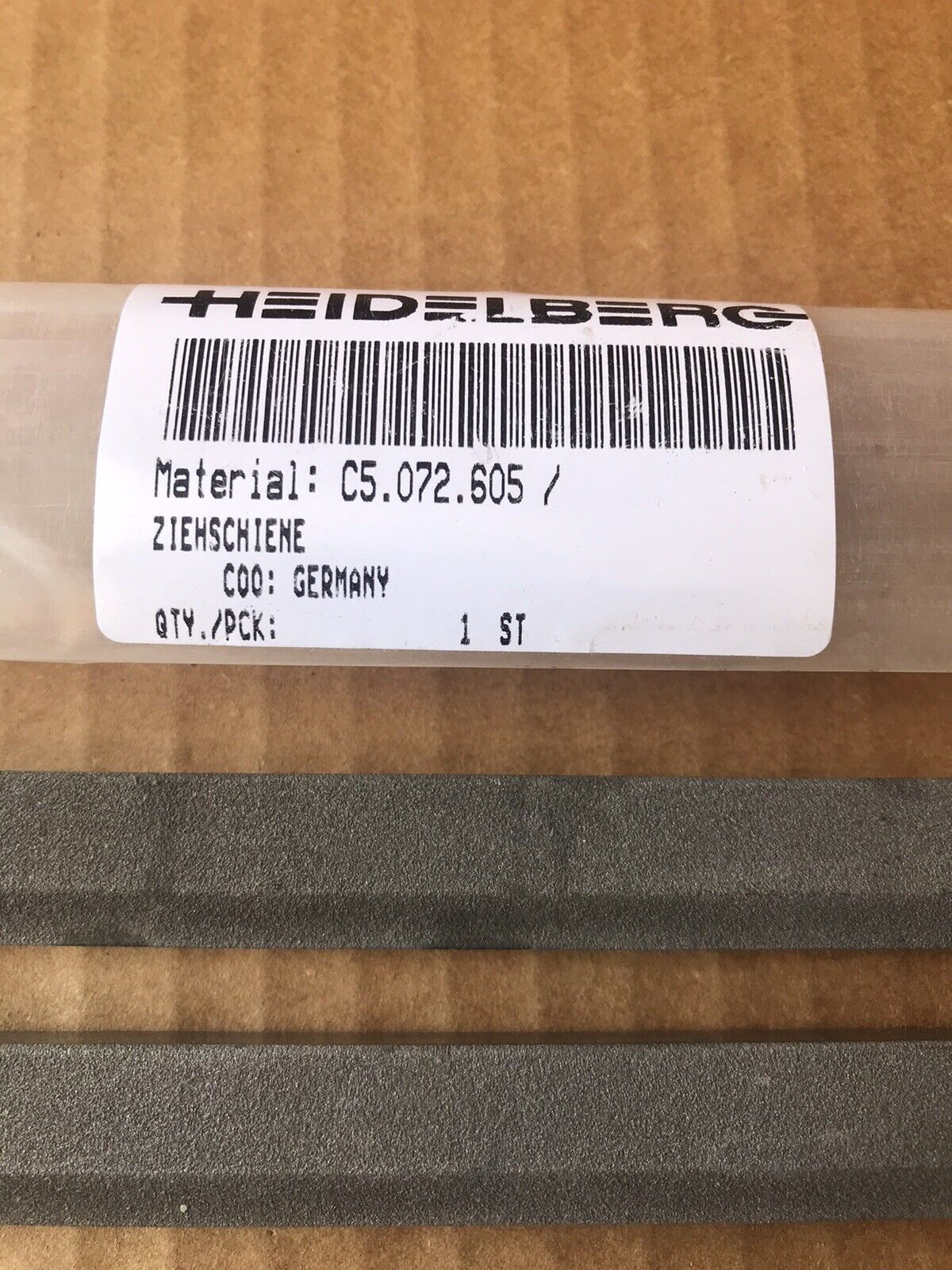

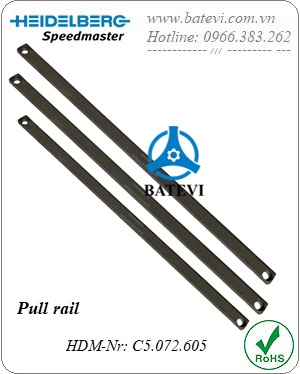

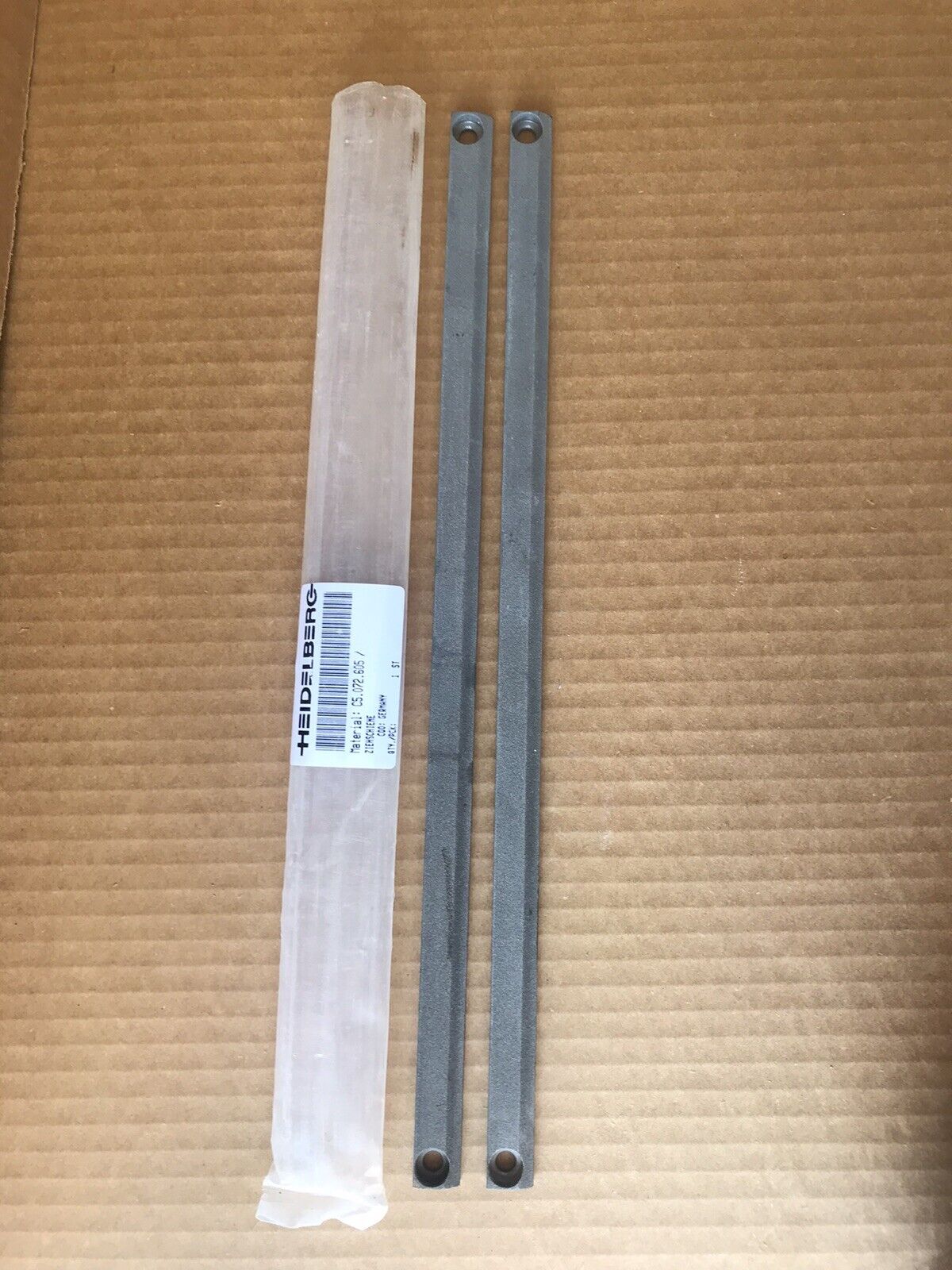

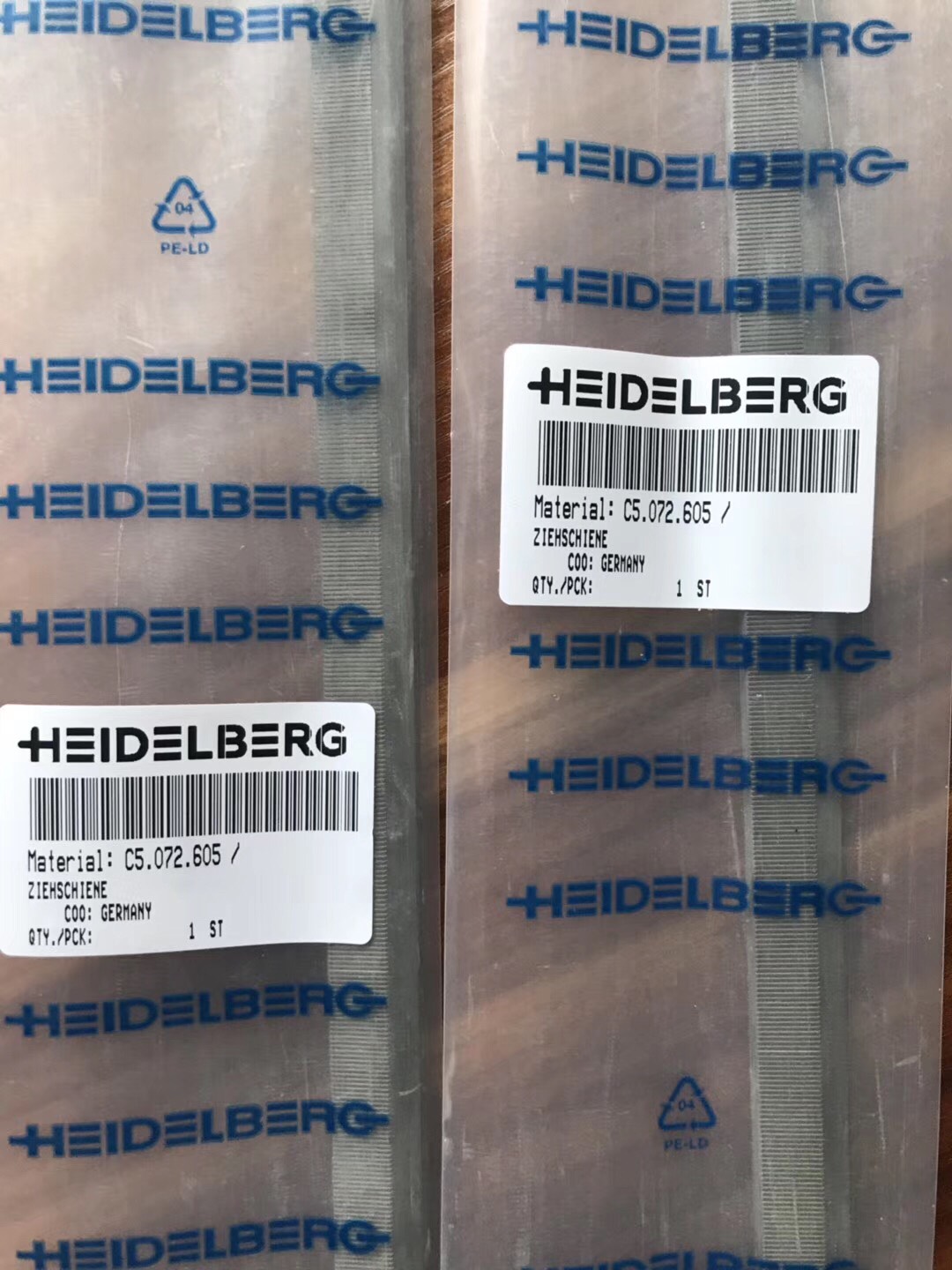

Pull rail C5.072.605

- Tên SP: Thanh ray kéo tay kê

- HDM-Nr: C5.072.605

- Ứng dụng: Máy in Heidelberg CD102, SM102

- Vị trí sử dụng:  TKS C5.072.600 -002/04 = 17

- Xuất xứ: Heidelberg - Germany

Pull rail C5.072.605
