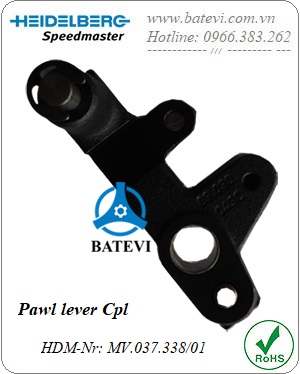

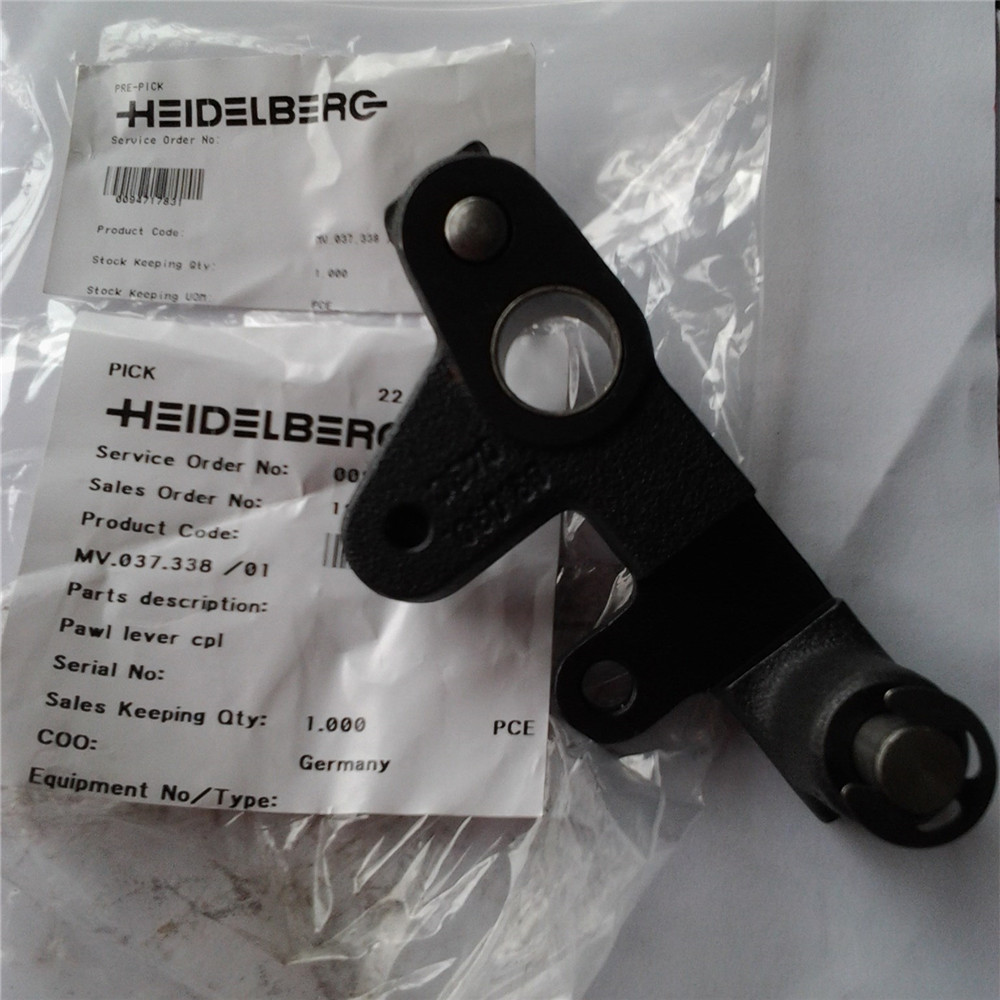

Pawl lever Cpl

MV.037.338/01

- Tên SP: Cần gạt

- HDM-Nr: MV.037.338/01

- Ứng dụng: Máy in Heidelberg

- Vị trí sử dụng:

- Xuất xứ: Heidelberg - Germany

Pawl lever Cpl MV.037.338/01
