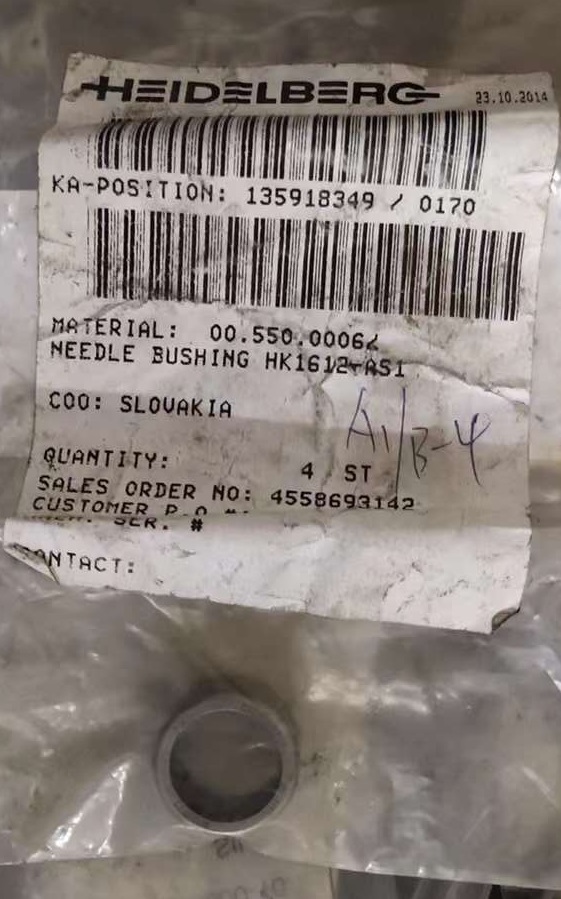

Needle bushing

00.550.0006

- Tên SP:  Vòng bi kim

- HDM-Nr: 00.550.0006

OEM: HK1612-AS1

- Ứng dụng: Máy in Heidelberg CD102, SM102

- Vị trí sử dụng: TKS 71.030.200 -004/05 = 7

- Xuất xứ: Heidelberg - Germany

Needle bushing 00.550.0006

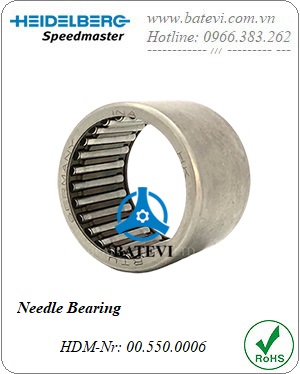

Needle bearing HK1612-AS1
