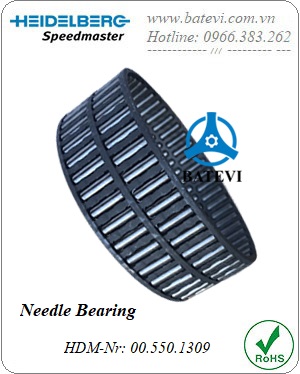

Needle Bearing

00.550.1309

- Tên SP:  Vòng bi kim

- HDM-Nr: 00.550.1390

- Ứng dụng: Máy in Heidelberg CD102, SM102

- Vị trí sử dụng:

- Xuất xứ: Heidelberg - Germany

Needle Bearing 00.550.1309
