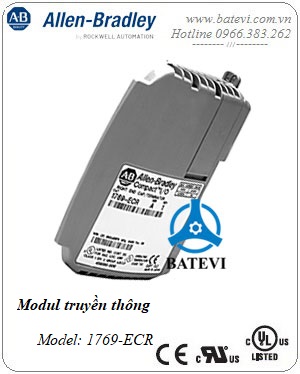

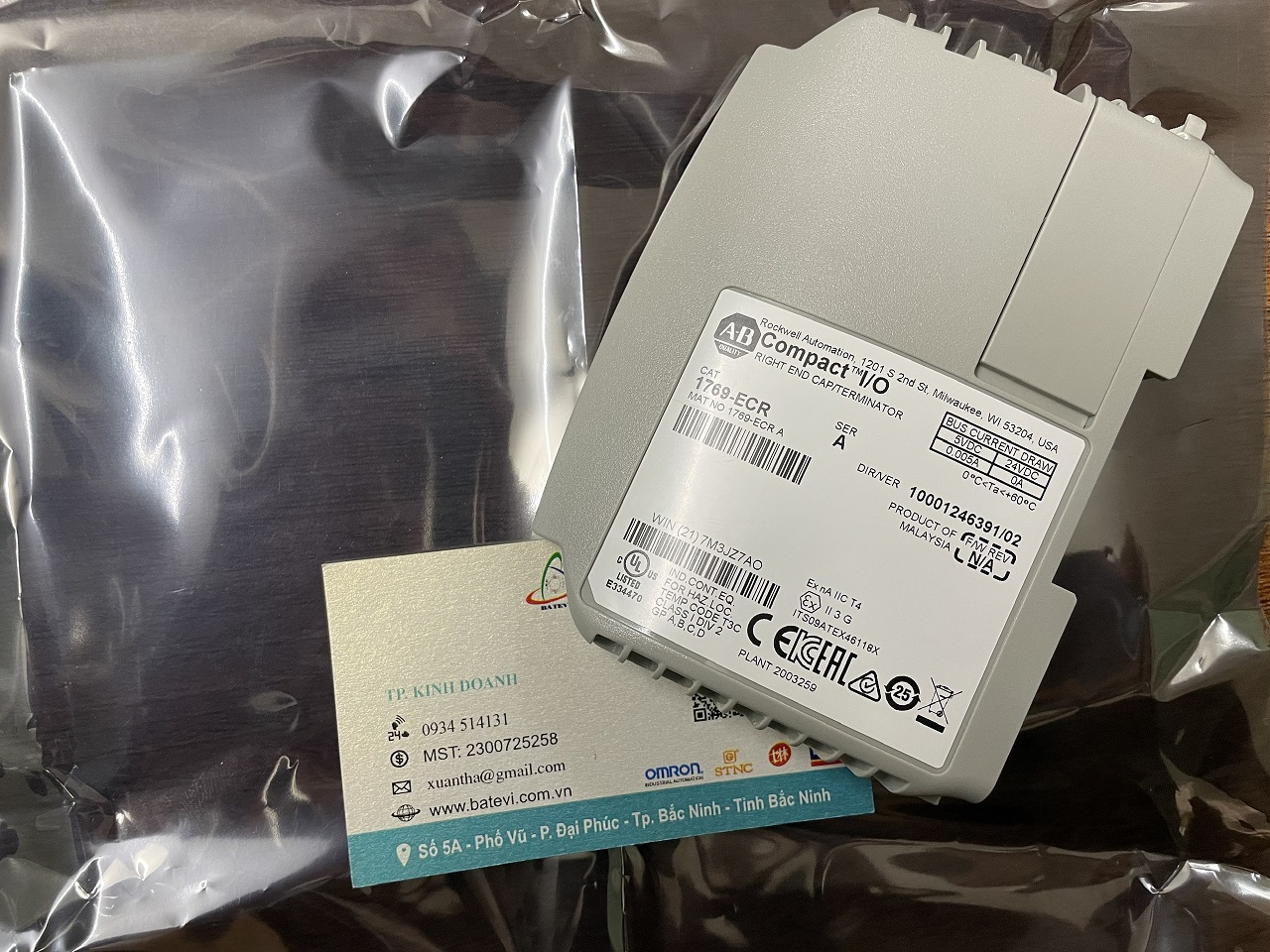

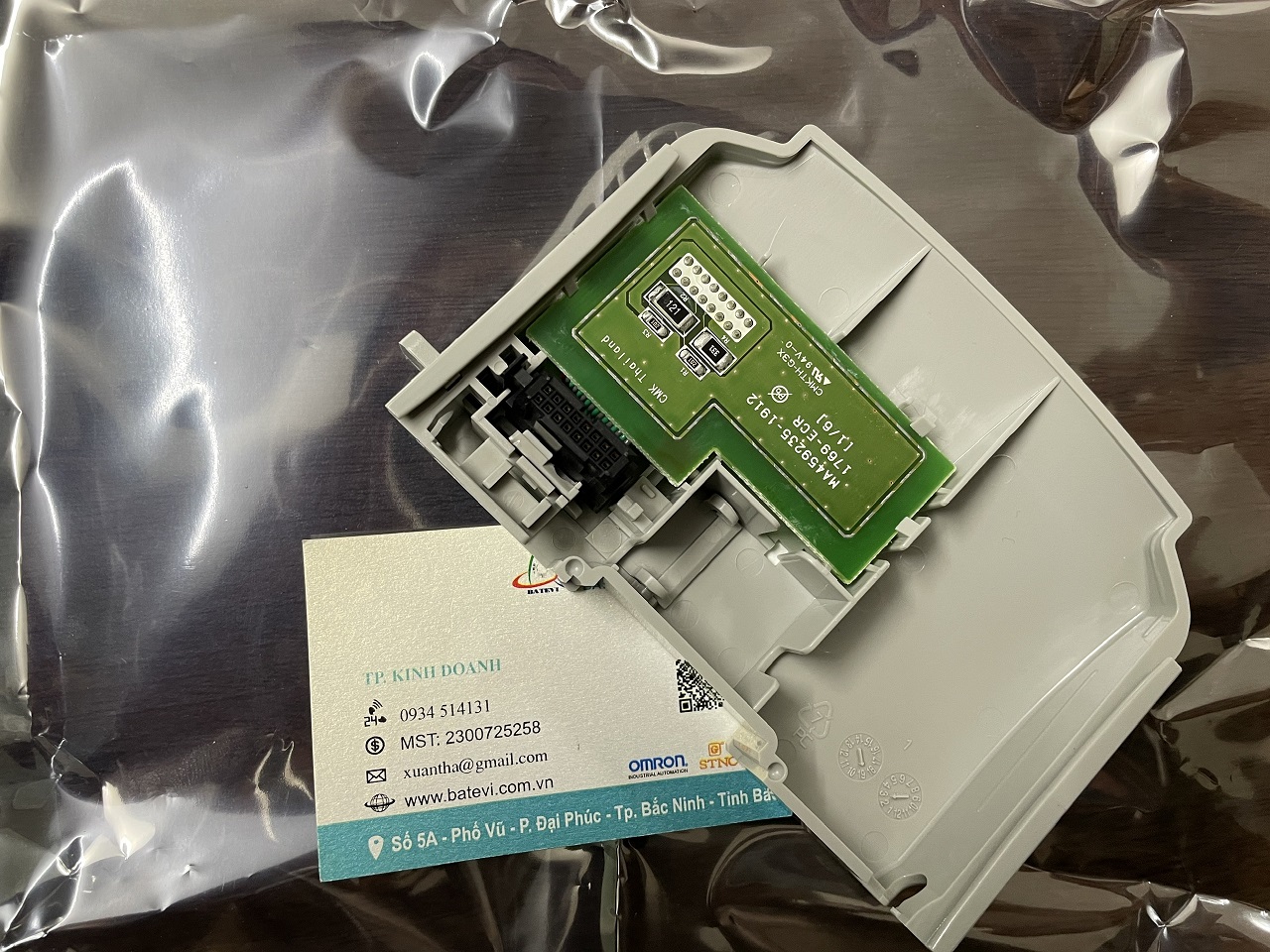

Modul đầu cuối 1769-ECR

End Module, CompactLogix, Right End Cap, to Close off End of I/O Bank, Included in 1769-L23x Controller, Do not need to Order

The 1769 Compact I/O™ controllers, such as the 1769-L32E, require end caps. A 1769-ECR right end cap, a 1769-ECRK right end cap, a 1769-ECLK left end cap, or a1769-ECL left end cap terminates the end of the communication bus. Use this guide to install either end cap.

1768-CNB           ControlNet Bridge Module

1768-CNBR         ControlNet Redundant Bridge Module

1768-EWEB        Ethernet/IP Enhanced Web Server Module

1768-L43S          CompactLogix L43 Safety Processor, 2.0Mbyte Standard Memory, 0.5Mbyte Safety Memory

1768-L45S          CompactLogix L45 Safety Processor, 3.0Mbyte Memory, 1.0Mbyte Safety Memory

1769-ADN          CompactLogix DeviceNet Adaptor Module

1769-AENTR      Ethernet/IP Adaptor

1769-AENTRK    Ethernet/IP Adaptor- Conformally Coated

1769-ARM          Address Reserve Module

1769-ASCII         2 Channel RS232/RS485/RS422 ASCII Module

1769-BA              Replacement Battery

1769-BOOLEAN 24VDC Input/Output Boolean Control Module

1769-ECRK         Right End Cap/Terminator - Conformally Coated

1769-HSC           2/4 Channel High Speed Counter/Encoder Module

1769-IA16          16 Point 120 VAC Input Module

1769-IA16K        16 Point 120 VAC Input Module - Conformally Coated

1769-IA8I           8 Point 120 VAC Individually Isolated Input Module

1769-IF16C         16 Channel Compact High- density Analog Current Input Module

1769-IF16CK      16 Channel Compact High- density Analog Current Input Module- Conformally Coated

1769-IF16V        16 Channel Compact High- density Analog Voltage Input Module

1769-IF16VK      16 Channel Compact High- density Analog Voltage Input Module- Conformally Coated

1769-IF4             4 Channel Analog Current/Voltage Input Module

1769-IF4K           4 Channnel Analog Current/Voltage Input Module - Conformally Coated

1769-IF4FXOF2F              High Resolution, High Speed 4 In/2 Out Analog Combination Module

1769-IF4I            4 Channel Analog Current/Voltage Isolated Input Module

1769-IF4IK          4 Channel Analog Current/Voltage Isolated Input Module- Conformally Coated

1769-IF4XOF2    8 Bit Resolution, High Speed 4 In/2 Out Anlg. Comb

1769-IF8             8 Channel Analog Current/Voltage Input Module

1769-IF8K           8 Channel Analog Current/Voltage Input Module - Conformally Coated

1769-IG16          16 Point 5 VDC TTL Input Module

1769-IM12         12 Point 240 VAC Input Module

1769-IQ16          16 Point 24 VDC Sinking/Sourcing Input Module

1769-IQ16F        16 Point High Speed 24VDC Input Module

1769-IQ16K        16 Point 24 VDC Sinking/Sourcing Input Module - Conformally Coated

1769-IQ32          32 Point 24VDC Input Module

1769-IQ32K        32 Point 24VDC Input Module - Conformally Coated

1769-IQ32T        32 Point 24VDC Input Module - Single Wide

1769-IQ6XOW4 Combo 6Pt 24 VDC Snk/Src In, 4Pt VAC/VDC Relay Out

1769-IR6             6 Channel RTD/Resistance Input Module

1769-IR6K           6 Channel RTD/Resistance Input Module - Conformally Coated

1769-IT6             6 Channel Thermocouple/Mv Input Module

1769-IT6K           6 Channel Thermocouple/Mv Input Module - Conformally Coated

1769-L16ER-BB1B           CompactLogix 5370 L1 Controller, Dual Ethernet w/DLR capability, 384KB Memory, 6 I/O Expansion via 1734 POINT I/O, 4 Ethernet IP Nodes, 24VDC. This Controller uses POINT I/O (1734) backplane. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

1769-L18ER-BB1B           CompactLogix 5370 L1 Controller, Dual Ethernet w/DLR capability, 512KB Memory, 8 I/O Expansion via 1734 POINT I/O, 8 Ethernet IP Nodes, 24VDC. This Controller uses POINT I/O (1734) backplane. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

1769-L18ERM-BB1B        CompactLogix 5370 L1 Controller, Dual Ethernet w/DLR capability, 512KB Memory, 8 I/O Expansion via 1734 POINT I/O, 8 Ethernet IP Nodes, 2 Axis CIP motion with Kinematics function, 24VDC. This Controller uses POINT I/O (1734) backplane. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

1769-L18ERM-BB1BK     CompactLogix 5370 L1 Controller, Dual Ethernet w/DLR capability, 512KB Memory, 8 I/O Expansion via 1734 POINT I/O, 8 Ethernet IP Nodes, 2 Axis CIP motion with Kinematics function, 24VDC. This Controller uses POINT I/O (1734) backplane. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated

1769-L19ER-BB1B           CompactLogix 5370 L1 Controller, Dual Ethernet w/DLR capability, 1MB Memory, 8 I/O Expansion via 1734 POINT I/O, 8 Ethernet IP Nodes, 24VDC. This Controller uses POINT I/O (1734) backplane. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

1769-L19ER-BB1BK         CompactLogix 5370 L1 Controller, Dual Ethernet w/DLR capability, 1MB Memory, 8 I/O Expansion via 1734 POINT I/O, 8 Ethernet IP Nodes, 24VDC. This Controller uses POINT I/O (1734) backplane. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated

1769-L24ER-QB1B           CompactLogix 5370 L2 Controller, 2 EtherNet/IP ports with Device Level Ring Capability, 750KB Memory, 16 DC Inputs, 16 DC Outputs, Up To 4 1769 I/O Expansion Modules, 8 EtherNet/IP and 120 TCP Connections, 24V DC Input Embedded Power Supply,With 1GB SD Card, Can Support Up To 2GB SD Card, 1 USB Port.

1769-L24ER-QBFC1B      CompactLogix 5370 L2 Controller, 2 EtherNet/IP Ports With Device Level Ring Capability, 750KB Memory, 16 DC Inputs, 16 DC Outputs, 4 Universal Analog Inputs, 2 Analog Outputs, 4 High Speed Counters, Up To 4 1769 I/O Expansion Modules, 8 EtherNet/IP And 120 TCP Connections, 24V DC Input Embedded Power Supply, With 1GB SD card, Can Support Up To 2GB SD Card, 1 USB Port.

1769-L24ER-QBFC1BK    CompactLogix 5370 L2 Controller, Dual Ethernet w/DLR capability, 750KB Memory, 4 I/O Expansion, 8 Ethernet IP Nodes, 24VDC. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated

1769-L27ERM-QBFC1B   CompactLogix 5370 L2 Controller, 2 EtherNet/IP Ports with Device Level Ring Capability, 1MB Memory, 16 DC Inputs, 16 DC Outputs, 4 Universal Analog Inputs, 2 Analog Outputs, 4 High Speed Counters, Up To 4 1769 I/O Expansion Modules, 4 CIP Motion Axis With Kinematics Function, 16 EtherNet/IP and 120 TCP Connections, 24V DC Embedded Power Supply, With 1GB SD Card, Can Support Up To 2GB SD Card, 1 USB Port.

1769-L30ER        CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 1MB Memory, 8 I/O Expansion, 16 Ethernet IP Nodes. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

1769-L30ERK      CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 1MB Memory, 8 I/O Expansion, 16 Ethernet IP Nodes. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated

1769-L30ERM    CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 1MB Memory, 8 I/O Expansion, 16 Ethernet IP Nodes, 4 Axis CIP motion with Kinematics function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

1769-L30ERMK  CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 1MB Memory, 8 I/O Expansion, 16 Ethernet IP Nodes, 4 Axis CIP motion with Kinematics function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated

1769-L30ERMS  CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 1MB standard + 0.5MB Safety Memory, 8 I/O Expansion, 16 Ethernet IP Nodes, 4 Axis CIP motion, Kinematics with Integrated Safety function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

1769-L30ER-NSE              CompactLogix 5370 L3 Controller, Dual Ethernet w/DLR capability, 1MB Memory, 8 I/O Expansion, 16 Ethernet IP Nodes, No Supercap for RTC. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

1769-L33ER        CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 2MB memory, 16 I/O Expansion, 32 Ethernet IP Nodes. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

1769-L33ERK      Dual Ethernet w/DLR capability, 2MB memory, 16 I/O Expansion, 32 Ethernet IP Nodes. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated

1769-L33ERM    CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 2MB memory, 16 I/O Expansion, 32 Ethernet IP Nodes, 8 Axis CIP motion with Kinematics function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

1769-L33ERMK  Dual Ethernet w/DLR capability, 2MB memory, 16 I/O Expansion, 32 Ethernet IP Nodes, 8 Axis CIP motion with Kinematics function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated

1769-L33ERMO Armor CompactLogix 5370 On Machine Controller, 2MB Memory, 16 I/O Expansion, 32 Ethernet/IP notes, 8 Axis CIP motion with Kinematics function, IP67, Controllers are shipped with 1GB SD card and support up to 2GB SD card.

1769-L33ERMOS             Armor Compact GuardLogix 5370 On Machine safety Controller, 2MB/1MB Memory, 16 I/O Expansion, 32 Ethernet/IP notes, 8 Axis CIP motion with Kinematics function, IP67, Controllers are shipped with 1GB SD card and support up to 2GB SD card.

1769-L33ERMS  CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 2MB standard + 1MB safety memory, 16 I/O Expansion, 32 Ethernet IP Nodes, 8 Axis CIP motion, Kinematics with Integrated Safety function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

1769-L33ERMSK              CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 2MB standard + 1MB safety memory, 16 I/O Expansion, 32 Ethernet IP Nodes, 8 Axis CIP motion, Kinematics with Integrated Safety function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card. - Conformally Coated

1769-L36ERM    CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 3MB memory, 30 I/O Expansion, 48 Ethernet IP Nodes, 16 Axis CIP motion with Kinematics function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

1769-L36ERMO Armor CompactLogix 5370 On Machine Controller, 3MB Memory, 30 I/O Expansion, 48 Ethernet/IP notes, 16 Axis CIP motion with Kinematics function, IP67, Controllers are shipped with 1GB SD card and support up to 2GB SD card.

1769-L36ERMOS             Armor Compact GuardLogix 5370 On Machine safety Controller, 3MB/1.5MB Memory, 30 I/O Expansion, 48 Ethernet/IP notes, 16 Axis CIP motion with Kinematics function, IP67, Controllers are shipped with 1GB SD card and support up to 2GB SD card.

1769-L36ERMS  CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 3MB standard + 1.5MB safety memory, 30 I/O Expansion, 48 Ethernet IP Nodes, 16 Axis CIP motion, Kinematics with Integrated Safety function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.

1769-L37ERM    CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 4MB memory, 30 I/O Expansion, 64 Ethernet IP Nodes, 16 Axis CIP motion with Kinematics function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.
