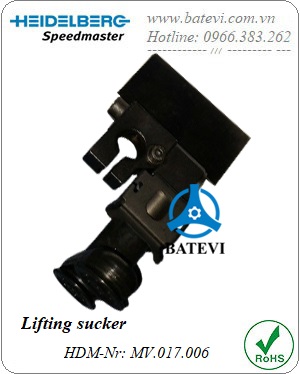

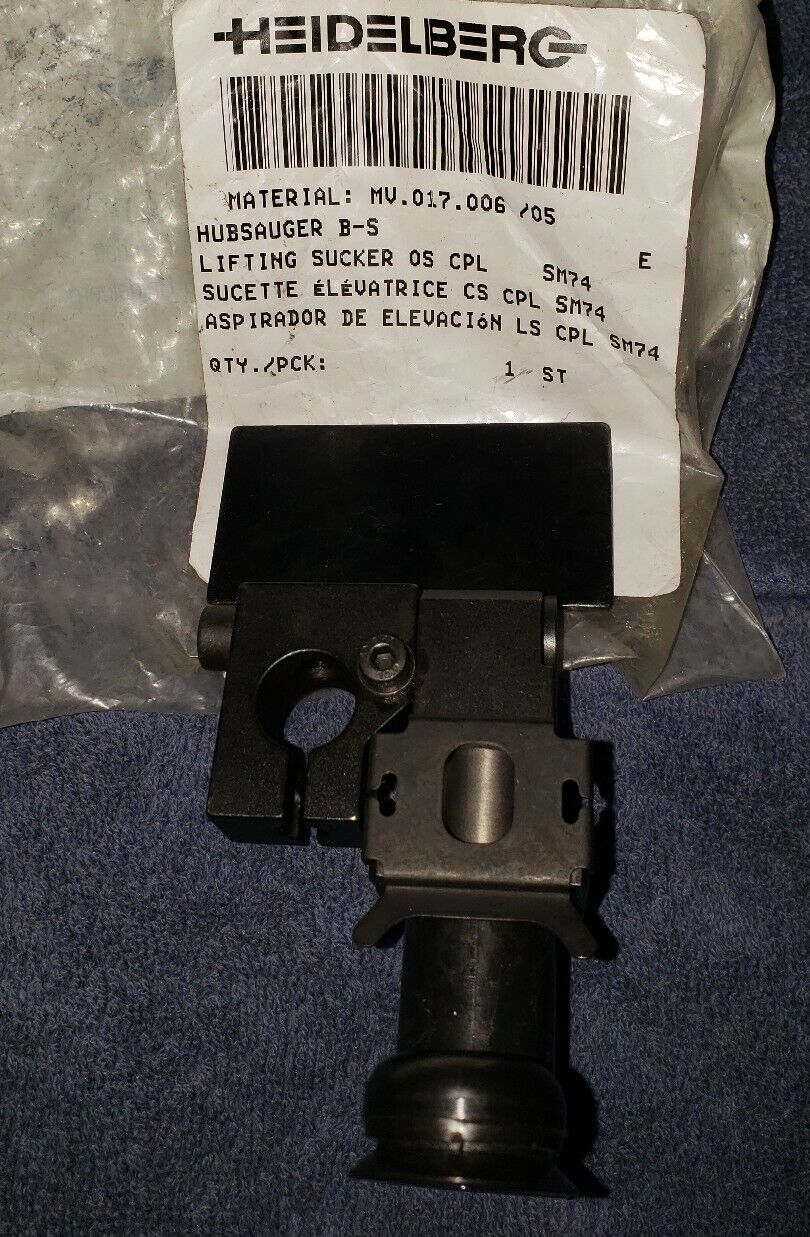

Lifting sucker

MV.017.006

- Tên SP: Mồm hút giấy

- HDM-Nr: MV.017.006

- Ứng dụng: Máy in Heidelberg SM74, CD74

- Vị trí sử dụng:  TKS L3.028.000 -006/00 = 1.9

- Xuất xứ: Heidelberg - Germany

Pneumatic Spring 00.580.5622

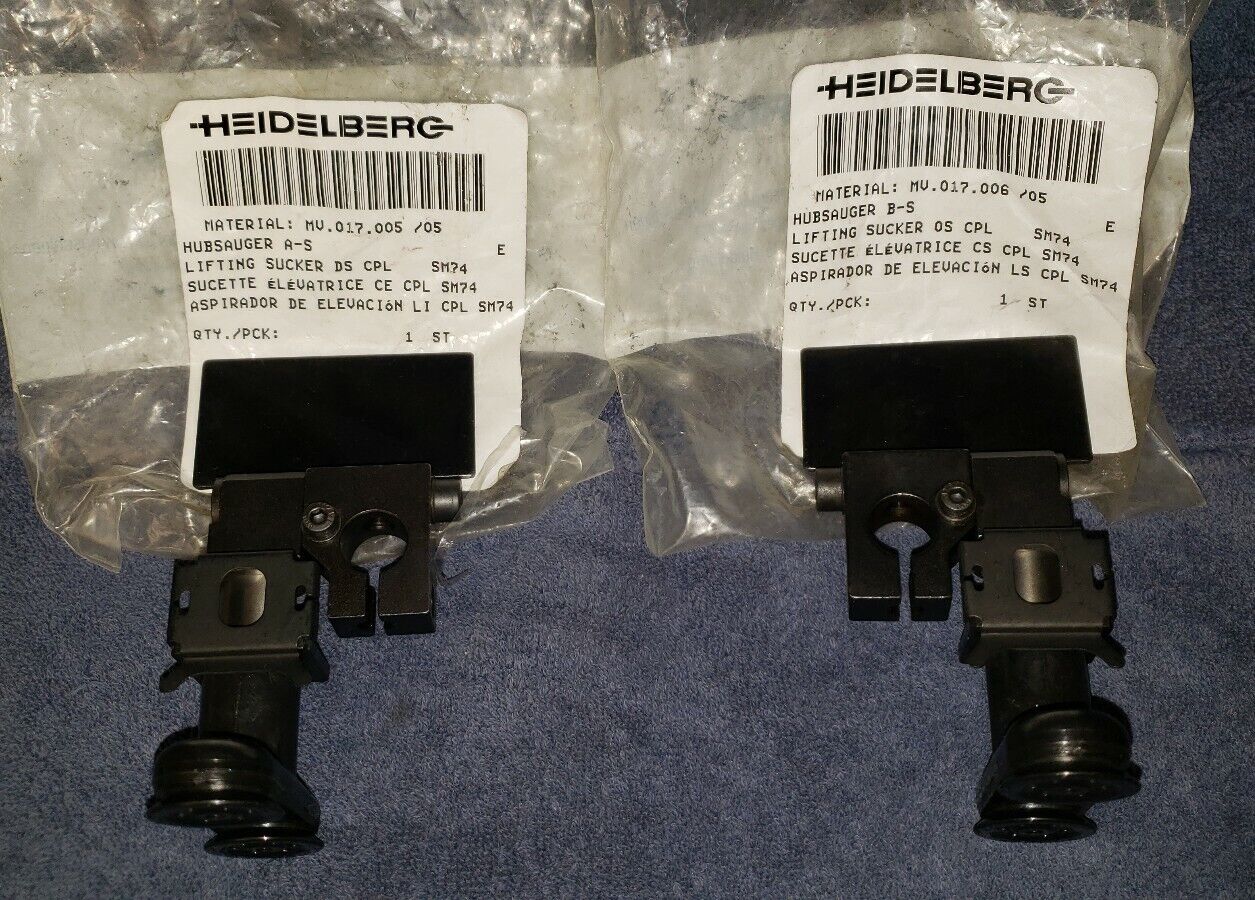

Lifting sucker MV.017.005
