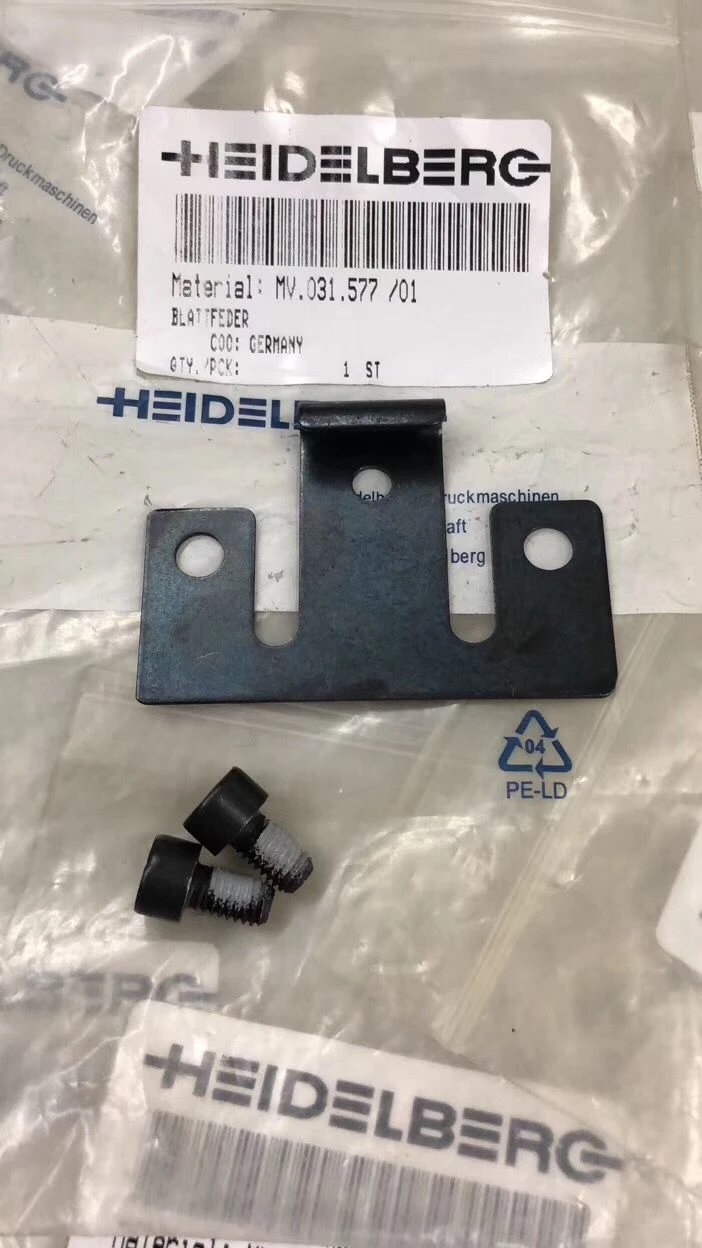

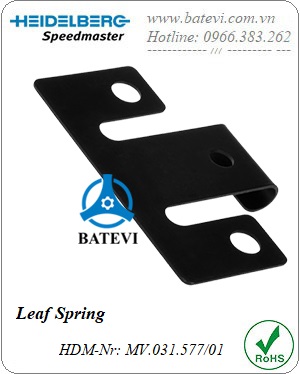

Leaf Spring

MV.031.577/01

- Tên SP:  Móc treo

- HDM-Nr: MV.031.577

- Ứng dụng: Máy in Heidelberg

- Vị trí sử dụng:

- Xuất xứ: Heidelberg - Germany
