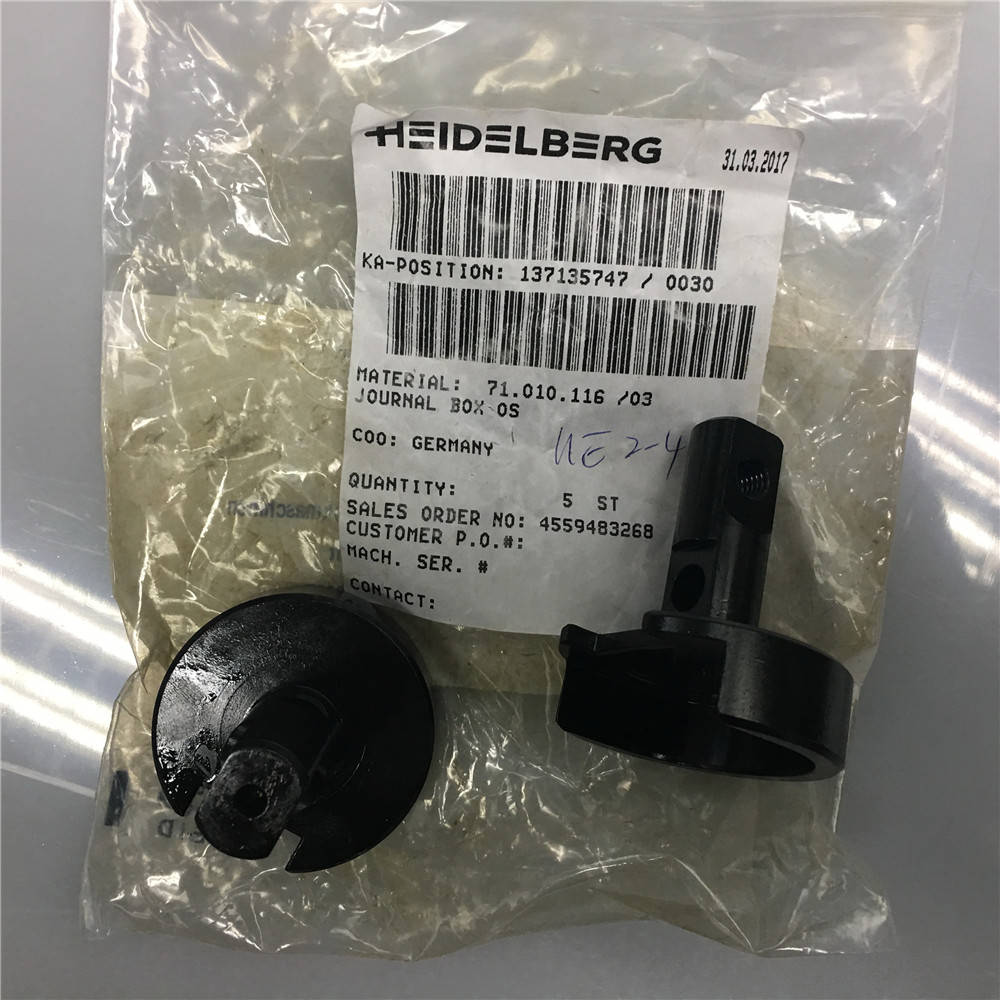

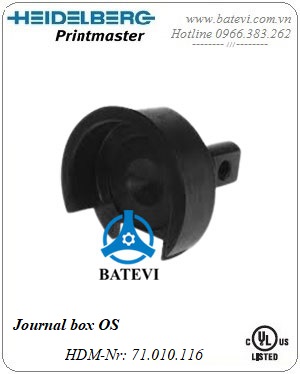

Journal box OS 71.010.116

Journal box 71.010.116

Bát lô  71.010.116

- Tên SP: Journal box OS

- Mã HDM-Nr: 71.010.116

- Ứng dụng: Heidelberg CD102, SM102

- Vị trí sử dụng: TKS 82.010.000 -001/10-11

- Xuất xứ: Heidelberg - Germany

00.550.0229 Gasket GR30x37x4

00.550.0013 HK3020-AS1 Needle bushing

71.010.103 Pull rod

00.550.0002 HK1210-AS1 Needle bushing

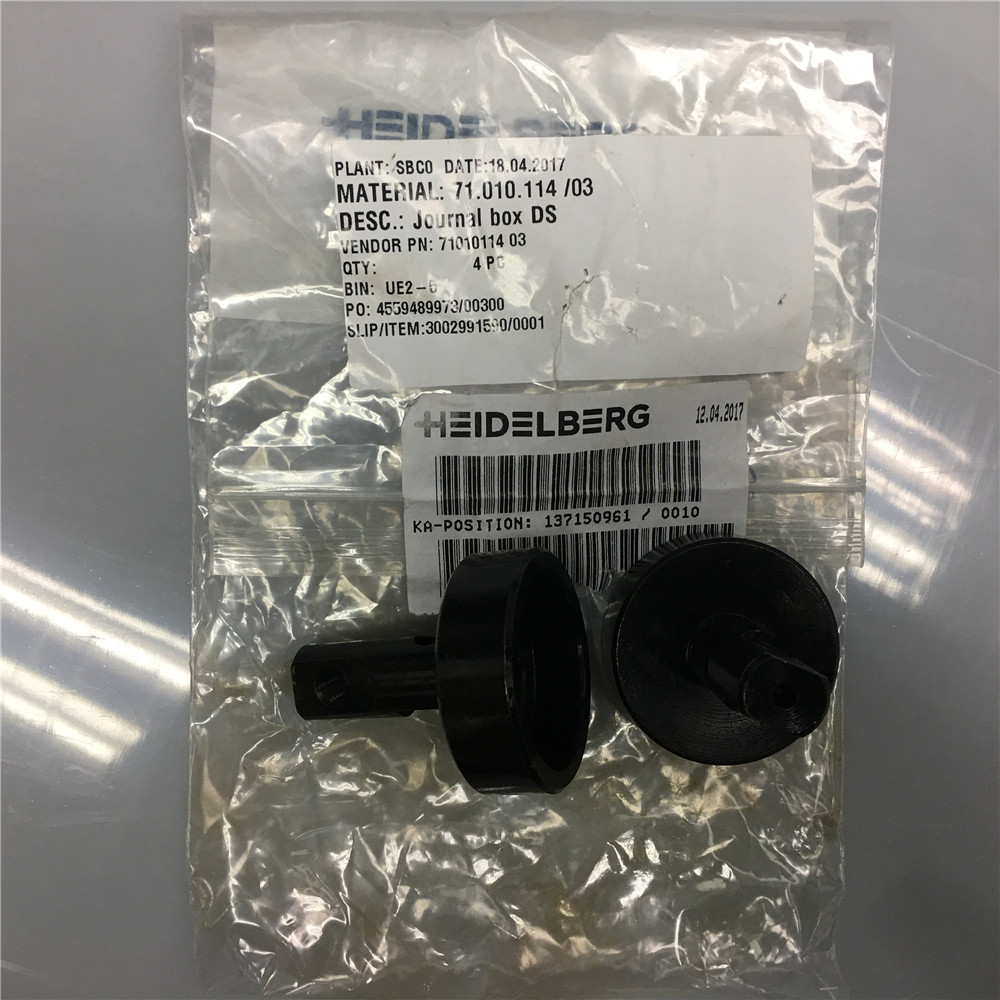

71.010.114 Journal box DS
