66.030.028

- Tên SP:  Trục khuỷu

- HDM-Nr: 66.030.028

- Ứng dụng: Máy in Heidelberg CD102

- Vị trí sử dụng: TKS 82.030.700 -002/04 = 1.2

- Xuất xứ: Heidelberg - Germany

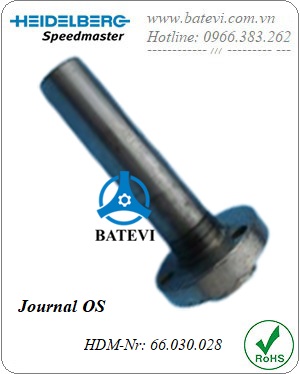

Journal 66.030.028
