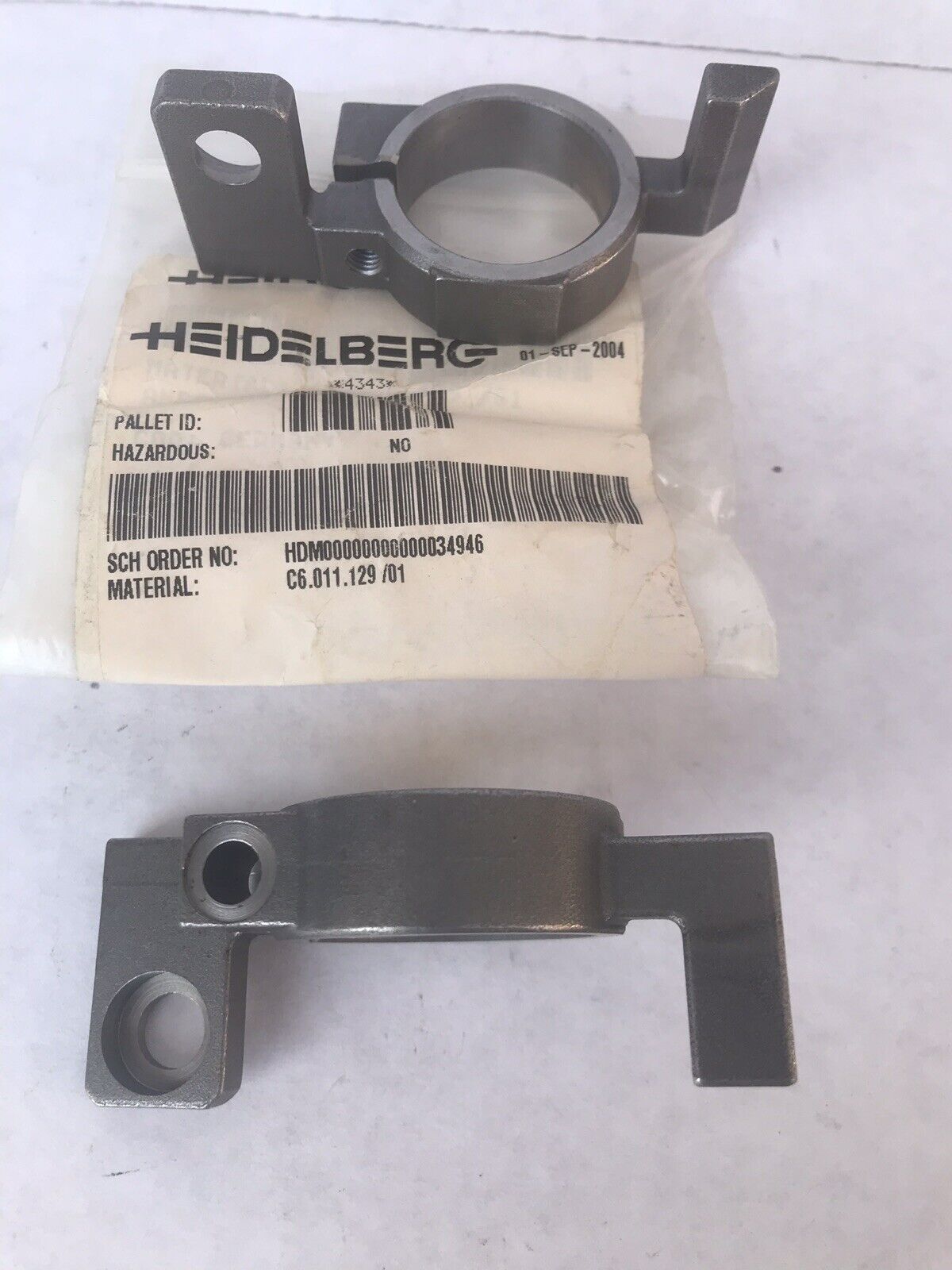

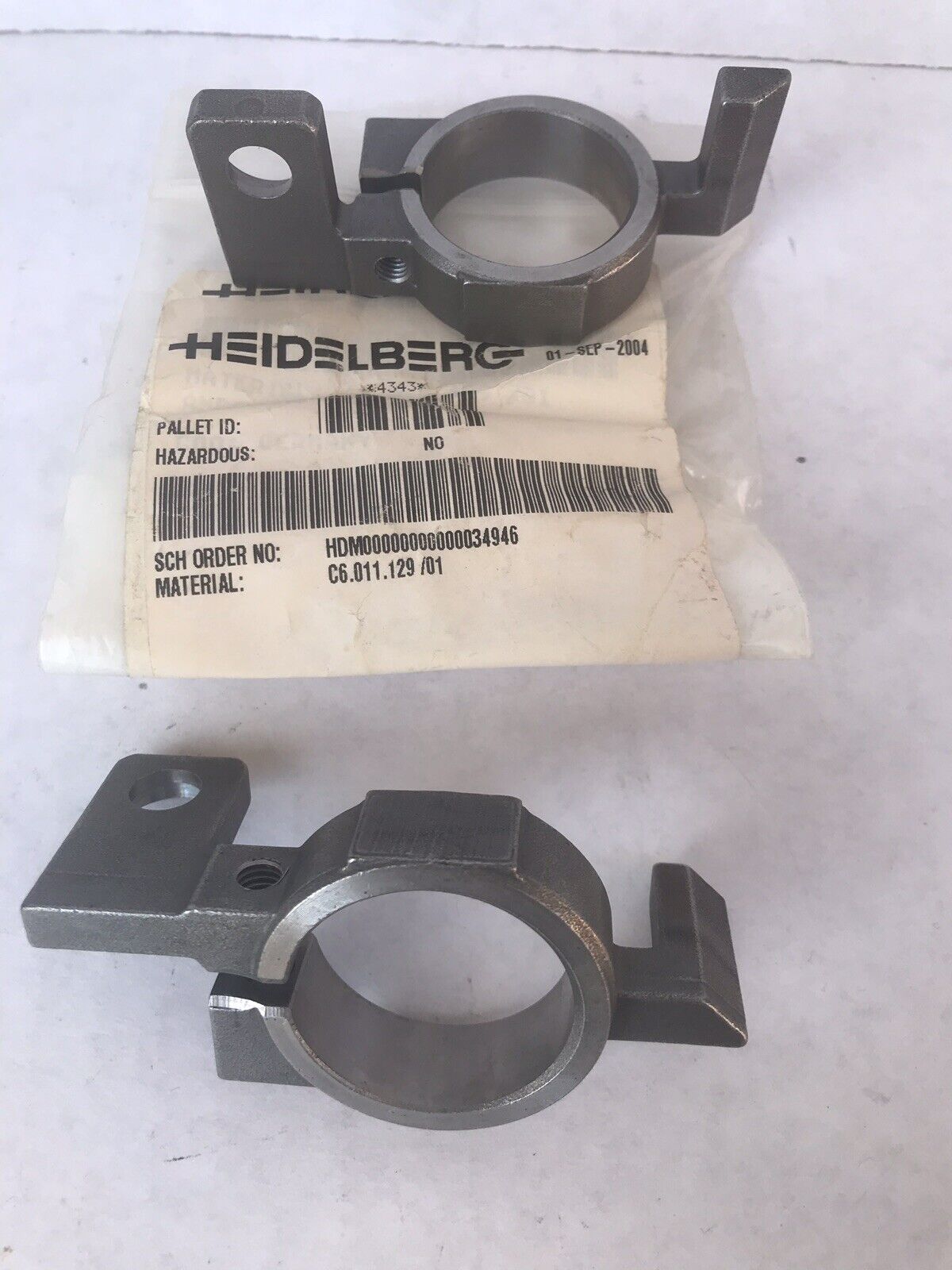

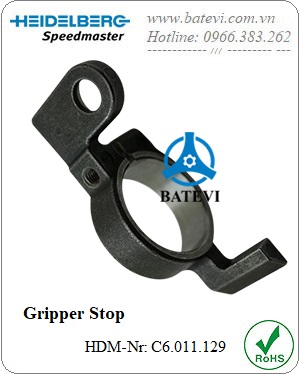

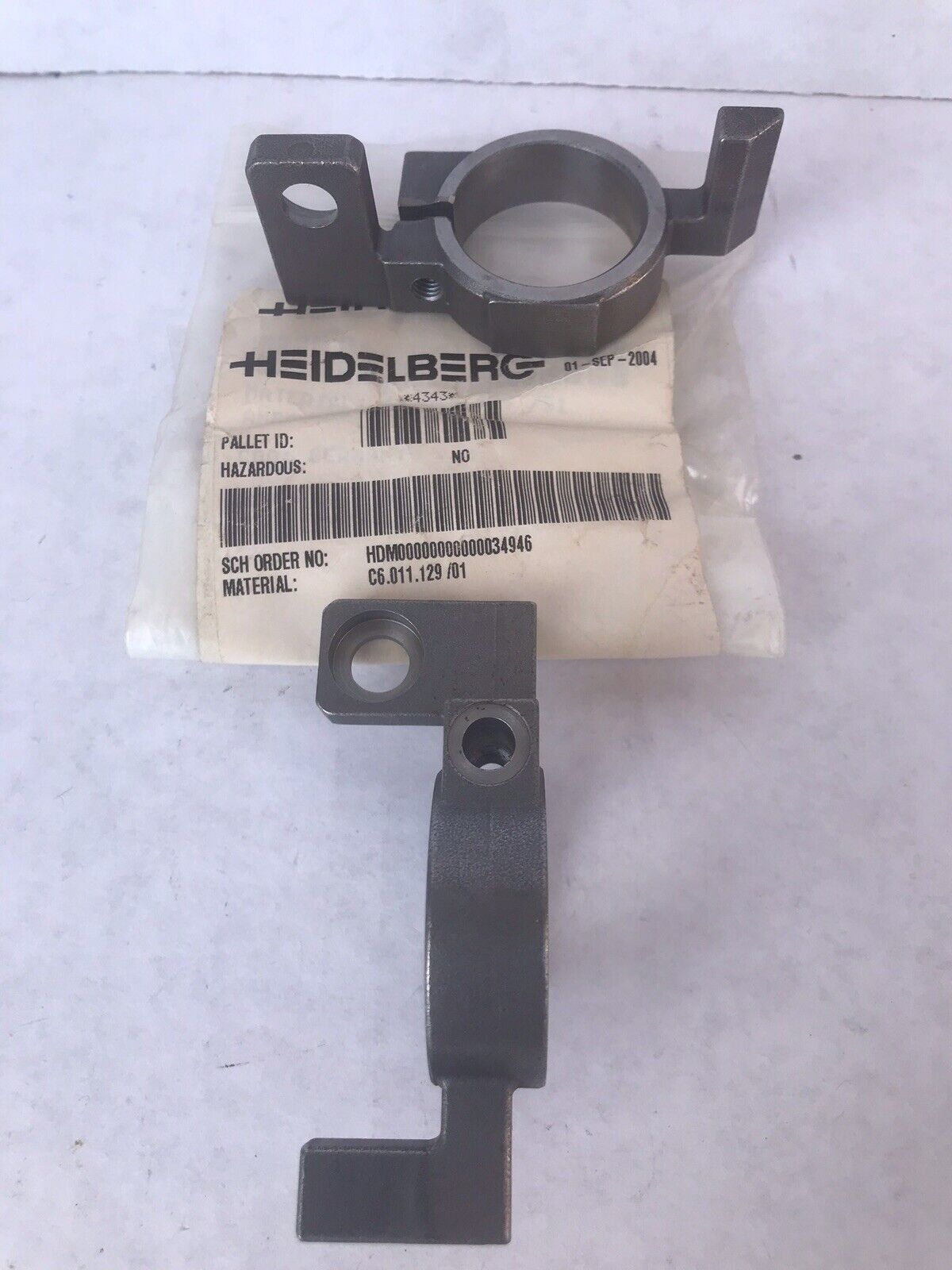

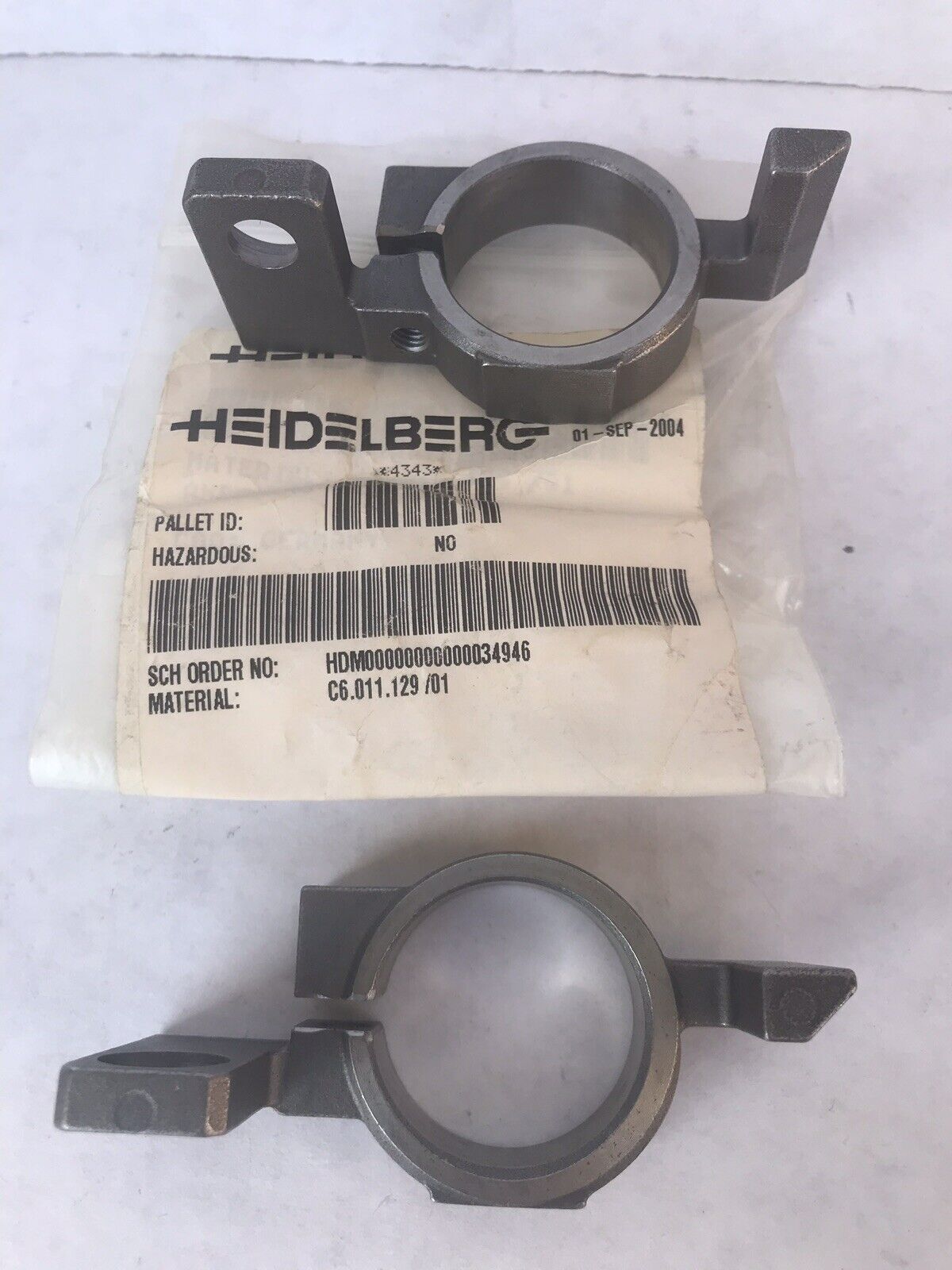

Gripper Stop C6.011.129

- Tên SP: Mỏ nhíp A side

- HDM-Nr: C6.011.129/01

- Ứng dụng: Máy in Heidelberg CD102, SM102

- Vị trí sử dụng:  TKS C3.005.400 -004/04 = 9

- Xuất xứ: Heidelberg - Germany
