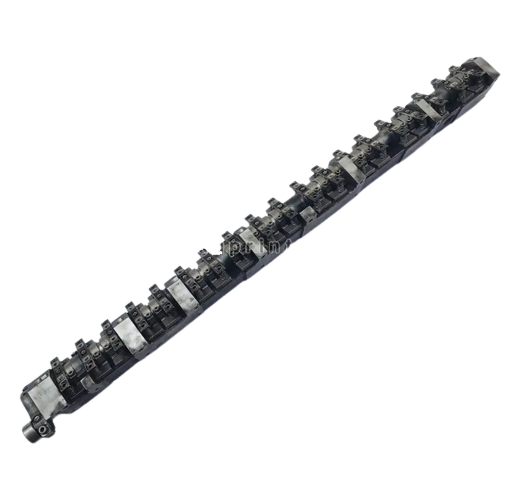

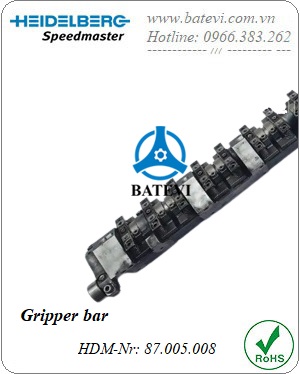

Gripper bar 87.005.008

- Tên SP:  Giàn nhíp

- HDM-Nr: 87.005.008

- Ứng dụng: Máy in Heidelberg CD102

- Vị trí sử dụng: TKS C3.005.400 -003/08 = 1

- Xuất xứ: Heidelberg - Germany

Gripper bar 87.005.008
