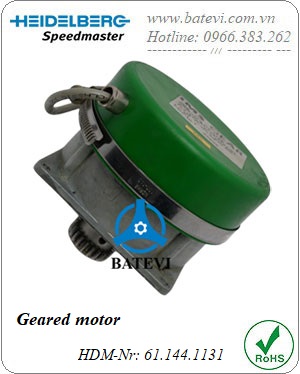

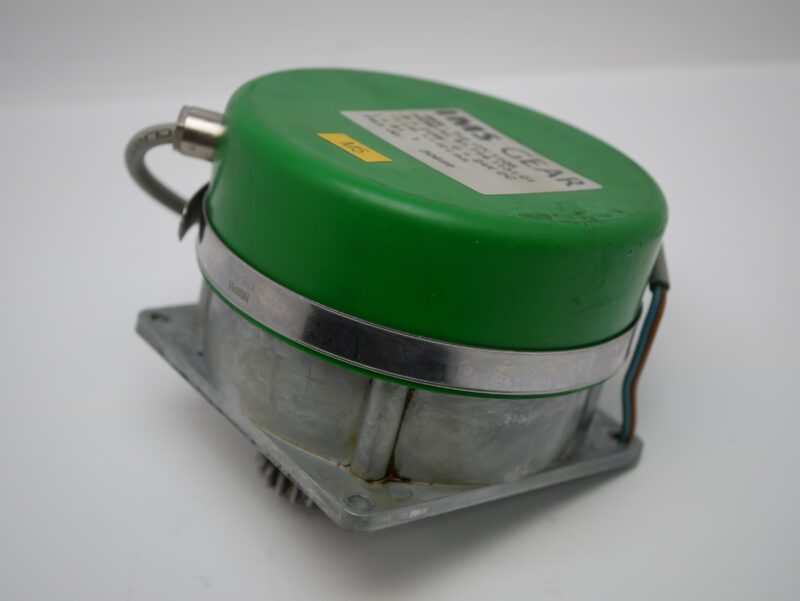

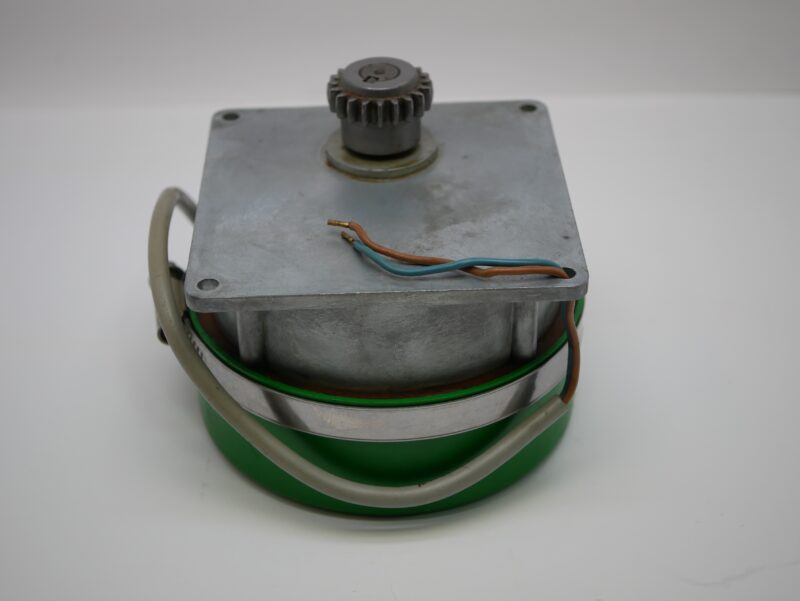

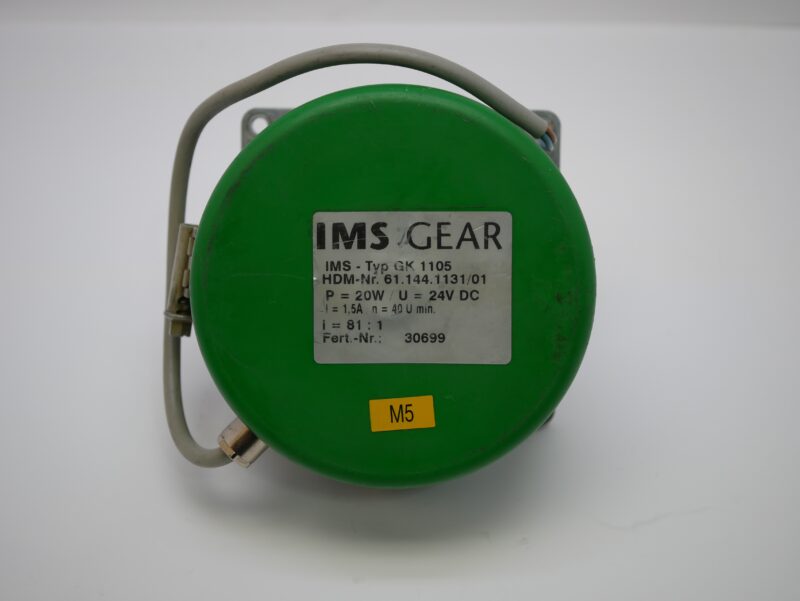

Geared motor 61.144.1131

- Tên SP: Geared motor

- HDM-Nr:  61.144.1131

- Ứng dụng: Máy in Heidelberg CD102, SM102

- Vị trí sử dụng:  TKS C4.312.000 -002/11 - XM5

- Xuất xứ: Heidelberg - Germany

Geared motor 61.144.1131

C4.312.001F Worm gear cpl

C4.312.001 Bearing bracket

93.312.008 Worm

00.550.0407 Needle bushing HK1522-AS1

00.550.0071 Axial bearing disc AS 1528

00.550.0070 Axial needle bearing cage AXK 1528

00.550.0591 Axial bearing disc AS 1226

00.550.1179 Axial needle bearing cage AXK 1226

00.580.2854 Clutch half

C4.312.002 Support

00.580.0291 Lubrication-free bushing

91.008.521 Gear

93.312.009 Gear

C4.312.003 Bearing plate

00.580.0796 Lubrication-free bushing

71.186.0317 box

93.312.004 Support

00.580.0687 Clutch collar

00.520.1192 Self-locking nut

00.781.5472 Serrated lock washer

61.144.1131 Geared motor

71.186.5172 Potentiometer
