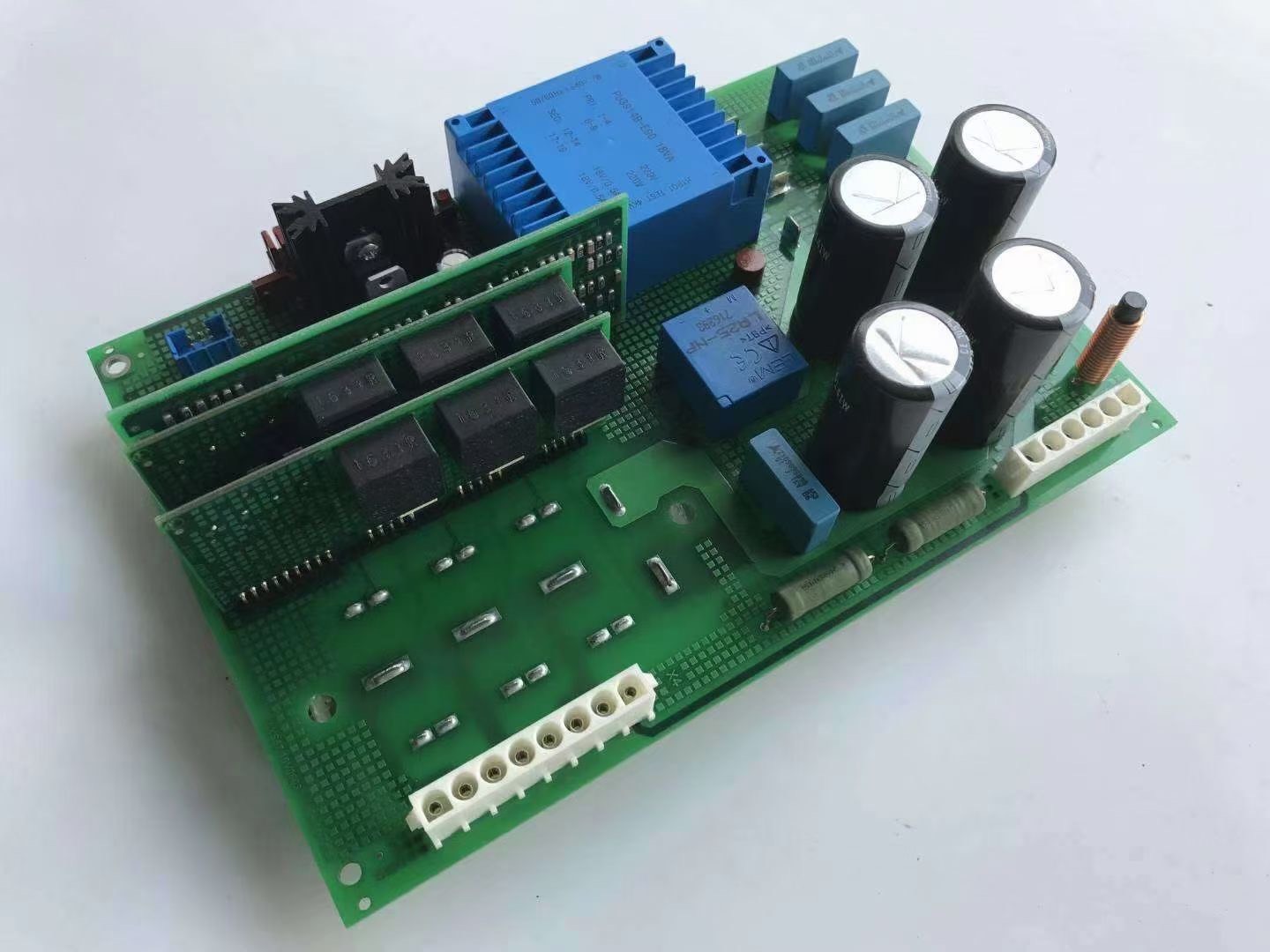

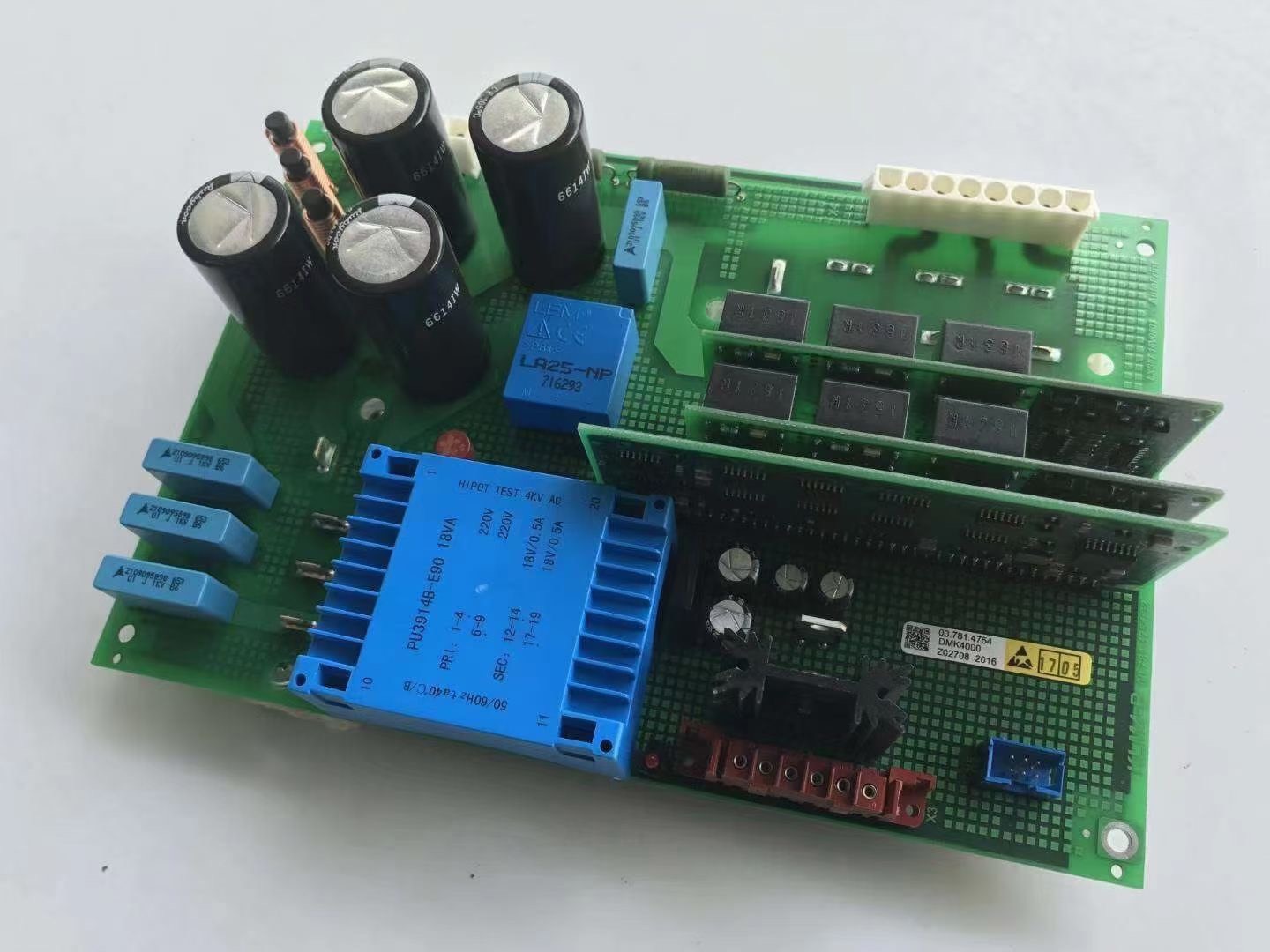

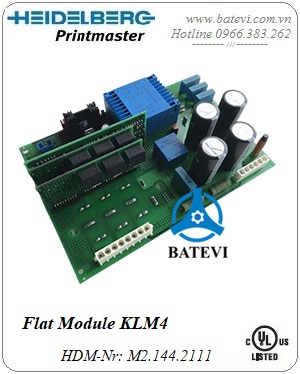

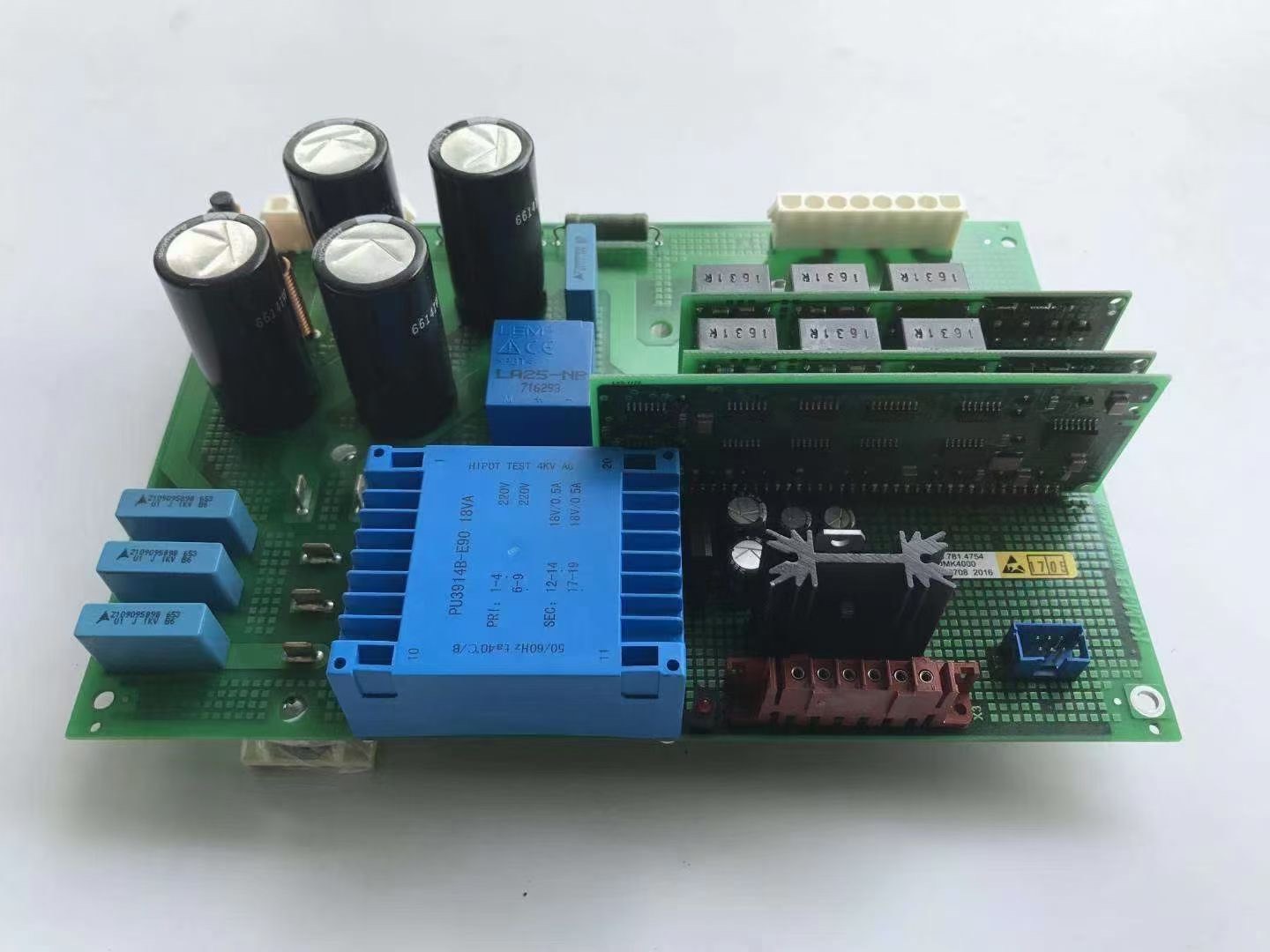

Flat Module M2.144.2111 KLM4

- Tên SP: Flat Module

- HDM-Nr: M2.144.2111

                 00.785.0031

                 00.781.4754

- Chủng loại: KLM4

- Ứng dụng:  Máy in Heidelber SM74, CD102

- Vị trí sử dụng:  TKS M4.146.2002-001/00 - 15A22

- Xuất xứ: Heidelberg - Germany

Bản mạch M2.144.2111

Flat Module M2.144.2111 KLM4

Flat Module M2.144.2111

Flat Module M2.144.2111 KLM4

Flat Module KLM4

KLM4 00.785.0031

KLM4 00.781.4754
