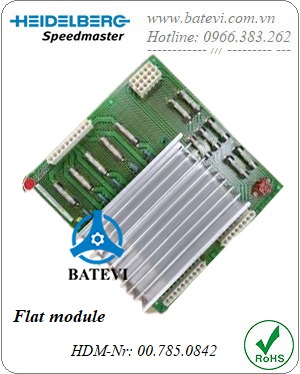

Flat module 00.785.0842

- Tên SP: Bản mạch JSM

- HDM-Nr:00.785.0842

- Ứng dụng: máy in Heidelberg  CD102

- Vị trí sử dụng:   TKS CP.186.4014-001/11 = JSM

- Xuất xứ: Heidelberg - Germany

Flat module 00.785.0842
