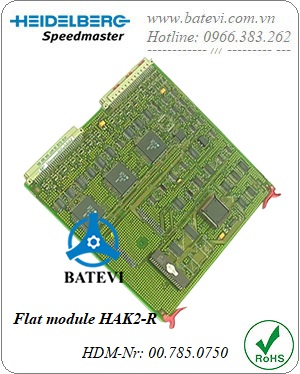

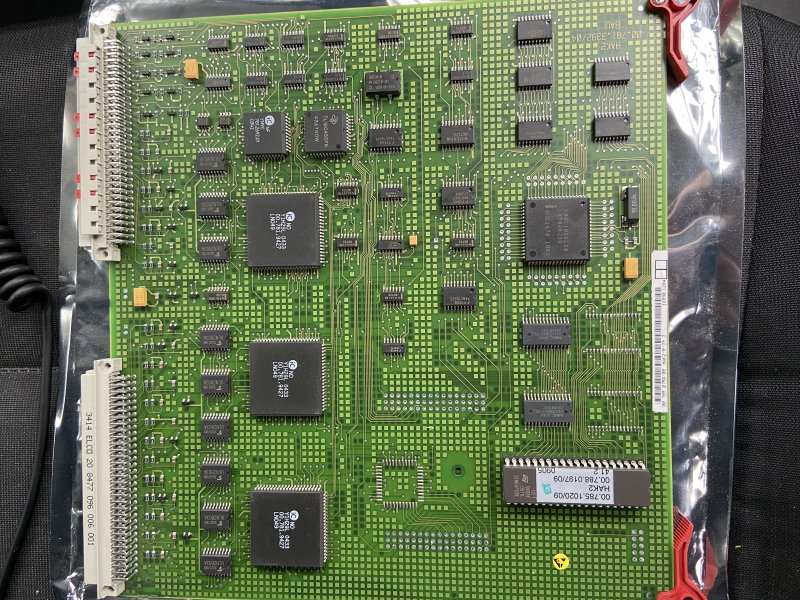

Flat module 00.785.0750

- Tên SP: Bản mạch

- HDM-Nr: 00.785.0750

- Ứng dụng: Máy in Heidelberg SM74

- Vị trí sử dụng:   TKS M2.147.6001-001/30  = 15HAK2

- Xuất xứ: Heidelberg - Germany
