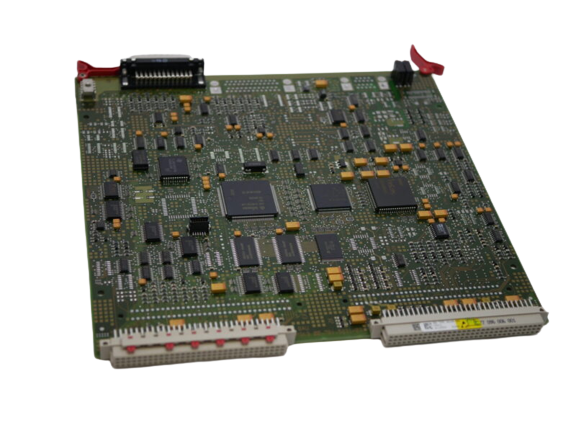

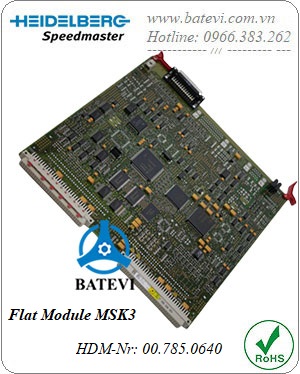

Flat Module MSK3

00.785.0640

- Tên SP: Bản mạch MSK3

- HDM-Nr: 00.785.0640

- Ứng dụng: Máy in Heidelberg  CD102, SM74

- Vị trí sử dụng:   TKS C2.146.5011-001/20 = MSK3

- Xuất xứ: Heidelberg - Germany

Flat Module MSK3 00.785.0640
