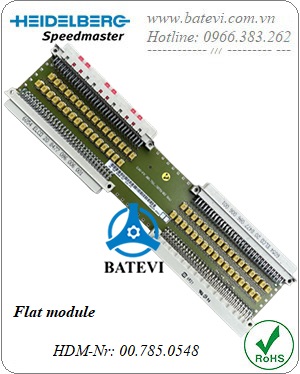

Flat module 00.785.0548

- Tên SP: Bản mạch 15SEK-FK

- HDM-Nr: 00.785.0548

- Ứng dụng: Máy in Heidelberg SM74

- Vị trí sử dụng:  TKS M2.147.6001-001/30  = 15SEK-FK

- Xuất xứ: Heidelberg - Germany

Flat module 00.785.0548
