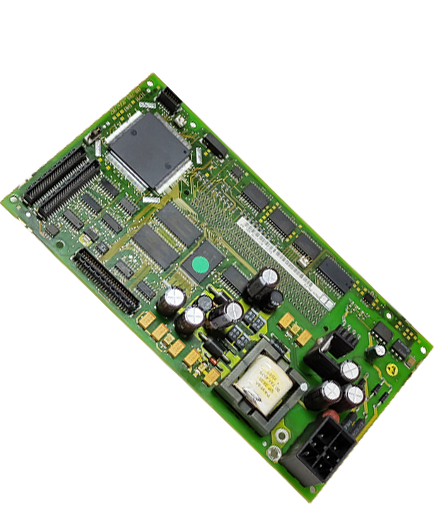

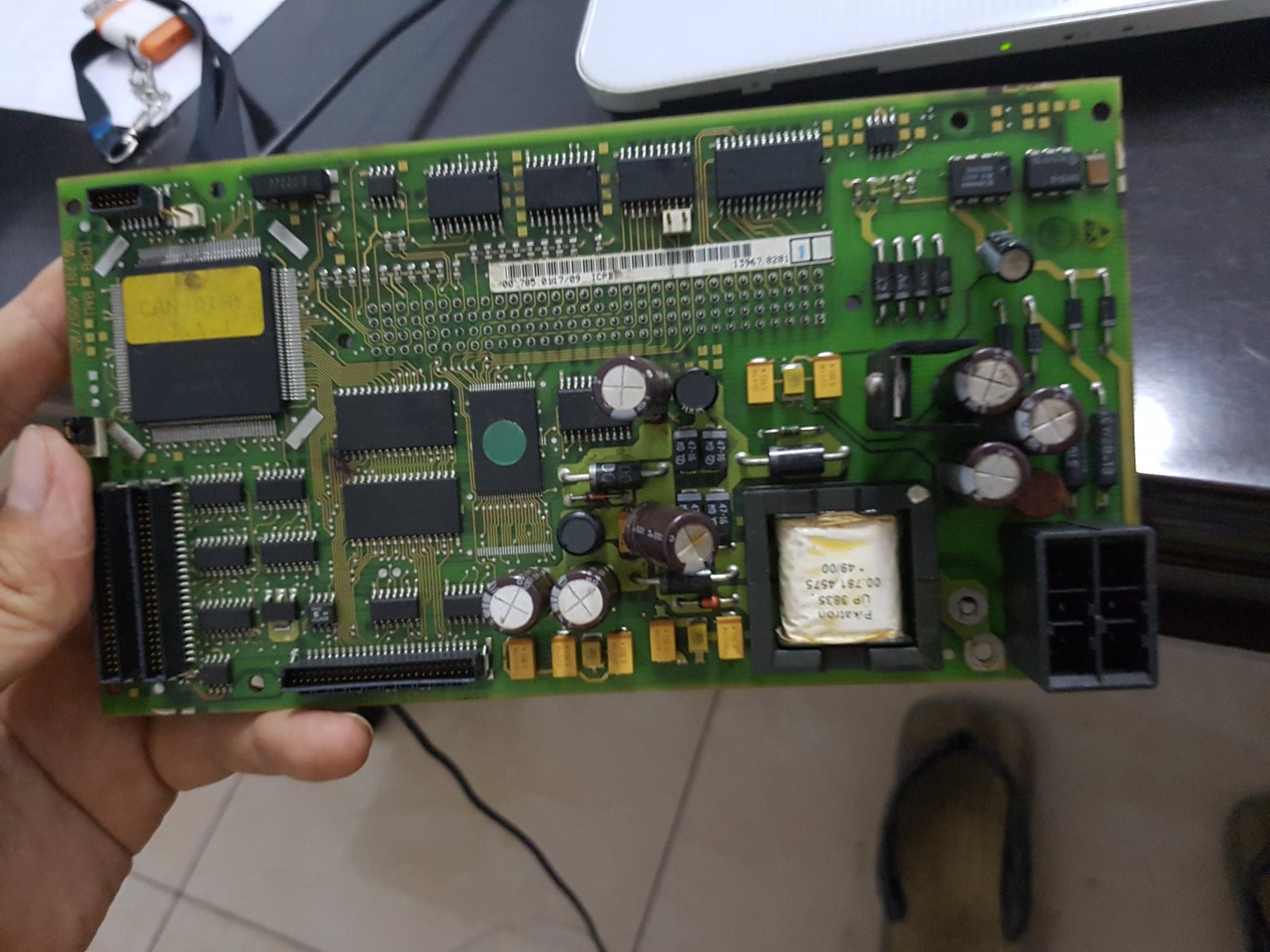

Flat module

00.785.0117

- Tên SP: Bản mạch

- HDM-Nr: 00.785.0117

- Ứng dụng: Heidelberg CD102, SM102

- Vị trí sử dụng: TKS CP.150.0232-001/08 = ICPB

- Xuất xứ: Heidelberg - Germany
