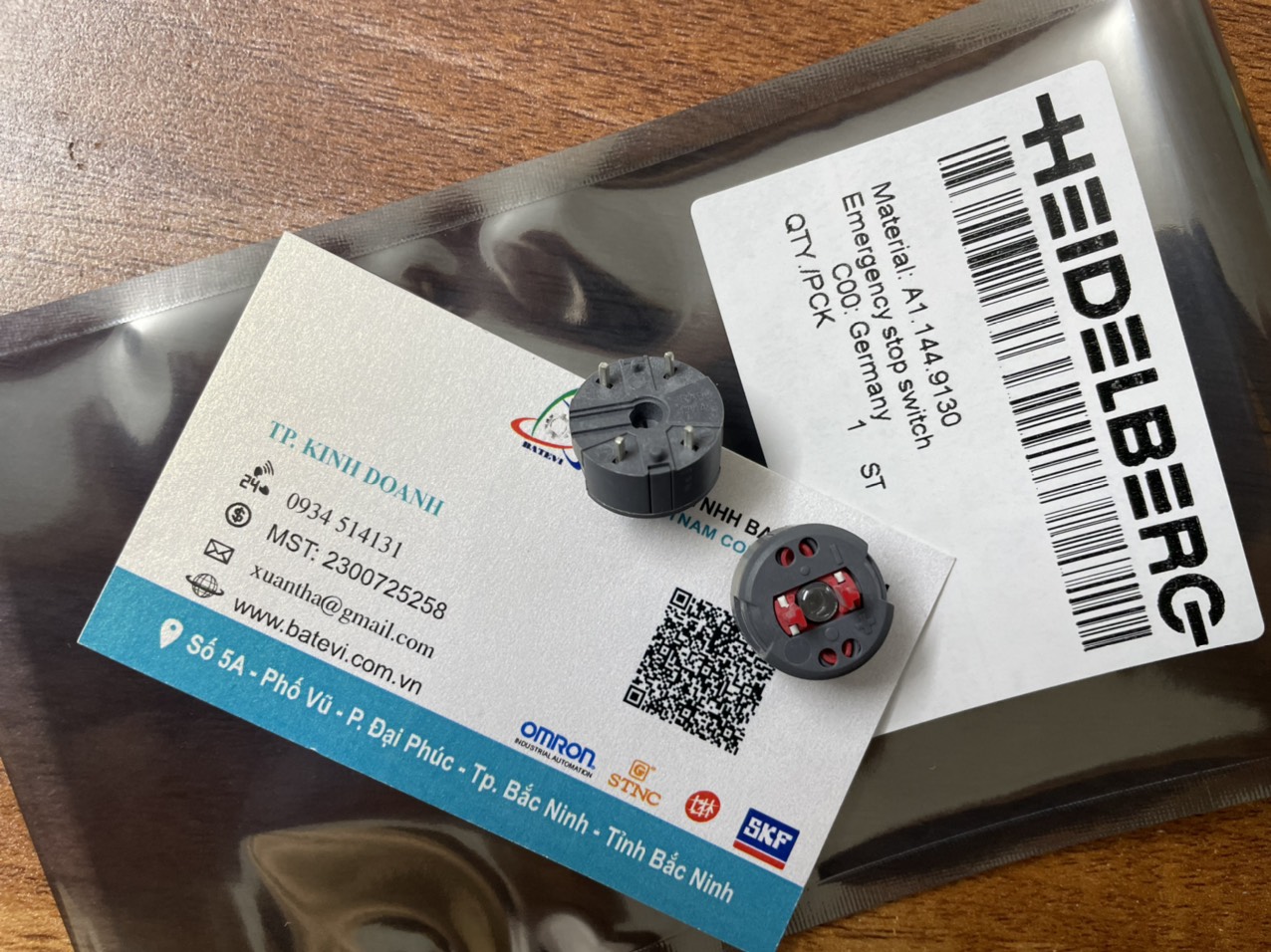

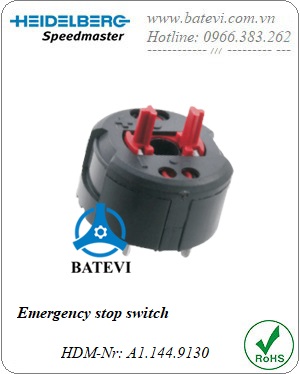

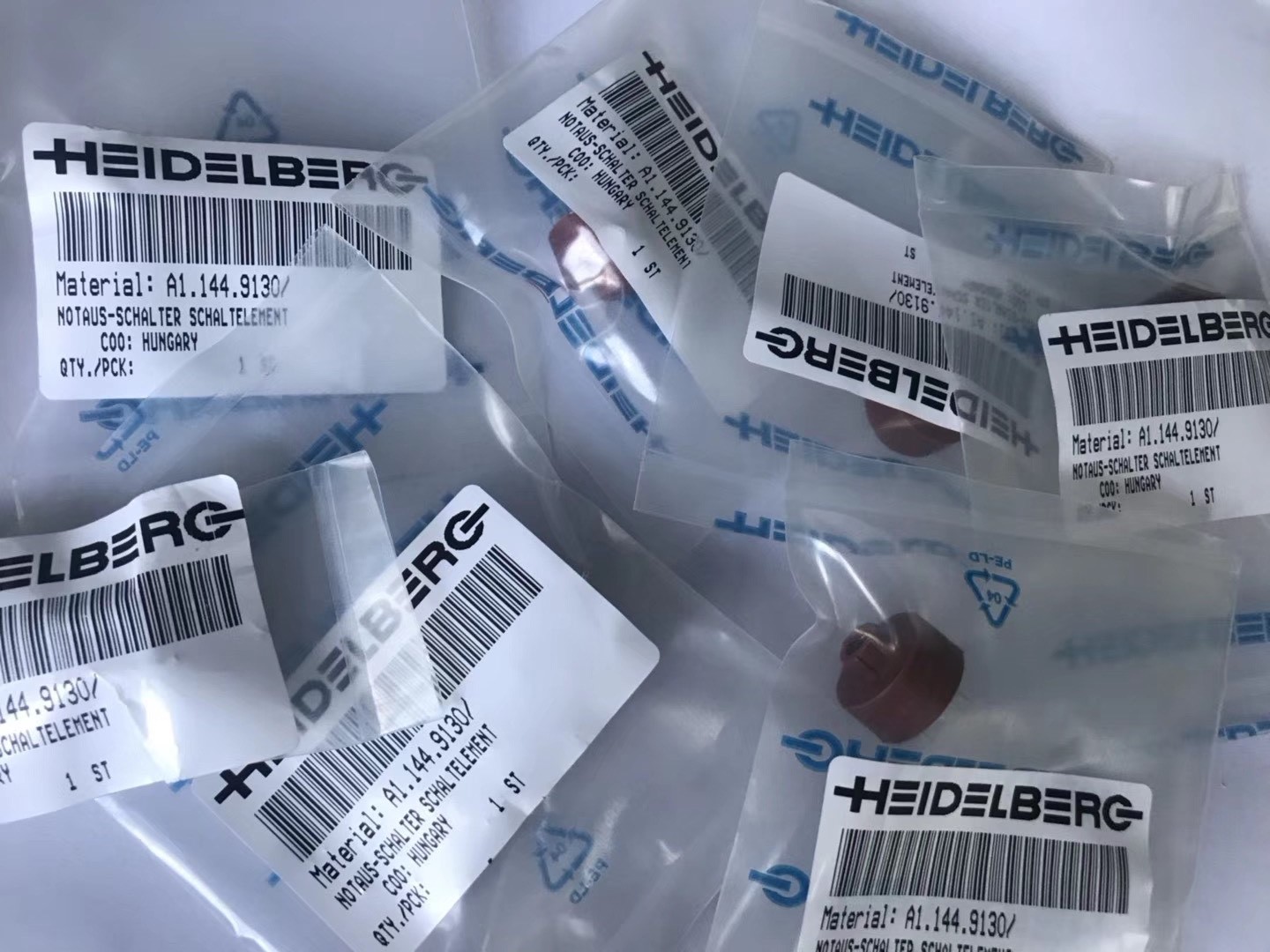

Emergency stop switch A1.144.9130

- Tên SP: Công tắc dừng khẩn cấp

- HDM-Nr: A1.144.9130

- Ứng dụng: Máy in Heidelberg CD102

- Vị trí sử dụng: TKS C2.147.6011-001/07 - 1.3

- Xuất xứ: Heidelberg - Germany

Emergency stop switch A1.144.9130
