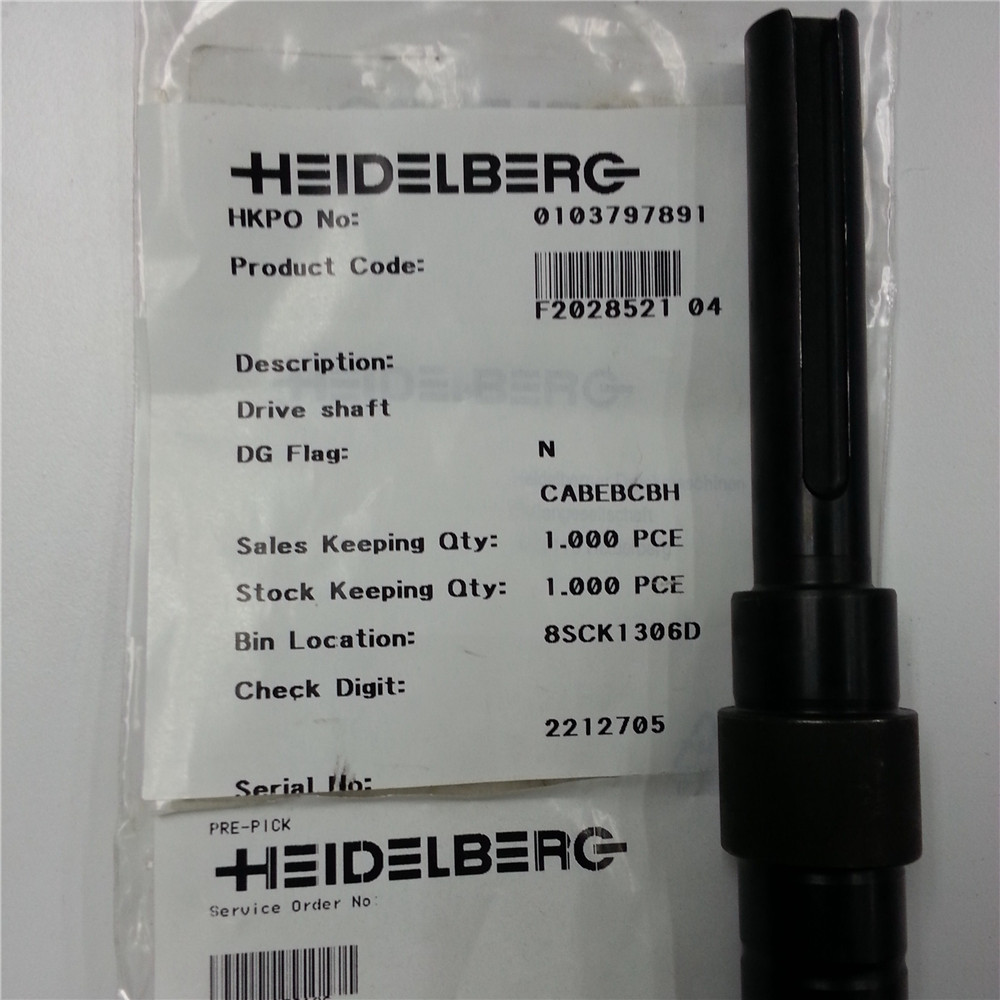

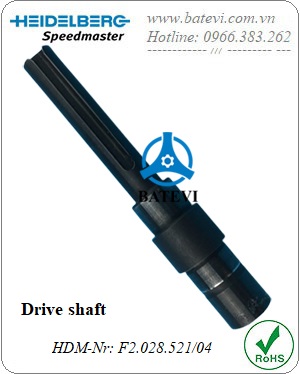

Drive shaft

F2.028.521/04

- Tên SP:  Trục truyền động

- HDM-Nr: F2.028.521/04

- Ứng dụng: Máy in Heidelberg CD102, SM102

- Vị trí sử dụng:  TKS F3.028.500 -003/04 = 19

- Xuất xứ: Heidelberg - Germany
