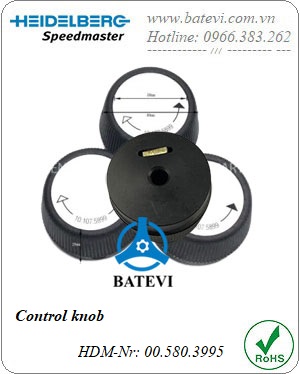

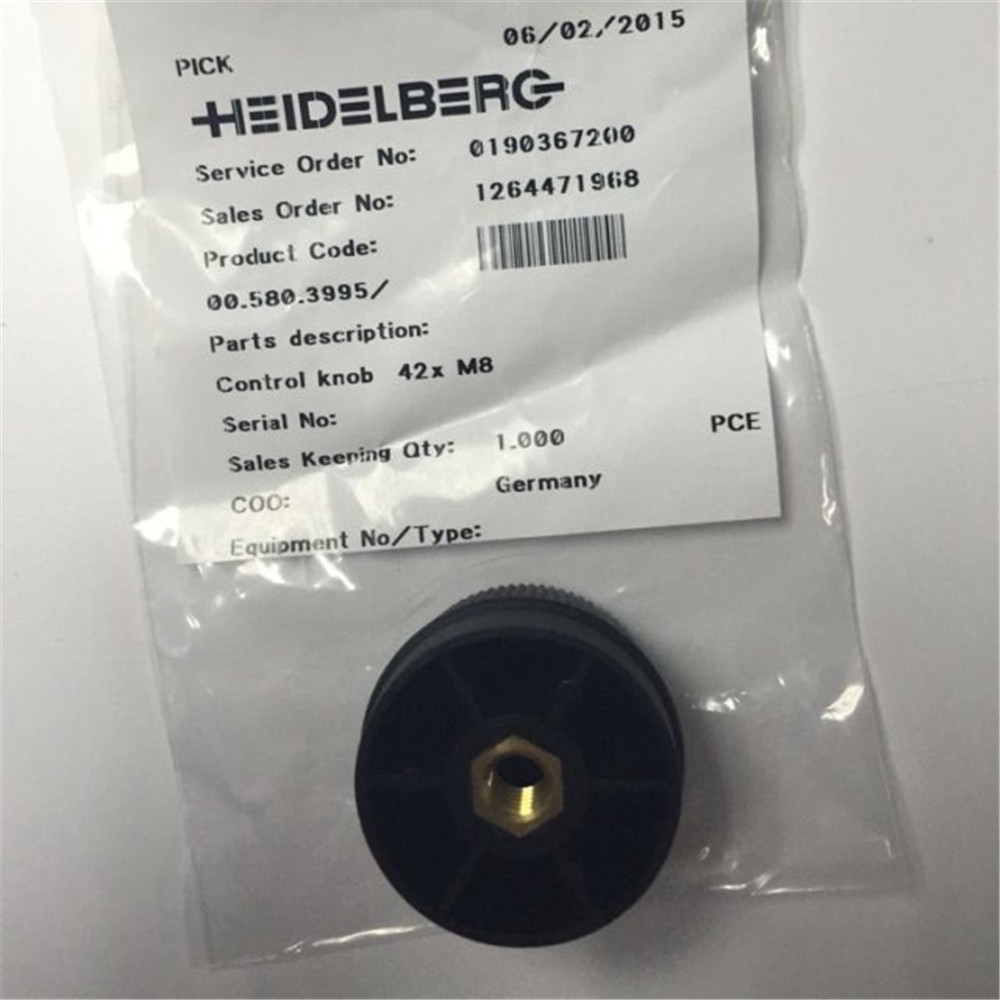

Control knob

00.580.3995

- Tên SP: Núm điều khiển

- HDM-Nr: 00.580.3995

- Ứng dụng: Máy in Heidelberg SM74

- Vị trí sử dụng: TKS L3.028.000 -005/01  - 28

- Xuất xứ: Heidelberg - Germany

Control knob 00.580.3995
