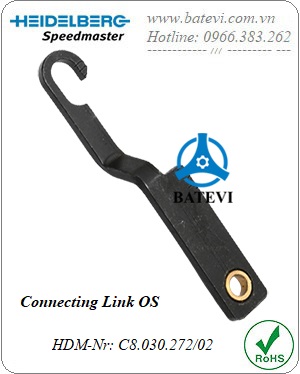

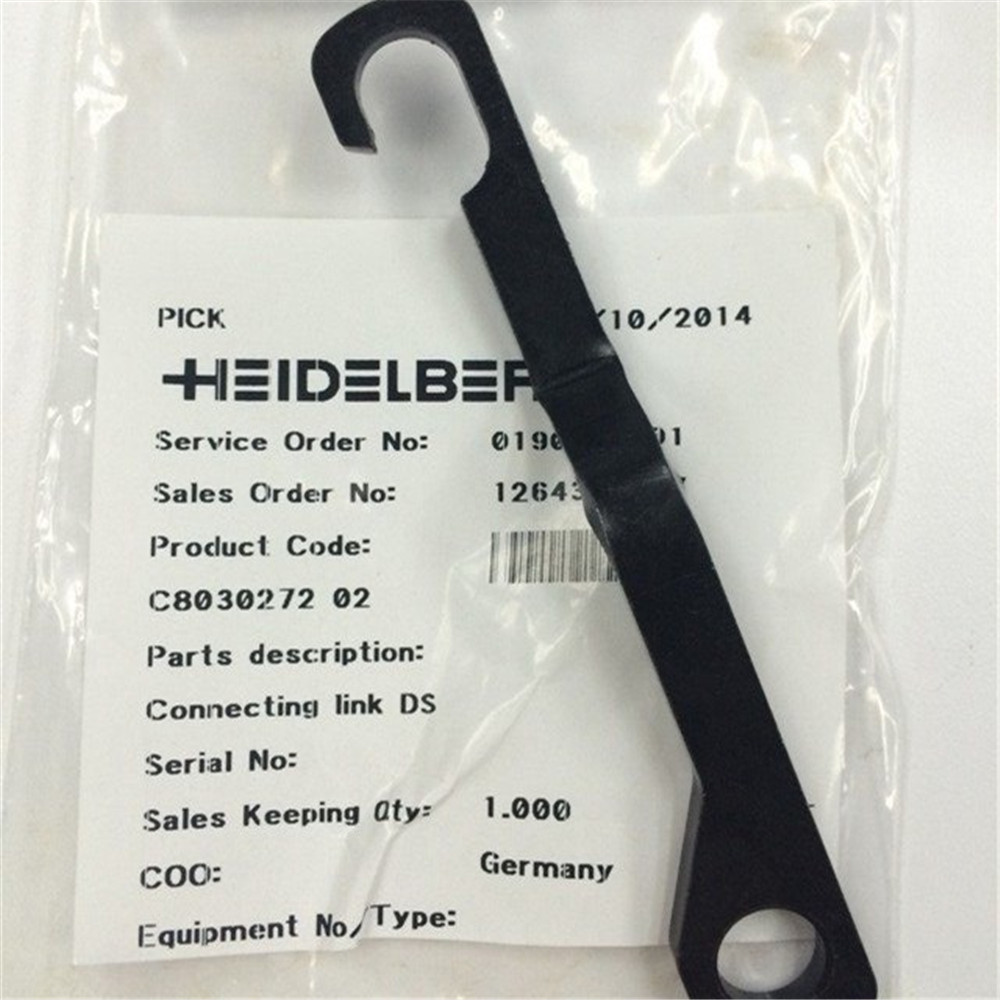

Connecting Link OS C8.030.272/02

- Tên SP:  Thanh nối OS

- HDM-Nr: C8.030.272

- Ứng dụng: Máy in Heidelberg CD102, SM102

- Vị trí sử dụng:  TKS 71.030.200 -008/09 = 9

- Xuất xứ: Heidelberg - Germany

Connecting Link C8.030.272/02

Connecting Link C8.030.273/02

Lever C9.015.816

Pin 91.015.305

Tension spring 66.072.108/01

Tension spring 66.072.108
