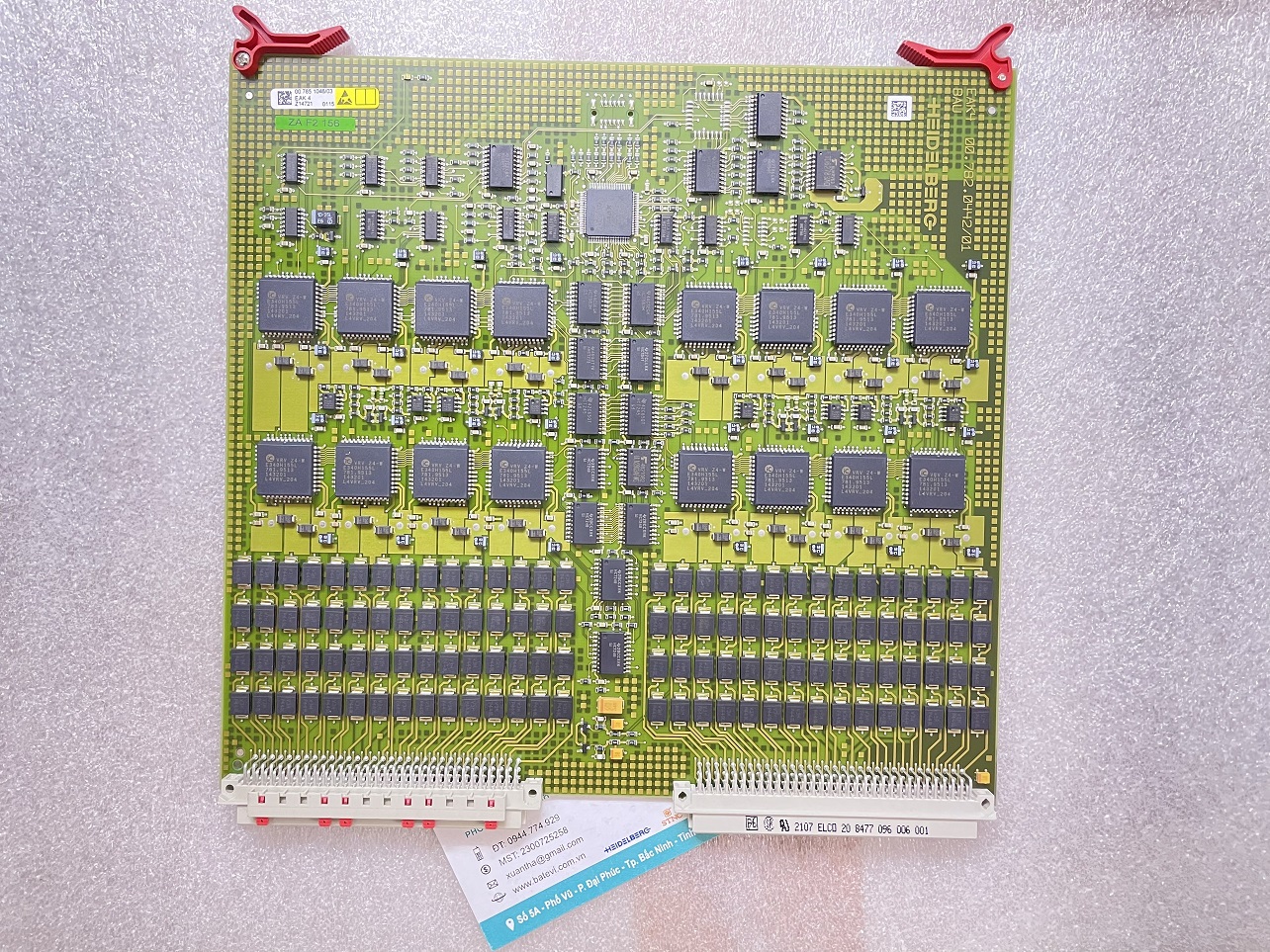

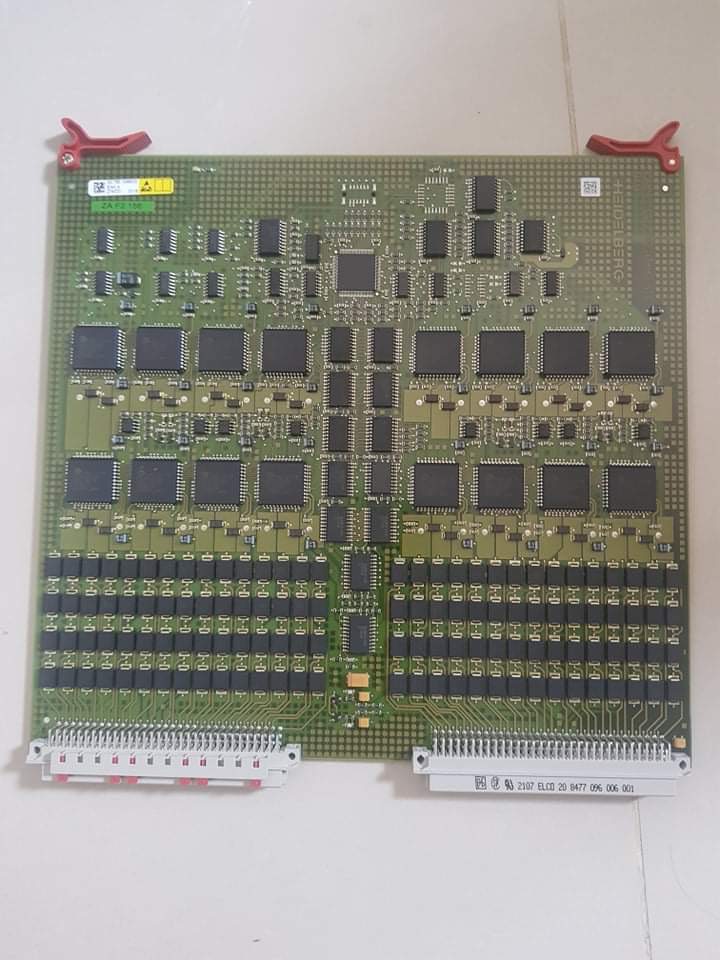

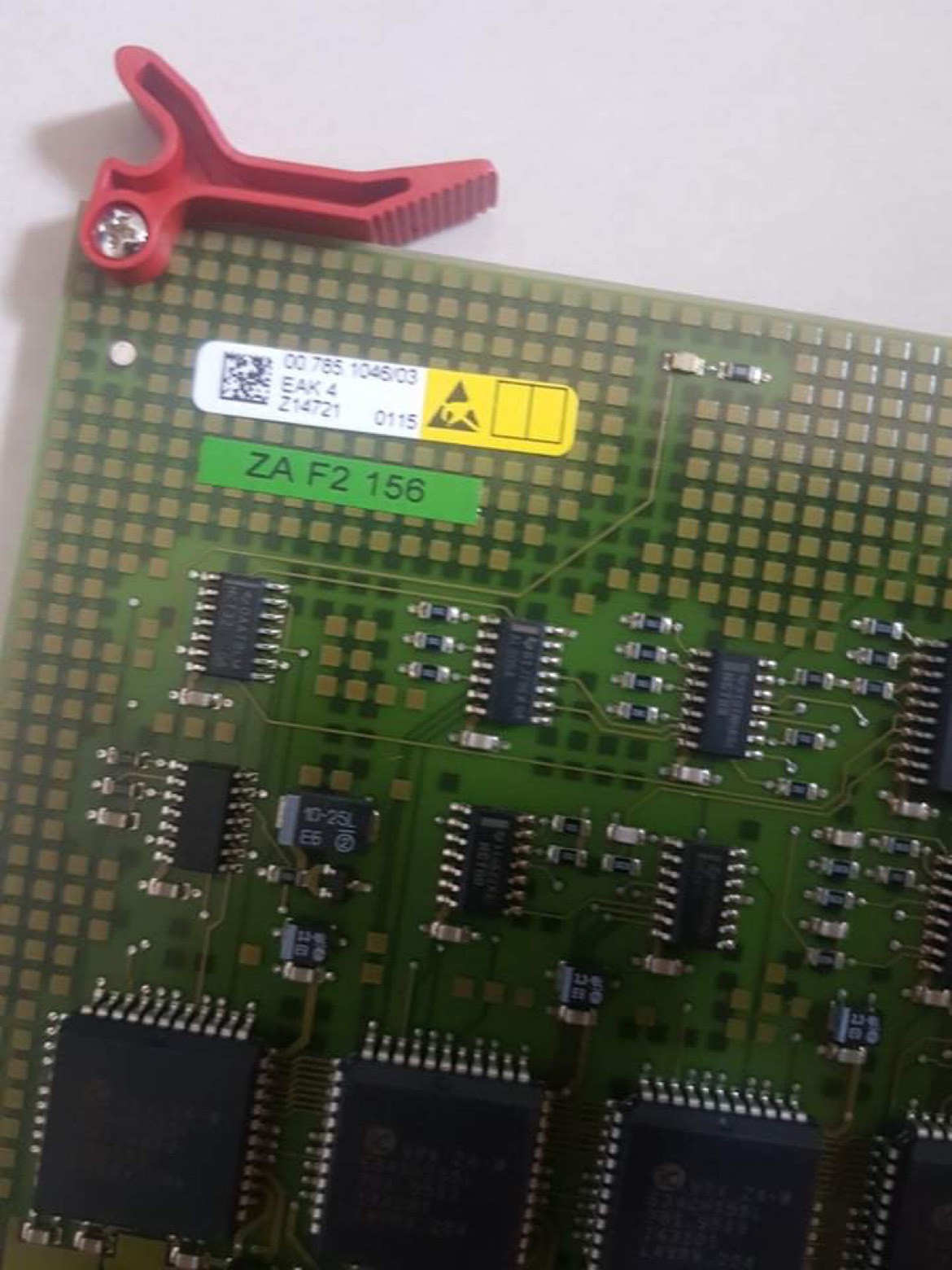

Circuit Board EAK4 00.782.0442

- Tên SP: Bản mạch EAK4

- HDM-Nr: 00.785.1046

  Mã cũ: 00.782.0442

- Ứng dụng: Máy in Heidelberg  CD102, SM74

- Vị trí sử dụng:   TKS CD.146.6001-001/11 - 91EAK4

- Xuất xứ: Heidelberg - Germany

Circuit Board 00.785.1046

Board 00.785.1046

Circuit Board EAK4 00.782.0442

Circuit Board 00.782.0442

Circuit Board EAK4
