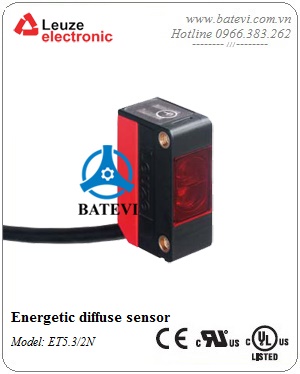

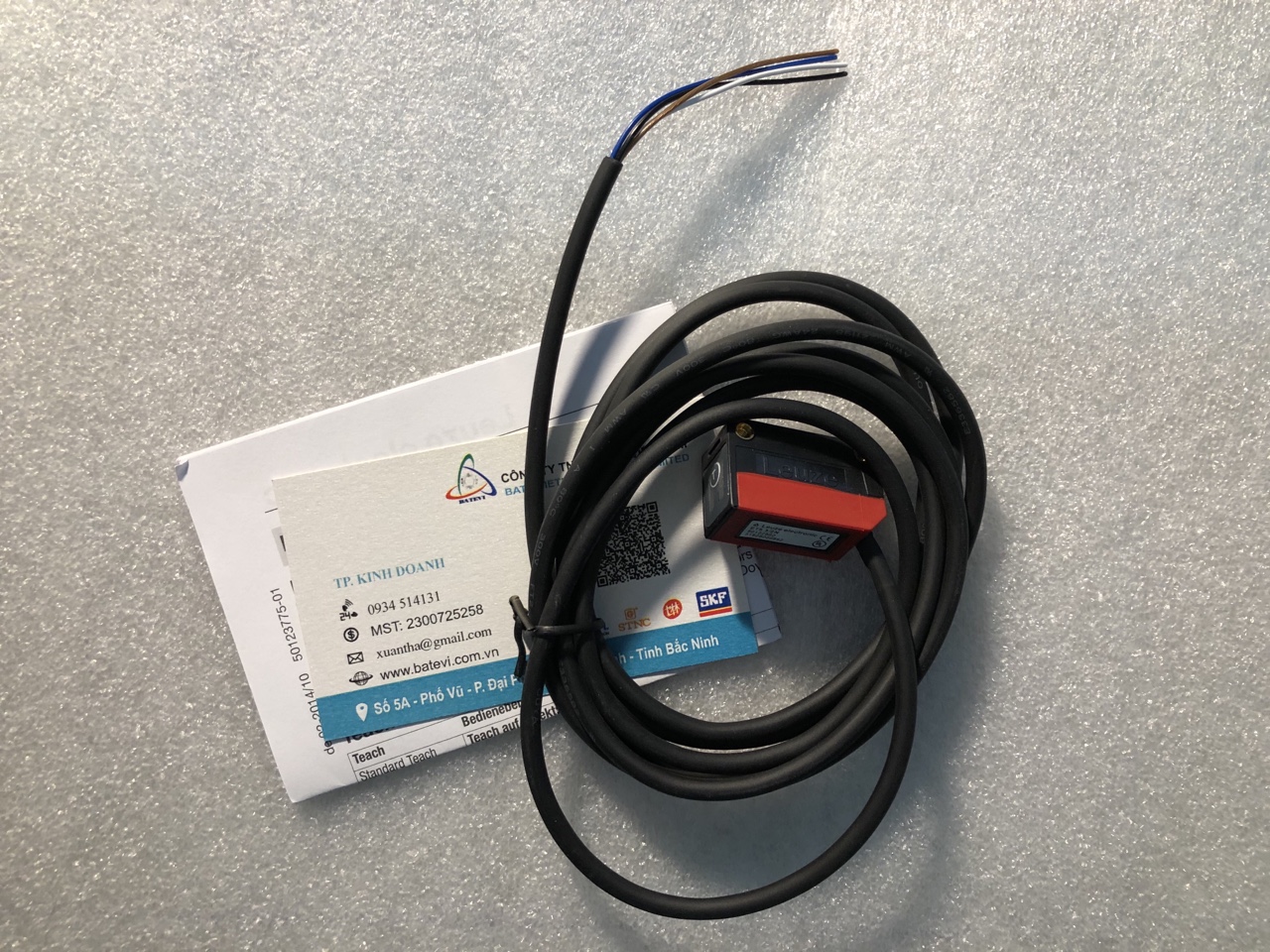

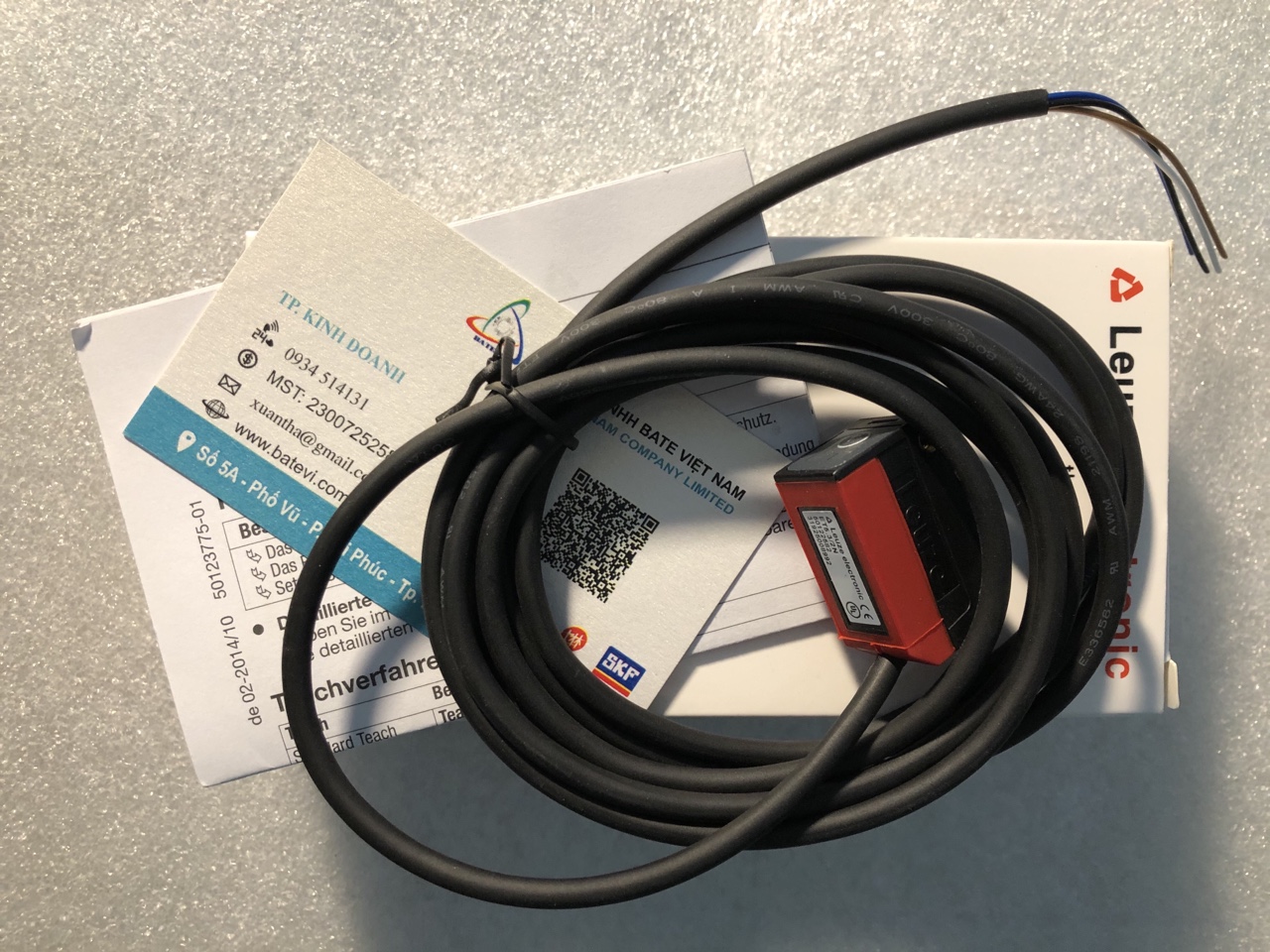

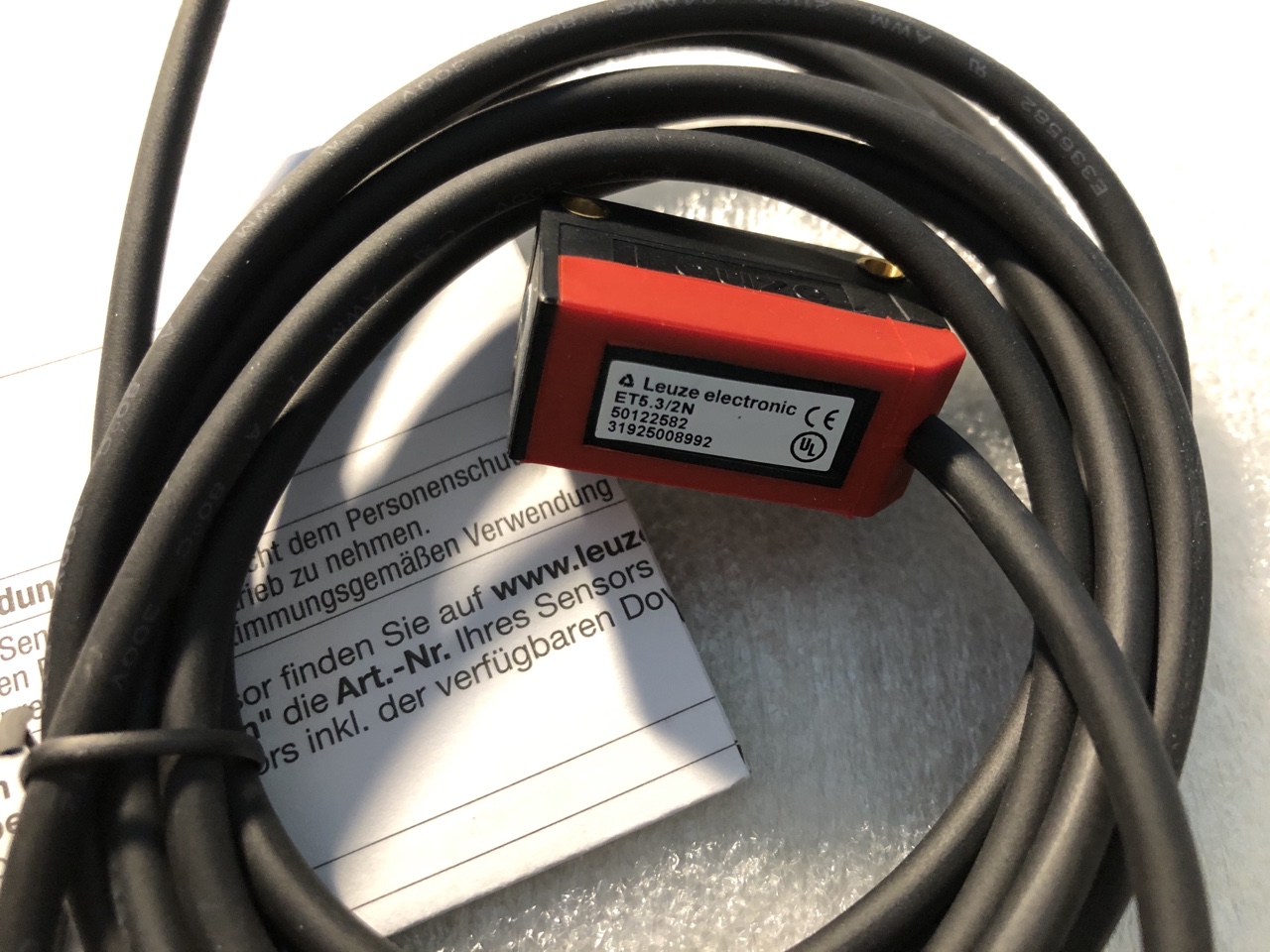

T5.3/2N - Energetic diffuse sensor

+

•

  • Basic data

    • Series5
    • Operating principleDiffuse reflection principle

  • Optical data

    • Operating range, white 90%0.001 ... 0.7 m
    • Operating range, gray 50%0.001 ... 0.59 m
    • Operating range, gray 18%0.003 ... 0.39 m
    • Operating range, black 6%0.005 ... 0.28 m
    • Operating range limit, white 90%0 ... 1 m
    • Operating range limit, gray 50%0.001 ... 0.85 m
    • Operating range limit, gray 18%0.003 ... 0.55 m
    • Operating range limit, black 6%0.002 ... 0.4 m
    • Light sourceLED, Red

  • Electrical data

    • Protective circuitPolarity reversal protection, Short circuit protected

    • Performance data

      • Supply voltage U_B10 ... 30 V, DC, Incl. residual ripple
      • Residual ripple0 ... 15 %, From U_B
      • Open-circuit current0 ... 20 mA

    • Outputs

      • Number of digital switching outputs2 Piece(s)

      • Switching output 1

        • Switching elementTransistor, NPN
        • Switching principleLight switching

      • Switching output 2

        • Switching elementTransistor, NPN
        • Switching principleDark switching

  • Timing

    • Switching frequency500 Hz
    • Response time1 ms

  • Connection

    • Connection 1

      • FunctionVoltage supply, Signal OUT
      • Type of connectionCable
      • Cable length2,000 mm
      • Number of conductors4 -wire

  • Mechanical data

    • Dimension (W x H x L)14 mm x 32.5 mm x 20.2 mm
    • Housing materialPlastic, ABS
    • Lens cover materialPlastic
    • Net weight70 g

  • Operation and display

    • Operational controlsTeach button

  • Environmental data

    • Ambient temperature, operation-40 ... 60 °C

  • Certifications

    • Degree of protectionIP 67
    • Protection classIII
    • Certificationsc UL US
    • Standards appliedIEC 60947-5-2
