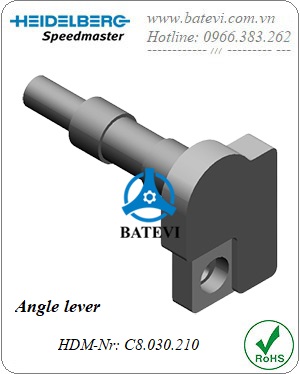

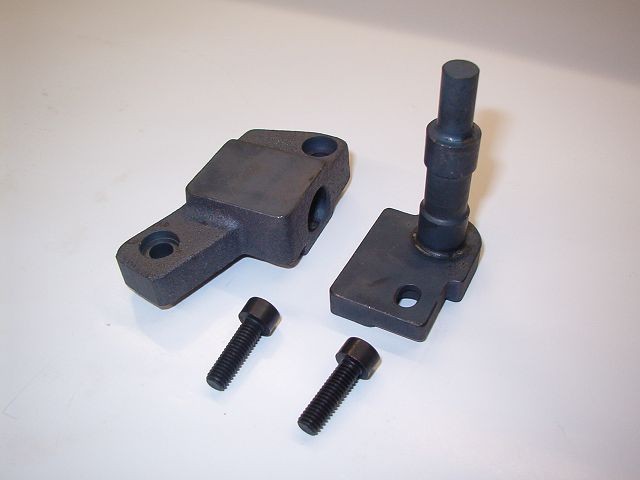

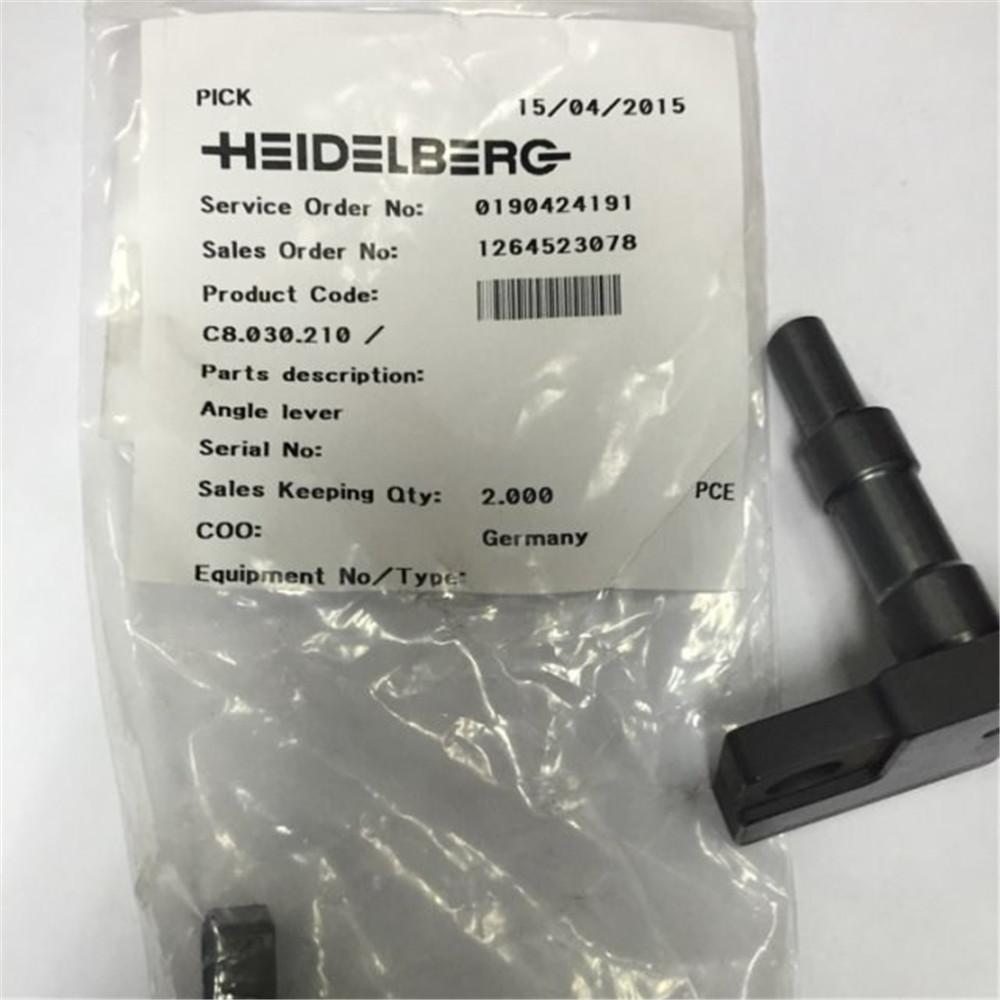

Angle lever C8.030.210

- Tên SP: Đòn bẩy góc·

- HDM-Nr: C8.030.210

- Ứng dụng: Heidelberg  CD102, SM102

- Vị trí sử dụng:  TKS 71.030.200 -006/07 = 8

- Xuất xứ: Heidelberg - Germany
