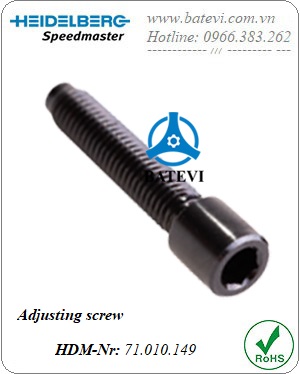

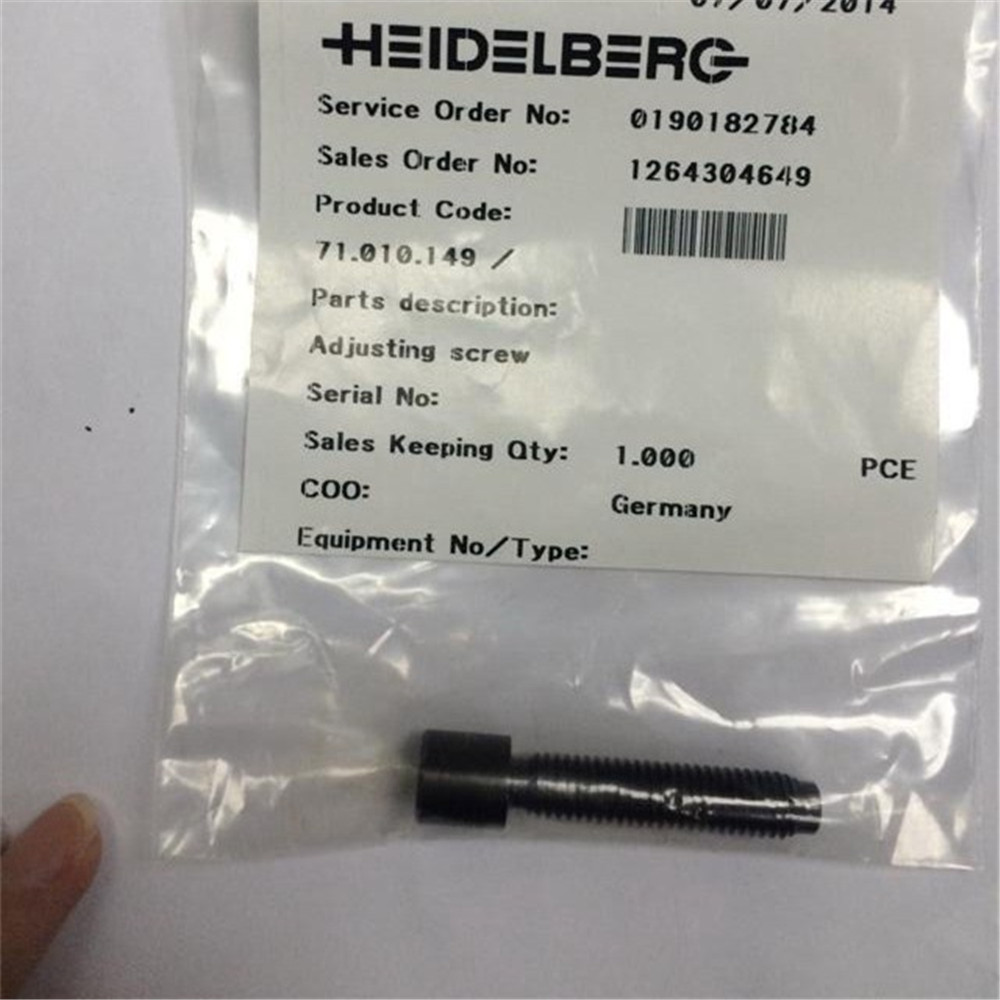

Adjusting Screw

71.010.149

- Tên SP: Vít điều chỉnh

- HDM-Nr: 71.010.149

- Ứng dụng: Máy in Heidelberg CD102, SM102

- Vị trí sử dụng:  TKS 82.010.000 -001/10 - 18

- Xuất xứ: Heidelberg - Germany
